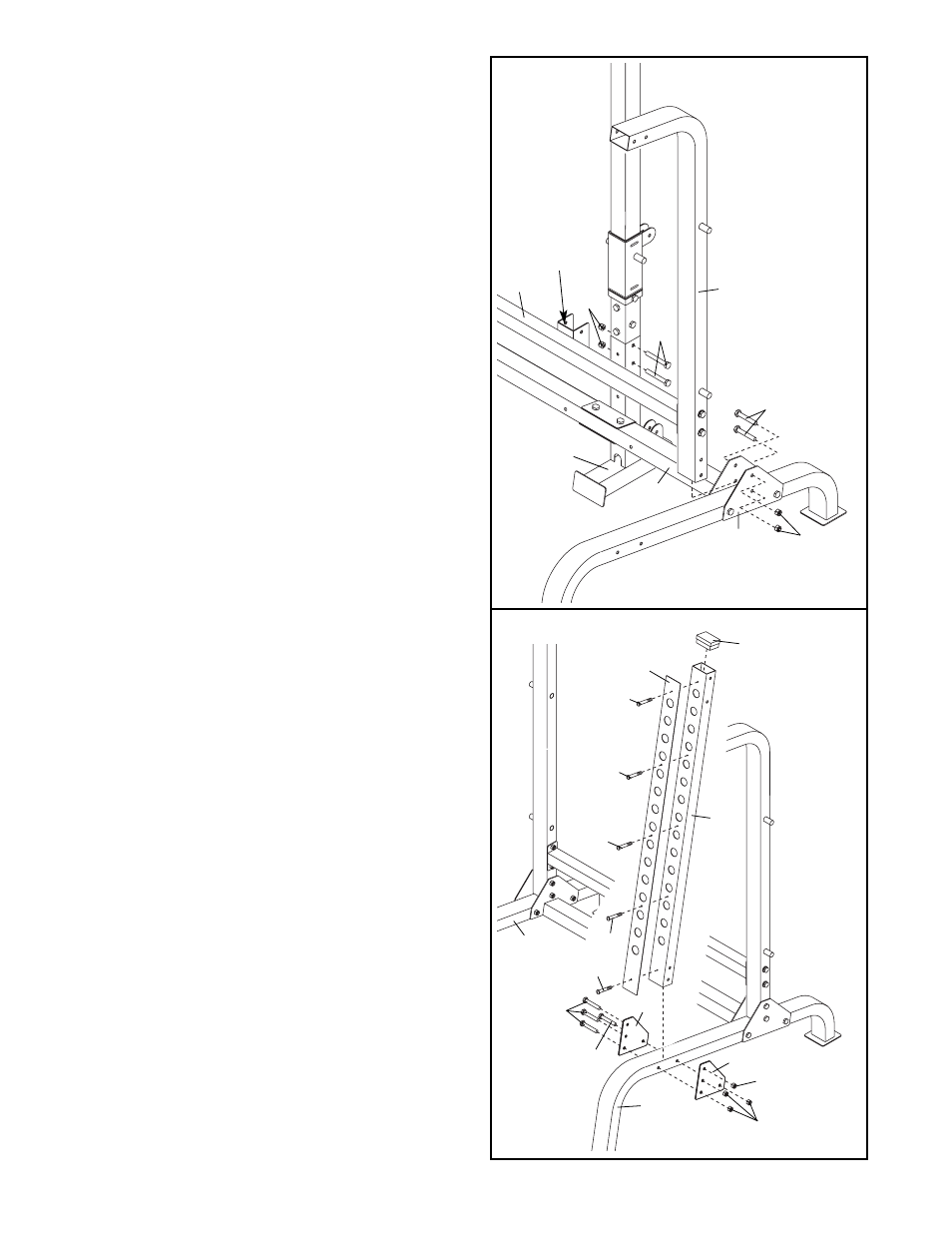

5. Attach the bracket on the Top Crossbar (9) to the
Lat Tower Base (3) with two M10 x 78mm Bolts
(41) and two M10 Nylon Locknuts (32). Do not
tighten the Locknuts yet.
Attach the Left Rear Upright (4) to the Bottom
Crossbar (2) with two M10 x 94mm Bolts (34), a
Large Joint Plate (14), and two M10 Nylon
Locknuts (32). Do not tighten the Locknuts yet.
Attach the Right Rear Upright (not shown) to
the Bottom Crossbar (2) in the same manner.
5
4
32 14
2
34
32
9
Bracket
3
41
6. Press a 51mm x 76mm Inner Cap (24) into the
top of a Front Upright (6). Attach an Upright
Cover (7) to the Front Upright with five M4 x
16mm Screws (42).
Attach the Front Upright (6) to a Base (1) with
four M10 x 94mm Bolts (34), two Small Joint
Plates (15), and four M10 Nylon Locknuts (32).
Do not tighten the Locknuts yet.
Repeat this step with the other Front Upright
(not shown) and the other Base (1).
6
24
7
6
42
42
42
42
42
15 34
34
1
1
32
32
15
