Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)
14
Tape backup
Device Expansion Unit
[N8141-41F]

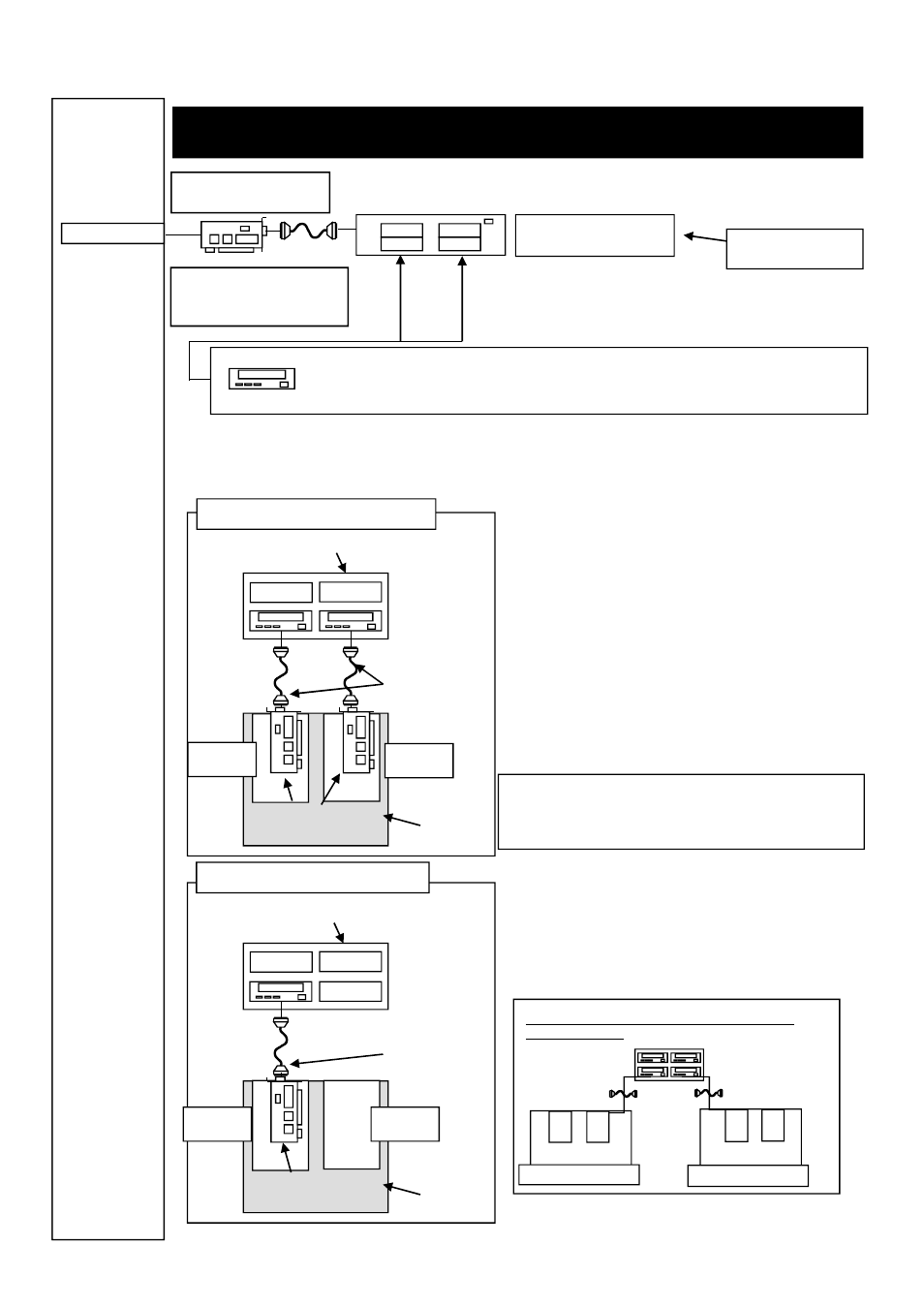

Double backup configuration
Device Expansion Unit
[N8141-41F]
Single backup configuration
FT server
FT server
When two servers share a Device Expansion
Unit [N8141-41F]
CPU/IO
module #0
CPU/IO
Module #1
CPU/IO
Module #0
CPU/IO
Module #1
Device Expansion Unit
[N8141-41F]
[Notes for single backup]
Configure 1 set of SCSI controller/SCSI cable/Backup
device. In case a CPU/IO module or backup device fails,
backup is not possible until the failed part is repaired or
replaced.
[Notes for double backup]
(1)Backup job
There are the following notes for double backup
configuration.
Configure 2 sets of SCSI controller/SCSI cable/Backup
device. Two backup devices are recognized separately by
OS.
When automatically backup by a job, make a job for each
backup device so that each device can backup. In case one
device fails, the other backup device can backup.
(2) Note for BrightStor ARCserve backup
When making a job, backup is not performed if you put [*]
in the [group] of destination tab.
Be sure to configure two backup jobs with setting the
device group at the group on the destination tab and the
media definition as
“*” or the name of the media.
N8151-51A
Built-in DAT(DAT72)(36GB)
N8151-59
Built-in LTO(200GB)
N8151-76
Built-in LTO(400GB)
R320a-E4,R320b-M4
R320a-E4,R320b-M4
SCSI cable
1m [K410-94(01)]
2m [K410-94(02)]
SCSI cable
[K410-94(01)]
[K410-94(02)]
SCSI cable
[K410-94(01)]
[K410-94(02)]
PCI-Ex slot
CPU/IO module#0
SCSI
controller
SCSl controller
[N8803-036]
SCSI
controller
Power Unit
[N8181-54F]
