Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)
11

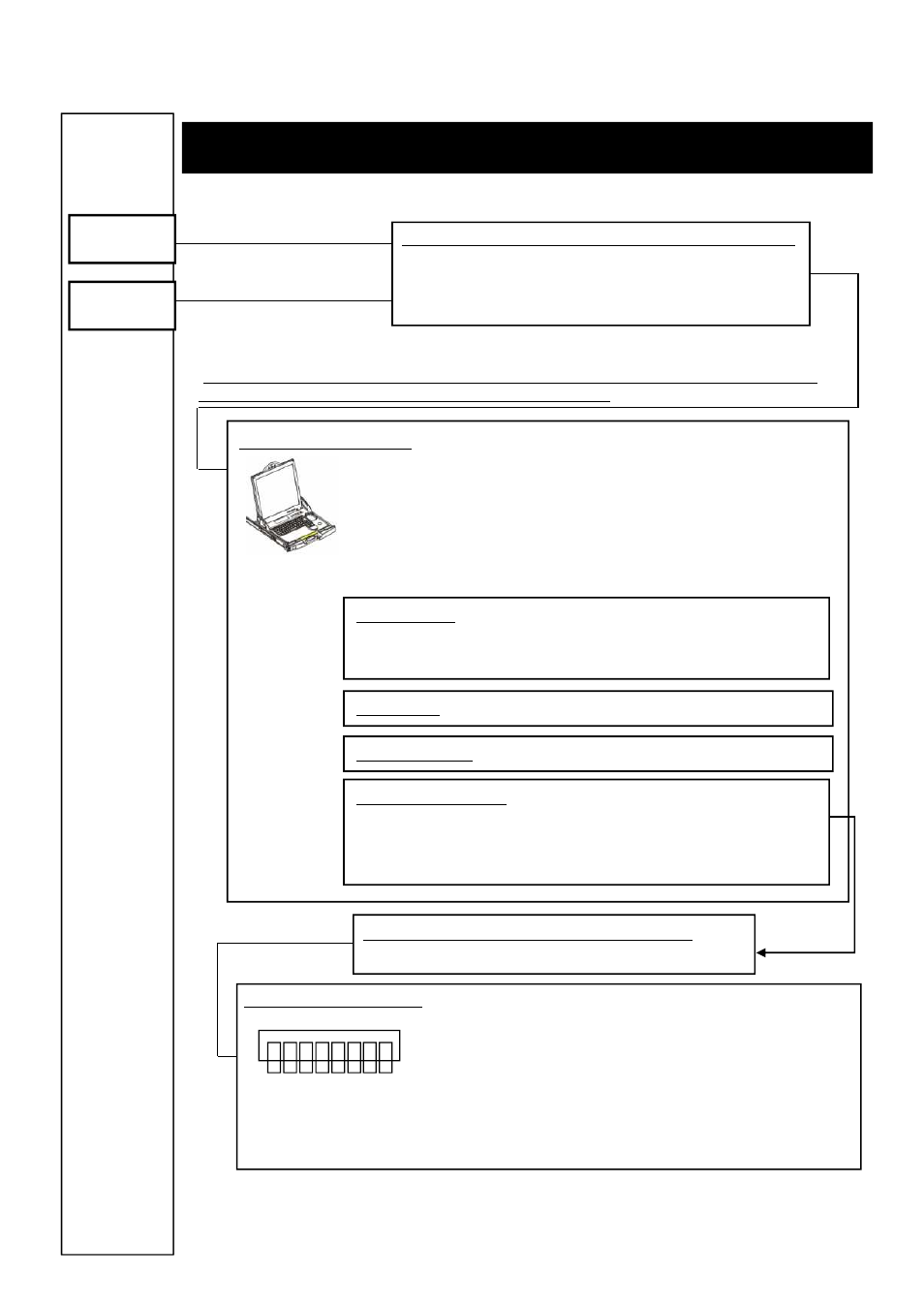

17 inch LCD console unit
Server Switch Unit
- Server Switch Unit (8 ports) [N8191-10F]
•The 17-inch LCD Console Unit [N8143-69F] allows the connection of up to 64
servers by cascading eight Server Switch Units [N8191-10F].
•The 17-inch LCD Console Unit [N8143-69F] does not support other SSUs [N8191-
09F/-09AF].
LCD Console Unit
A 17-inch LCD, keyboard, mouse, and Server Switch Unit (x8)
are integrated into the 1U LCD Console Unit.
- 17-inch LCD Console Unit (1U/8port) [N8143-69F]
Consists of the following components:
Switch Unit Connection Cable Set (1.8m)
[K410-119(1A)]
Keyboard
(no ten-key numeric keypad)
Optical Mouse
Switch Unit Connection Cable Set (1.8m/3m/5m)
[K410-118(1A)] (1.8m)
[K410-118(03)] (3m)
[K410-118(05)] (5m)
17-inch LCD
1280x1024 max. Full color
•Up to eight servers can be connected directly to the LCD console unit. Use optional
Server Switch Units to connect more than eight servers.
USB
Interface
D-sub 15pin
Interface
Server Switch Unit
- Supports up to eight servers.
- Allows the connection of up to 64 servers by cascading the Server
Switch Units [N8191-10F].
