9

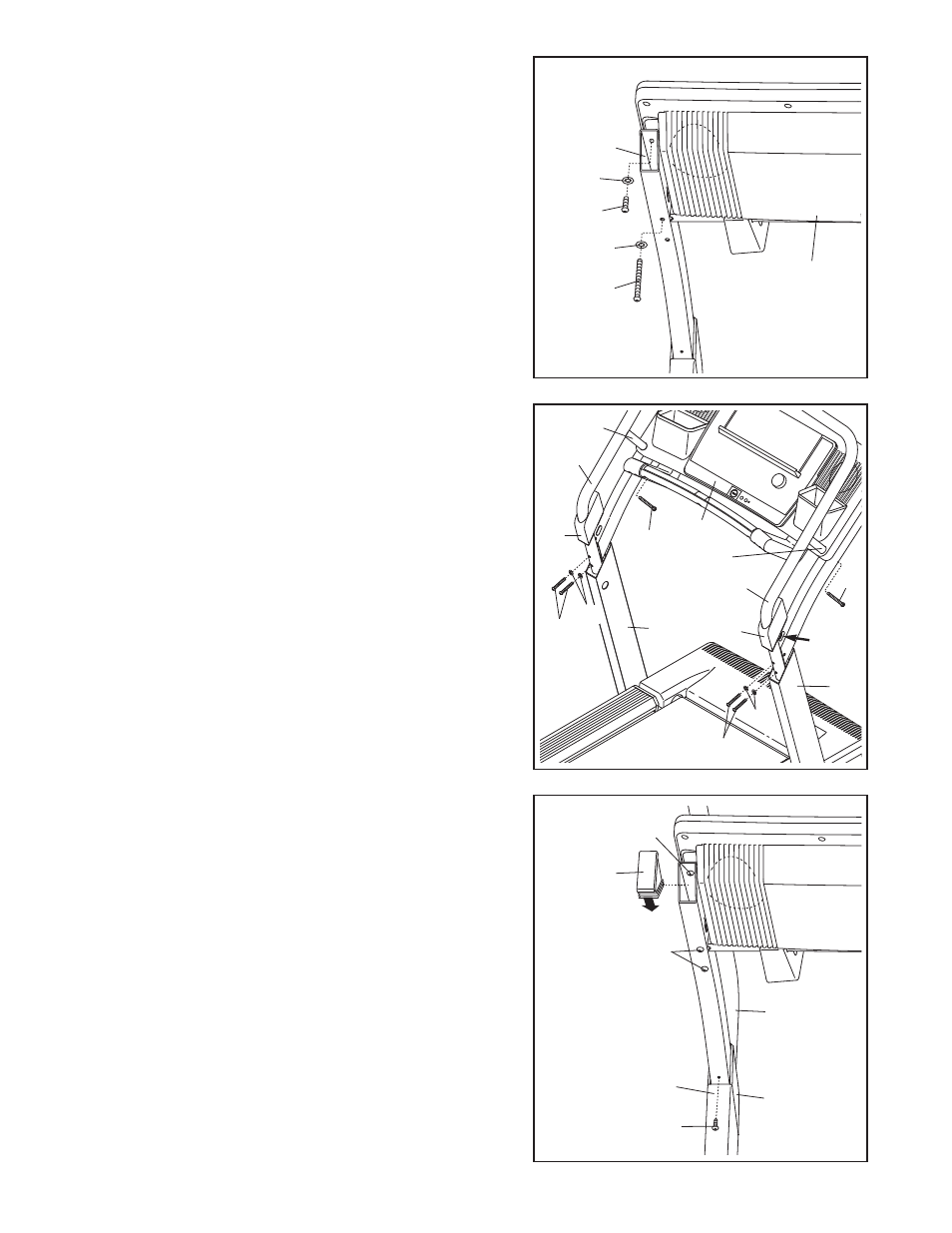

8. Set the console assembly on the Upright Base (85). Make
sure that no wires are pinched. Finger tighten a
Console Bolt (72) with a Star Washer (67) into the lower
hole in each side of the Upright Base (only one side is
shown).
Next, finger tighten a Short Console Bolt (112) with a Star
Washer (67) into the upper hole in each side of the
Upright Base (85) (only one side is shown).
Be careful
not to drop the Short Console Bolts into the Upright
Base. Do not tighten the Short Console Bolts yet.
112
85
67
67
72
8
Console
Assembly
10. Firmly tighten the Console Bolts (72) and the Short
Console Bolt (112). Firmly tighten the four Handrail
Bolts (66) (see step 9).
Press the Upright Cover (75) onto the right Upright Base
(85). Attach the Upright Cover with a 3/4” Screw (7).
Insert an Upright Endcap (71) into the top of the right
Upright Base (85). Note: Insert the end of the Upright
Endcap indicated by the arrow first; use a rubber mallet if
necessary.
Repeat this step on the other side (not shown).
85
75
7
72
112
70
71
10
9. Slide the two Upright Covers (75) onto the ends of the
Handrails (68, 70). Set the Handrails (68, 70) on the
Console Front (98).
Make sure that the posts on the
Handrails are set in the holes in the Console Front.
Insert a Console Bolt (72) into the bottom of the right
Upright Base (85) and
loosely thread the Upright Bolt into
the post on the Right Handrail (70). Repeat with the Left
Handrail (68).
Align the holes in the lower ends of the Handrails (68, 70)
with the holes in the Upright Base (85).
Do not cut the in-
dicated tie.
Loosely thread four Handrail Bolts (66) with four Star
Washers (67) into the Handrails (68, 70) and the Upright
Base (85).
Start all four Handrail Bolts but do not
tighten them yet.
85
85
72
72
75
68
70
98
Post
Post
66
67
66 75
9
67
Do Not
Cut
