22

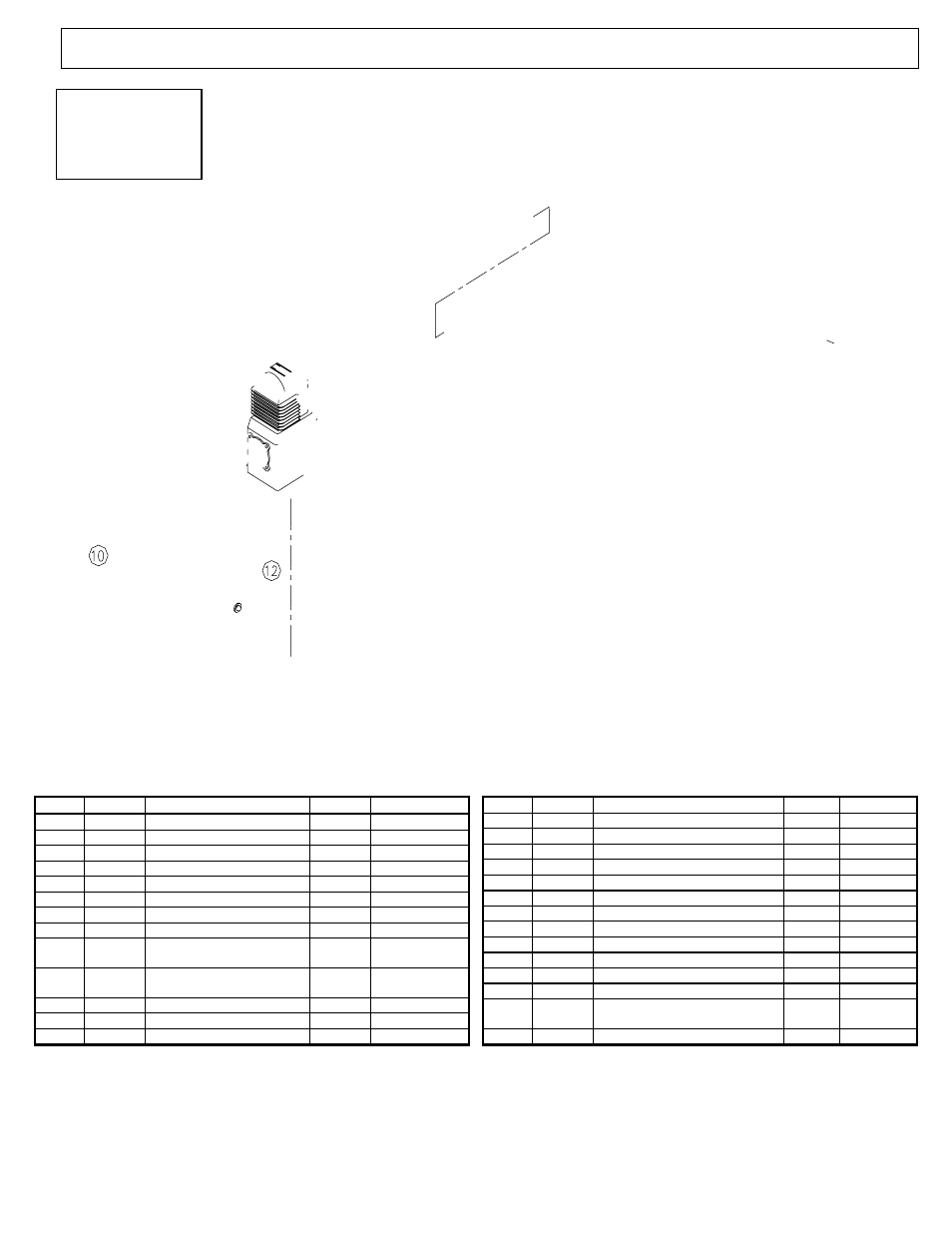

Parts Explosion

REF# PART# DESCRIPTION

QTY

MODEL

1 38569

Base

1

all

2 38573

Handle

1

all

3 38574

Leg

1

all

4 2215

Rubber

Foot

2

all

5 2278

Wheel

2

all

6 777111

Grommet

5

all

7 38509

Gun

Hook

2

all

8 38510

Hose

Hook

1

all

9

60599
38522

Honda GC 160
Honda GC 190

1
1

1577541
1577542

10

38514

779404

Comet VRX Pump
Comet BXD 2527G Pump

1
1

1577541
1577542

11

777913

QC 3/8 male nipple

1

1577542

12 4027

Filter

washer

1

all

13 38570

Warning

Decal

1

all

REF# PART# DESCRIPTION

QTY

MODEL

14 32538

Instruction

Decal

1

all

15

82230

¾” x 4” Bolt

2

all

16 82040

¾”

Nut

4

all

17 82041

¾”

Lock

washer

2

all

18

777165

Chemical hose

3 ft

all

19 2212

Chemical

strainer

1

all

20

38530

Nozzle 2 pack, #3.0

1

all

21 779166

Lance

1

all

22

777904

Nozzle quick coupler

1

all

23 38527

Spray

gun

1

all

24

313107

Hose quick Coupler

1

all

25

777915

Hose Quick Couple Nipple

1

all

26 38524

5/16” x 25’ Gray high
pressure hose

1 all

27

777914

Hose quick Coupler

1

all

Item Numbers:
1577541,
1577542
Revision F

01855
