IDENTIFICATION OF CONTROLS
Introduction Chapter 1

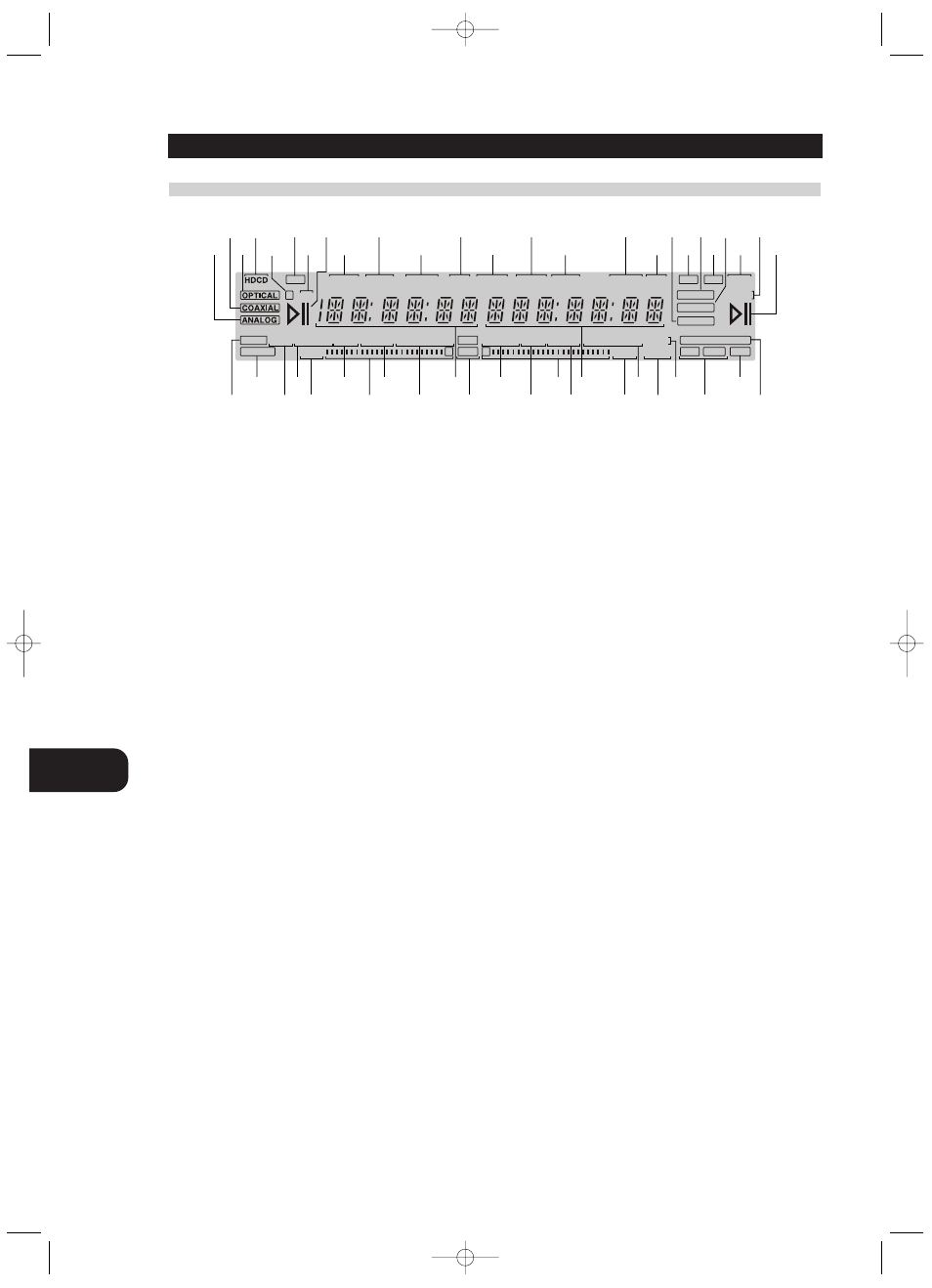

INFORMATION DISPLAY
F CD
MP3 TRACK TOTAL REMAIN TIME A DRLC TRACK TOTAL REMAIN TIME
SYNC
MANUAL
RECORD CD-RW
MP3 HDCD SRC
DUAL SCAN RANDOM PROG REPEAT
SINGLE
CDP
CDR OVER R L
COPY PROHIBIT SCAN RANDOM PROG REPEAT 1A-B ALL CD’S 1A-B ALL CD’S
1TR X2 X4 DUB DISC OVER
3 1
4 2
5
6
7
8
9
10
11
12
13
9
10
11
12
14
15 6
16 17
4 8
18
19 21
20 22
23 25
24 28 26 26
31 28
29
29 27
30
24
27
22
32
25
30
33
1 ANALOG Lights when signal from analog jacks is selected as
source.
2 COAXIAL Lights when signal from coaxial jacks is selected as the
source.
3 OPTICAL Lights when signal from optical jack (on the front panel or
rear panel) is selected as the source.
4 HDCD Lights when a HDCD disc is playing in the CD deck.
5 F Lights when the front optical input has been selected.
6 MP3 Lights when a MP3 disc is playing in the CD deck.
7 CD Lights when a conventional audio CD is playing in the CD deck.
8 Play/Pause indicator Indicates the status of the individual CD
decks.
9 TRACK Lights when the information display shows the running
time of the individual track being played.
10 TOTAL Lights when the information display shows the total time of
all tracks on a disc.
11 REMAIN Lights when the information display shows the time
remaining on a disc.
12 TIME Lights in conjunction with one of the time indicators TRACK,
TOTAL, REMAIN, to show which of the time status mode is active.
13 ADRLC This indicator lights when the unit is recording and the
ADRLC function has been selected and activated.
14 MANUAL This indicator lights when the automatic method of
incrementing tracks is not selected for a recording session.
15 SRC Lights when the Sample-Rate Converter is in use.
16 RECORD Lights when making a recording and flashes while
preparing to make a recording.
17 SYNC Lights when the unit has been programmed for a CD sync
recording.
18 CD-RW Indicates the type of disc in the record deck. When a CD-R
disc is in use, only “-R” is lit. When a CD- RW disc is in use, “-RW”
is lit.
19 COPY PROHIBIT Lights when a recording is not possible due to the
Serial Copy Management System (SCMS).
20 DISC, DUB (DUBBING) Lights when a dubbing is in progress
between the two CD decks.
21 1TR, DUB These indicators show the status of dubbing.
22 SCAN Indicates during Intro scan play.
23 X2 X4 Indicates which speed has been selected for dubbing
recordings.
24 1 A-B ALL CD’S Displays the type of repeat function being used.
25 OVER Lights when recording level is excessive during analog
recording.
26 Status display Displays the disc playing time and messages about
the discs recordings.
27 REPEAT Lights when a repeat function is being used.
28 Level indicators Displays the input/output level during an analog
recording.
29 PROGRAM Lights when one of the CD decks is being programmed
for playback options.
30 RANDOM Lights when random playback has been programmed for
one of the CD decks.
31 CDP, CDR These indicators show which deck the level indicators are
responding to.
32 SINGLE Lights when the unit is playing in single mode.
33 DUAL Lights when the unit is playing in dual mode.
