29
DVI
OUT
HDMI
ANTENNA
75
L
R
IN2 IN1
....
....
DVI
AUDIO
1
2
3
DIGITAL AUDIO

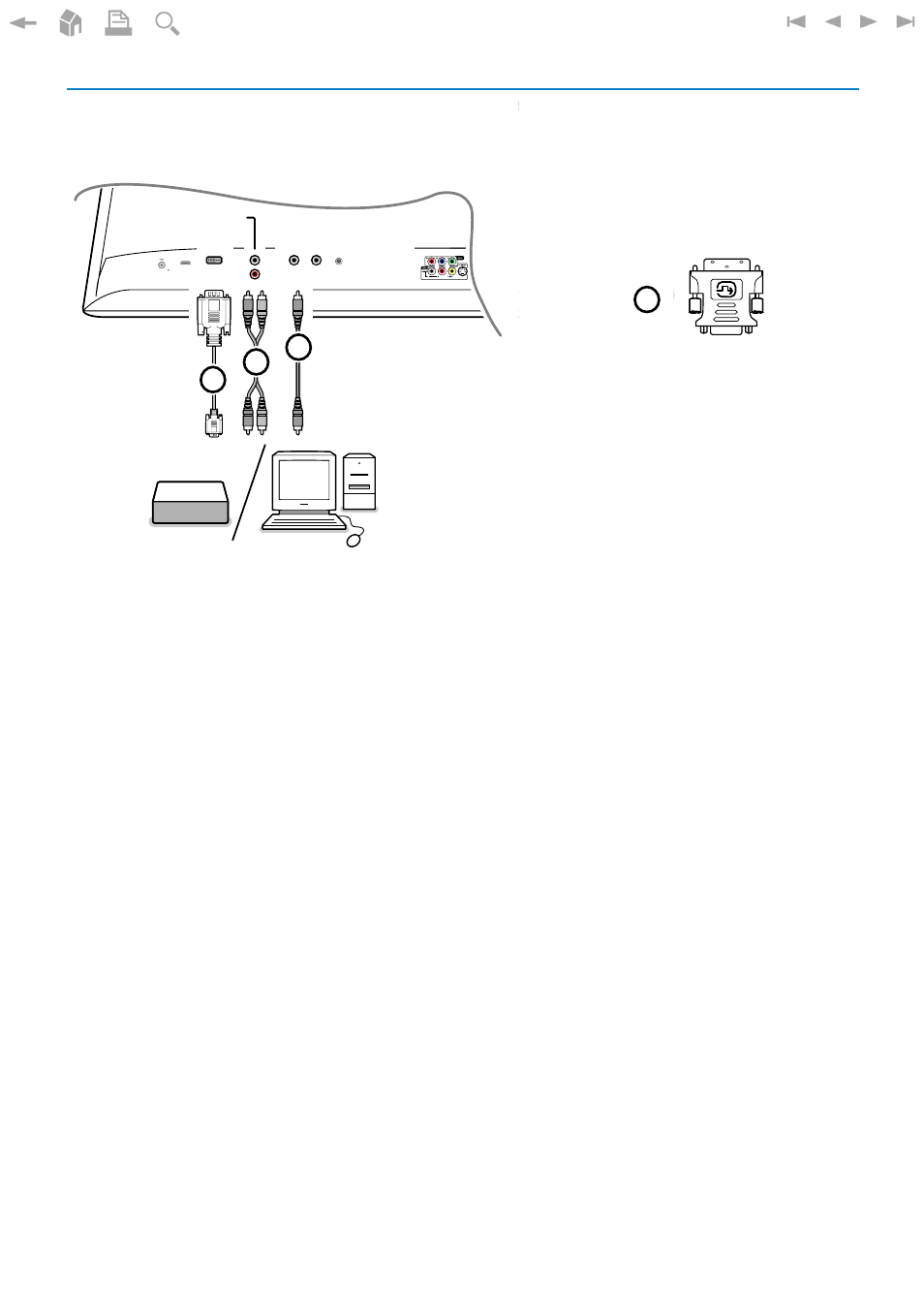

Devices to connect to a DVI connector
The DVI connector allows the following TV and monitor display modes, via the v key on the remote control, for High Definition (HD) and
computer (PC) equipment:
HD Standard Definition TV (SDTV) 640x480i
720x480i
720x576i
Enhanced Definition TV (EDTV) 640x480p
720x480p
720x576p
High Definition TV (HDTV) 1920x1080i
1280x720p
PC VGA 640x480
SVGA 800x600
XGA 1024x768
Note: If necessary, you can adjust the picture position to the centre of the screen with the cursor keys.
& Connect your equipment to the DVI connector of your TV 1.
According to the type of connector of your equipment, you may have to use an appropriate adapter.
DVD
Connect the DVI to DVI cable to the DVI connector of your TV 1.
Computer (PC):
- with a DVI connector: connect the DVI to DVI cable to the DVI connector of your TV 1.
- with a VGA connector: connect the VGA cable to a VGA to DVI adapter 4 and connect to the DVI connector of your TV 1.
é Connect the audio cable 2 to the DVI AUDIO R (right) and L (left) inputs of the TV when the TV expects analogue audio for a
connected peripheral equipment to come from an analogue audio input
OR
Connect the audio cable 3 to one of the DIGITAL AUDIO IN connectors of the TV when the TV expects digital audio for a
connected peripheral equipment to come from a digital audio input.
Then also make your selection of the source to which the peripheral equipment with digital audio input has been connected in the
Setup, Source menu. See Digital audio, p. 14.
4
DVI
VGA
