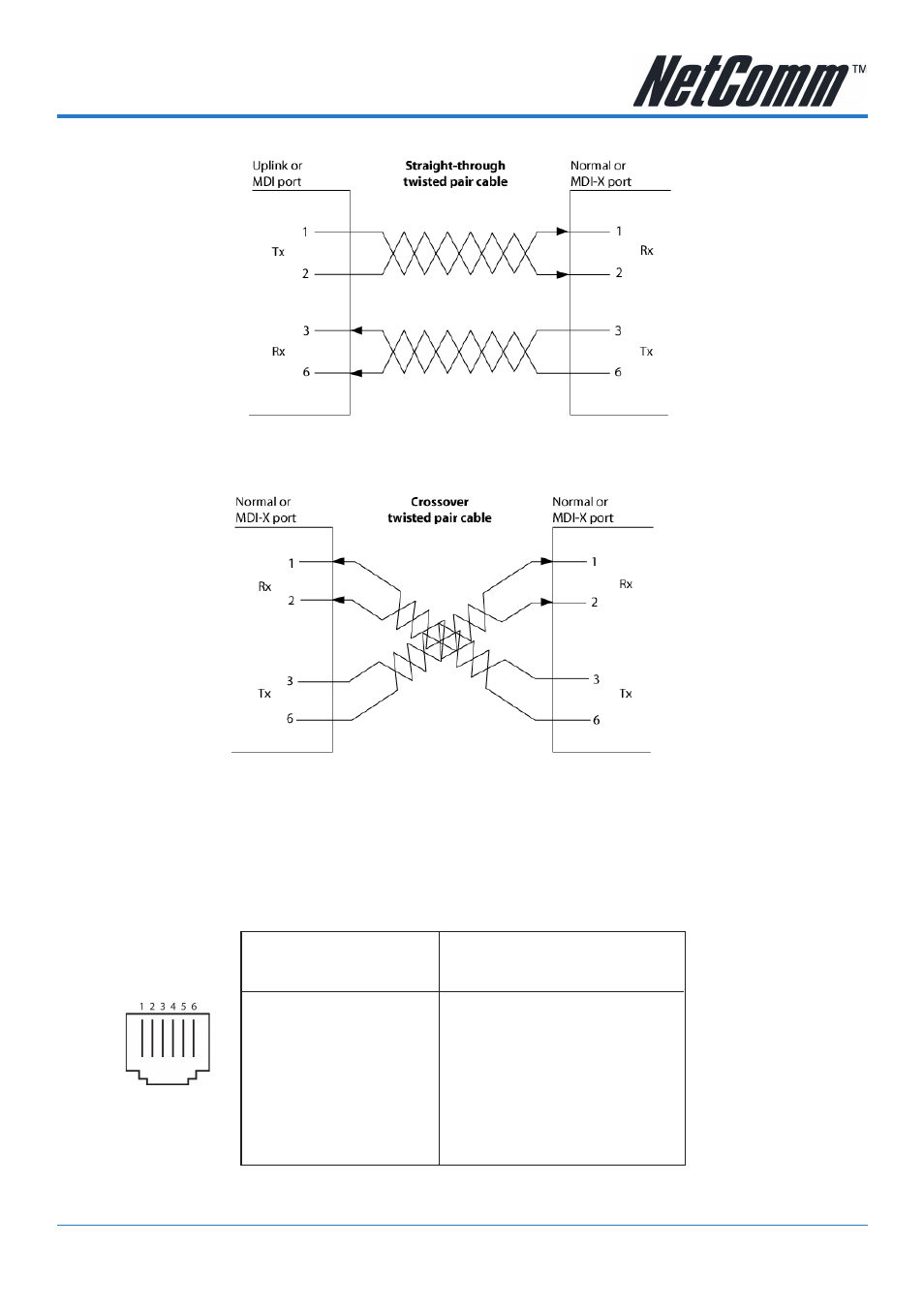

Straight and crossover cable configuration
Figure 3
Figure 4
RJ11 connector and cable
An RJ-11 connector is the small, modular plug used for most analog telephones. It has six pin slots
in the head, but usually only two or four of them are used.
Figure 5
RJ-11 Connector
Pin Assignment
Normal Assignment
1
Signal Ground
2
CTS
3
RXD
4
TXD
5
+5 Volts In
6
Signal Ground
