7
6. Make sure that the Seat Carriage (11) is in the posi-
tion shown. If necessary, pull the Seat Knob (10)
and slide the Seat Carriage forward.
Have another person hold the Seat Frame (7) near the
Seat Carriage (11). Locate the two pulse wires extend-
ing from the Seat Frame. Connect each pulse wire to
the pulse wire
of the same color in the Seat Carriage.
Insert the excess wiring up into the Seat Frame, and
set the Seat Frame on the Seat Carriage. Attach the
Seat Frame with two M10 x 52mm Button Bolts (82)
and two M10 Nylon Locknuts (63).
Be careful to
avoid damaging the pulse wires with the Bolts.
7. Attach the Backrest (62) to the Backrest Frame (42)
with four 1/4” x 16mm Button Screws (80).
Slide the Backrest Frame (42) onto the Seat Frame
(7). Attach the Backrest Frame with four M8 x 25mm
Button Screws (79) and four M8 Split Washers (55).
63
7
Pulse Wires
11
10

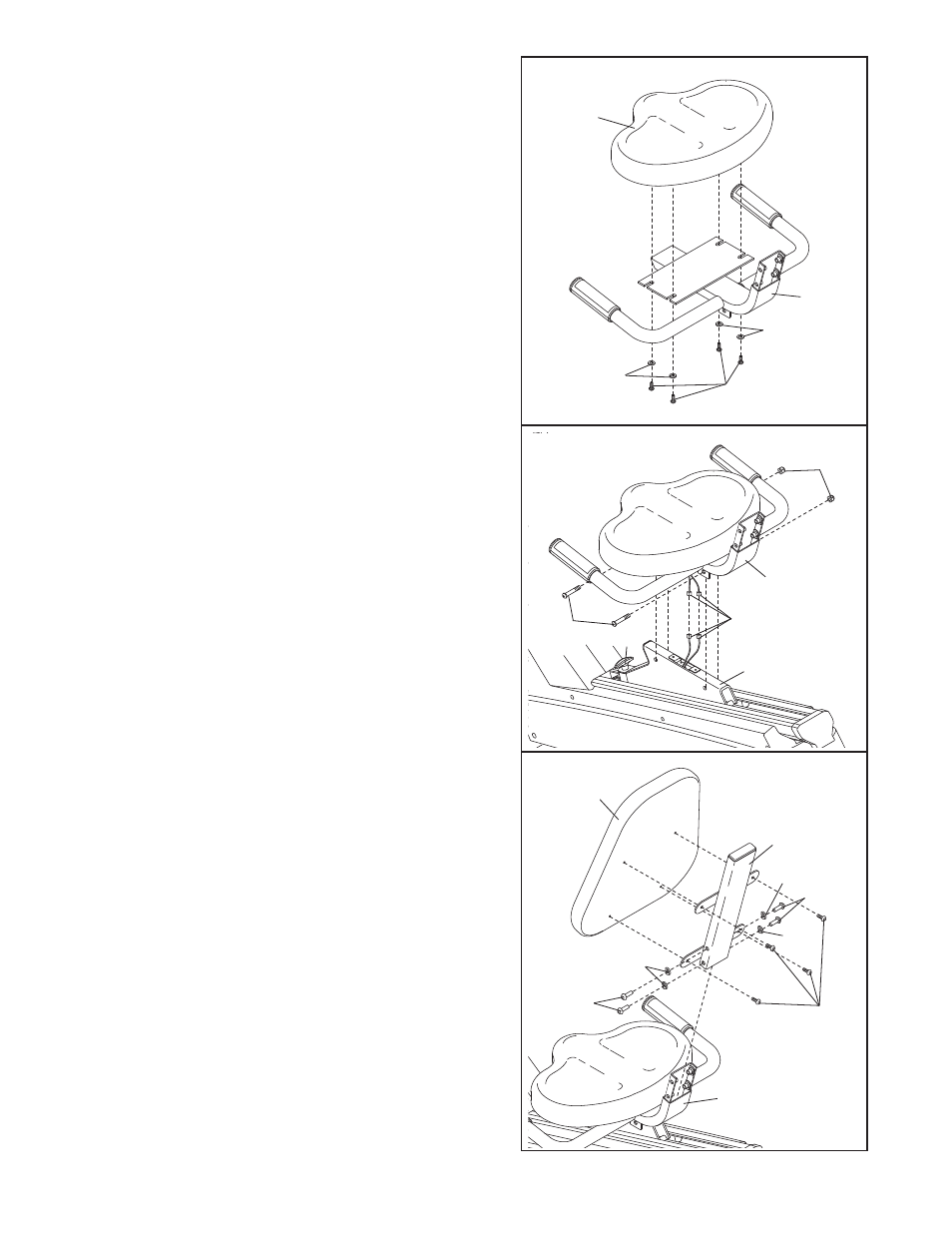

5. Attach the Seat (9) to the Seat Frame (7) with four 1/4”
x 16mm Button Screws (80) and four M8 Washers (60).
7
80
60
60
9
5
62
7
80
79
55
55
55
79
42
7
6
82
