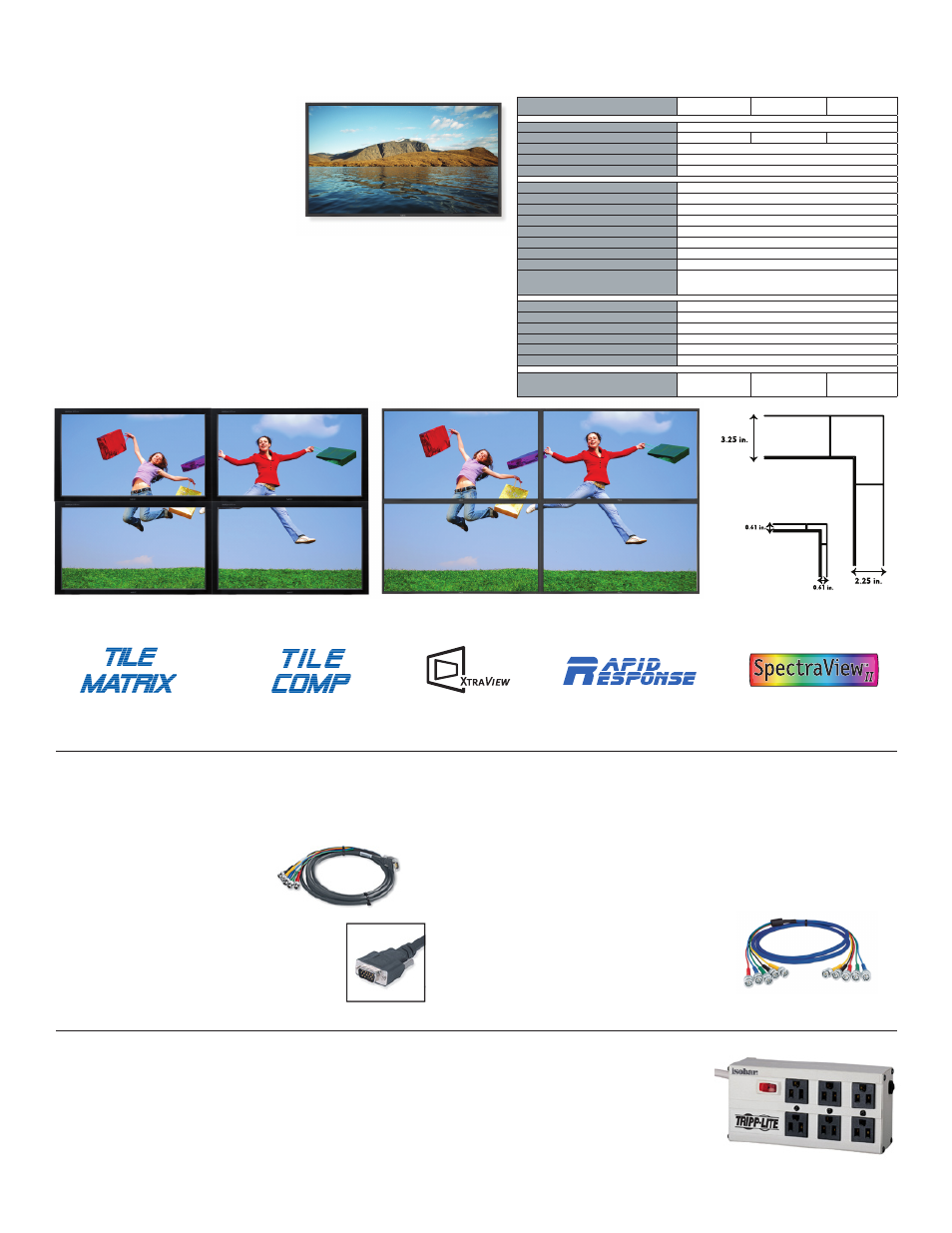

NEC 2x2 LCD TileMatrix Video Wall Solutions
NEC MultiSync 20 Series
Your digital signage applications will
never look the same. The 40” NEC
MultiSync LCD4020, 46” LCD4620
and 52” LCD5220 give your mes-
sages and images the “wow factor”
they need to reach audiences with
maximum impact. In addition to the
exclusive Digital Signage Technology Suite, which boasts nearly 30
advanced features, these displays tout an ultra-thin bezel for tiled-wall
configurations, a built-in expansion slot that future-proofs them for
emerging technologies and HD resolution that turns heads and draws
crowds. In addition, Onsite Overnight Service ensures that a comparable
new or refurbished LCD unit will be replaced by a technician within one
business day of a customer’s call.
LCD4620
Bezel Width
Industry Norm
Bezel Width
Model LCD4020-2-AV LCD4620-2-AV LCD5220-AV
Display
Viewable Image Size (Diagonal) 40” 46” 52”
Native Resolution 1366 x 768
Brightness (Typical) 500 cd/m 2
Contrast Ratio (Typical) 2000:1
Input Terminals
RGB1 (Digital) DVI-D
RGB2 (Analog) Analog D-sub
RGB3 (Analog) 5 BNC (RGBHV)
Video 1 Composite (Shared RCA and BNC)
Video 2 S-Video
Video 3 HDMI
Component Video (DVD/HD) Component BNC
Audio Audio 1 (MiniJack), Audio 2 and 3 Stereo (RCA), HDMI /
Internal Speaker: None
Output Terminals
RGB Yes
Video Yes
Audio Yes
External Control RS-232 for multiple monitor control, IR, DDC/CI
Audio Amplifier 15W Stereo
Net Weight (without stand) 64.8 lbs. /
29.4 kg
79.6 lbs. /
36.1 kg
97.7 lbs. / 44.3 kg
Extron Cables
Qty. 1
15-pin HD Male to BNC Male Mini High
Resolution Cables
• High-performance cable designed for
transmission of computer video
• Utilizes Extron MHR-5 Cable
• Smaller diameter, more flexible and
easier to pull than regular coax cable,
improving ease of installation
• NEC CM-rated, non-plenum cable
• Terminated with five high-quality 75-ohm
BNC male connectors at one end
Qty. 3
BNC Male to Male Five Conductor MHR - Mini High
Resolution Cables - Plenum
• High-performance coaxial cable for high-
resolution video signal distribution
• Lighter, smaller in diameter and more convenient
to install than standard coaxial cable
• Provides five 26 AWG, 75-ohm coaxial
conductors in a single jacket
• Double-shielded to reduce crosstalk,
maintaining the integrity of the video signal
• NEC CMP rated, plenum cable
• Terminated with high-quality 75-ohm
BNC connectors
Compared to NEC’s previous generation of large-screen displays (left), the ultra-thin bezel of the MultiSync 20 Series
(right) provides for undistorted image viewing for your tiled video walls.
to build video
walls up to 5x5
for window pane
effect
for 180° wide-
angle viewing
for full-motion video to calibrate to same
profile
Tripp Lite surge suppressor
• Features six outlets/6-ft. cord
• $50,000 Ultimate Lifetime Insurance (US/CDN)
• Network grade surge suppression rated at
2350 joules/97,000 amps
• Prevents system crashes, reboots and
performance issues
• Keyhole mounting tabs allow permanent
installation
• Lighted power switch confirms power on/off status
• Widely spaced outlets accommodate up to
four large transformer plugs without
blocking outlets
