Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the
packing materials until assembly is completed.

In addition to the included hex keys, assembly requires a phillips screwdriver and an
adjustable wrench .

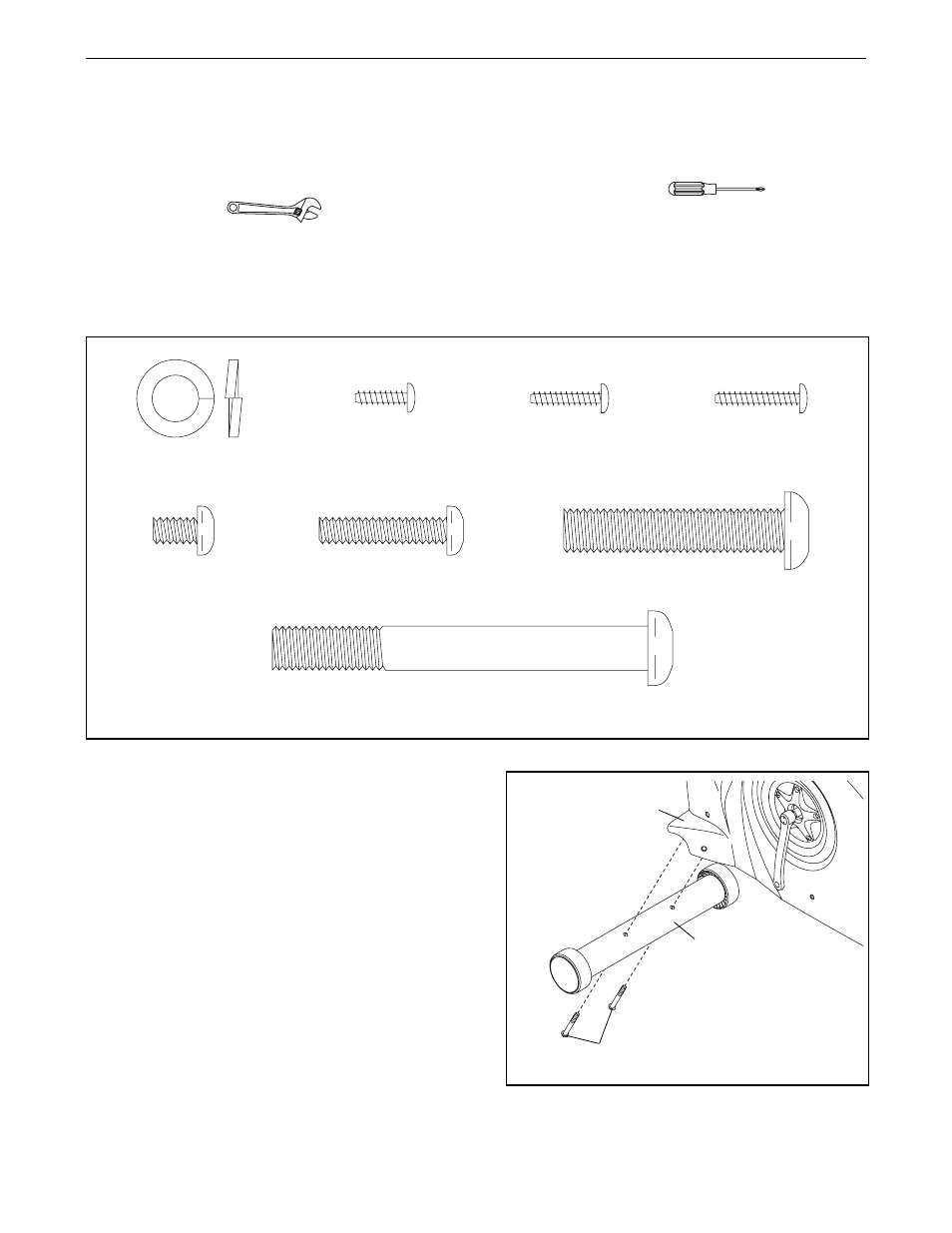

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 22. The number following the
parentheses is the quantity used in assembly. Note: Some small parts may have been preassembled for
shipping. If a part is not in the parts bag, check to see if it has been preassembled.

M10 x 85mm Button

Screw (56)–4

M10 x 50mm Button

Screw (48)–3

M6 x 10mm

Screw (60)–2

M6 x 30mm Button

Screw (46)–4

M4 x 19mm

Screw (47)–2

M10 Split

Washer (55)–3

M4 x 16mm

Screw (54)–6

M4 x 12mm

Screw (64)–1

ASSEMBLY

1. Attach the Front Stabilizer (2) to the Frame (1) with

two M10 x 85mm Button Screws (56).
