7
W415-0527/ 09.29.05

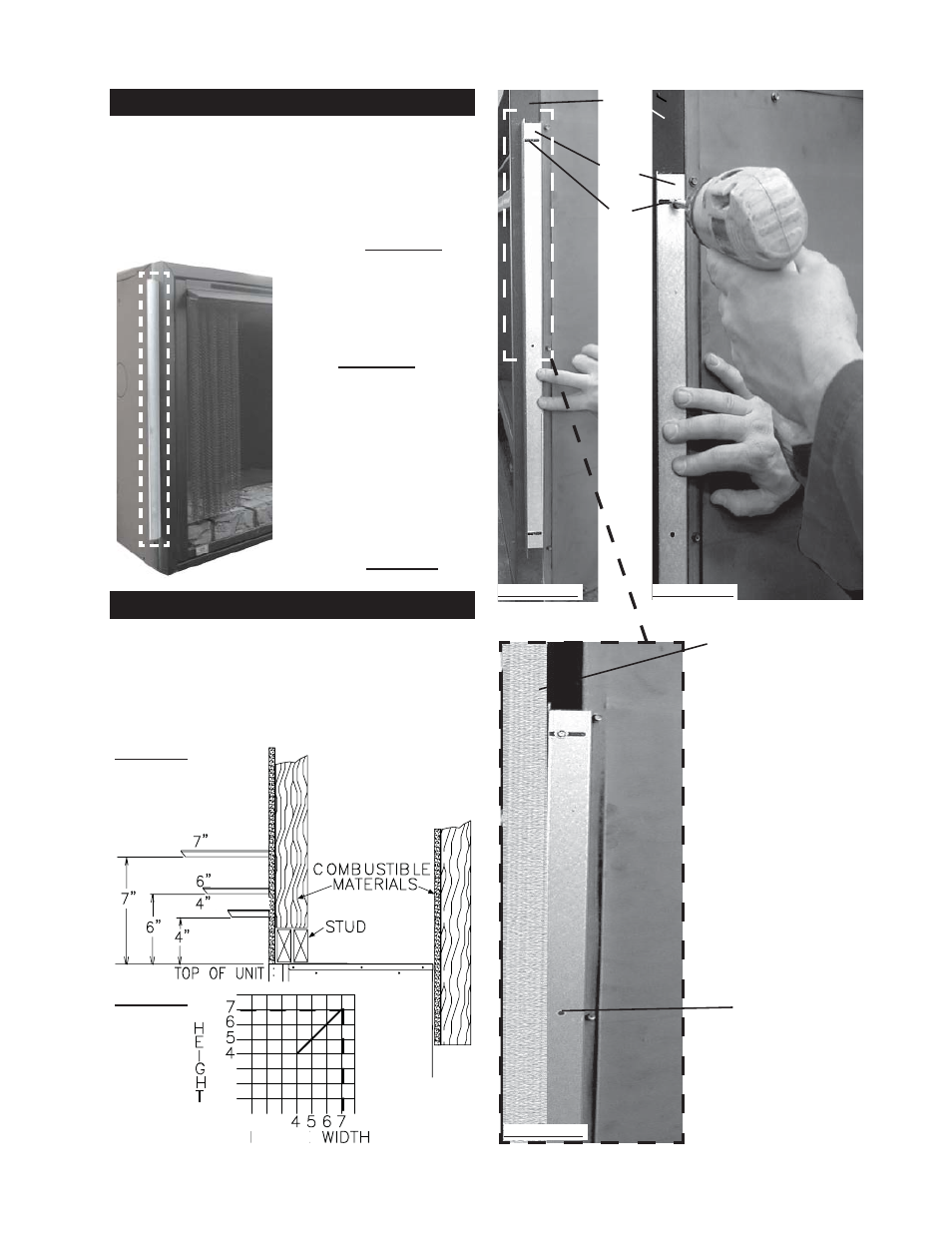

1) Attach the nailing tabs to the corner posts using the 2
sheet metal screws supplied. Secure through the centre of
the top and bottom slots in the nailing tab and then through
the existing holes in the corner posts.
If there are no existing holes, follow these instructions:
Position the nailing tab so that the front face is offset with
the front edge of the corner post (approx. ½”). Centre the
nailing tab vertically on the corner post. (FIGURE 6a) Drill
through the centre of the top
and bottom slots in the nailing
tab. Secure using the two
sheet metal screws supplied.
This allows the nailing tab to
slide back and forth for desired
framing. (FIGURE 6b)
2) To determine the fi nal
location of the nailing tab you
must fi rst determine the width
of your fi nishing material (i.e.
drywall). This will determine
the dimension from the front
edge of the corner post to the
nailing tab. Once the nailing tab
is in the desired location, drill
through the centre hole of the
nailing tab. Secure with a sheet
metal screw*. (FIGURE 6c)
* Additional set screws may be installed.
NAILING TAB INSTRUCTION
Combustible materials may be installed fl ush with the front
of the ventless fi rebox enclosure but must not cover any
of the black face-areas of the ventless fi rebox enclosure.
Non-combustible material (brick, stone or ceramic tile) may
protrude in these areas.
Combustible mantel clearance can vary according to the
mantel depth. Use the graph to help evaluate the clearance
MANTEL CLEARANCES
TOP OF UNIT
7"
6"MANTLE
4"MANTLE
6"
4"
7"MANTLE
MANTLE WIDTH
4
E T
T G
L H
N I
M H
A E
7
5
6
4
MATERIALS
STUD
COMBUSTIBLE
5 6 7
NAILING
TAB
TOP
SLOT
CENTRE HOLE
FIGURE 7
FIGURE 8
FIGURE 6a FIGURE 6b
FIGURE 6c
CORNER
POST
FINISHING MATERIAL
MANTEL
MANTEL
MANTEL
M
A
N
T
E
L
MANTEL
