REPLACEMENTS
Contact your dealer for questions concerning prices and
availability of replacement parts. Normally all parts can be
ordered through your Napoleon dealer or distributor.
FOR WARRANTY REPLACEMENT PARTS, A
PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following
information:
1. Model & Serial Number of ventless fi rebox enclosure
2. Installation date of ventless fi rebox enclosure
3. Part Number
4. Description of part
5. Finish
REPLACEMENT PARTS
ACCESSORIES
# PART No. DESCRIPTION
1* W385-0245 Napoleon Logo
2 W565-0084 Curtain Mesh
3 W555-0056 Curtain Rod
4 W335-0044 Hood
5* W500-0192 Panel Brackets
6 W475-0400 Hearth Pad (Right)
7 W475-0386 Hearth Pad (Left)
REPLACEMENT PARTS
ACCESSORIES
ZCVF36 ZCVF42
# PART No. DESCRIPTION
1* W385-0245 Napoleon Logo
2 W565-0085 Curtain Mesh
3 W555-0057 Curtain Rod
4 W335-0045 Hood
5* W500-0192 Panel Brackets
6 W475-0399 Hearth Pad (Right)
7 W475-0382 Hearth Pad (Left)
# PART No. DESCRIPTION
8* 111KT Outside Air Kit
9* 112KT Adaptor Plate, Outside Air Kit
10* GD810-KT Brick Panels (Cobblestone)
11 DKZC36SS Decorative Door
12 TBZC36K 36” 3” Bevelled trim (textured black)
13* TBZC36SS 36” 3” Bevelled trim (satin chrome)
14 GZ550-1KT Blower kit
15* W500-0033 Switch Wall Mounting Plate
# PART No. DESCRIPTION
8* 111KT 111-KT Kit
9* 112KT 112 Collars
10* GD809-KT Brick Panels (Cobblestone)
11 DKZC42SS Decorative Door
12 TBZC42K 42” 3” Bevelled trim (textured black)
13* TBZC42SS 42” 3” Bevelled trim (satin chrome)
14 GZ550-1KT Blower kit
15* W500-0033 Switch Wall Mounting Plate

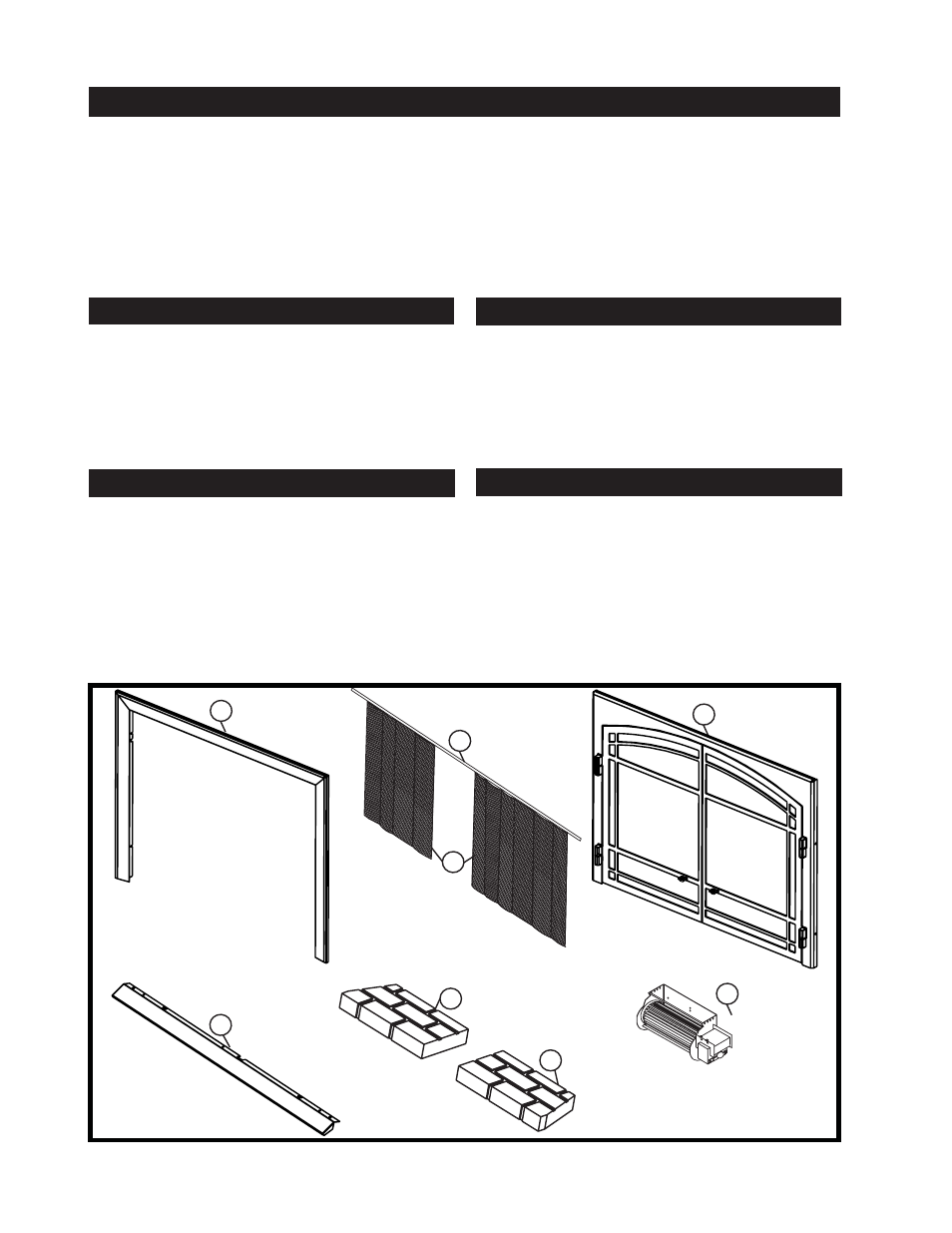

* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION, CONTACT YOUR NAPOLEON DEALER.
7
6
2
3
4
11
12
14
