NI PXI-1042 Power Supply Shuttle User Guide
2
ni.com
What You Need to Get Started
❑
PXI-1042 chassis (the unit being repaired)
❑
PXI-1042 power supply shuttle
❑
Read Me First: Safety and Radio-Frequency Interference
❑
NI PXI-1042 User Manual (provided with the chassis; also available at
ni.com/support
)
❑
#1 Phillips screwdriver
Description
Refer to Figure 1 to locate user-accessible components on the power supply
shuttle.

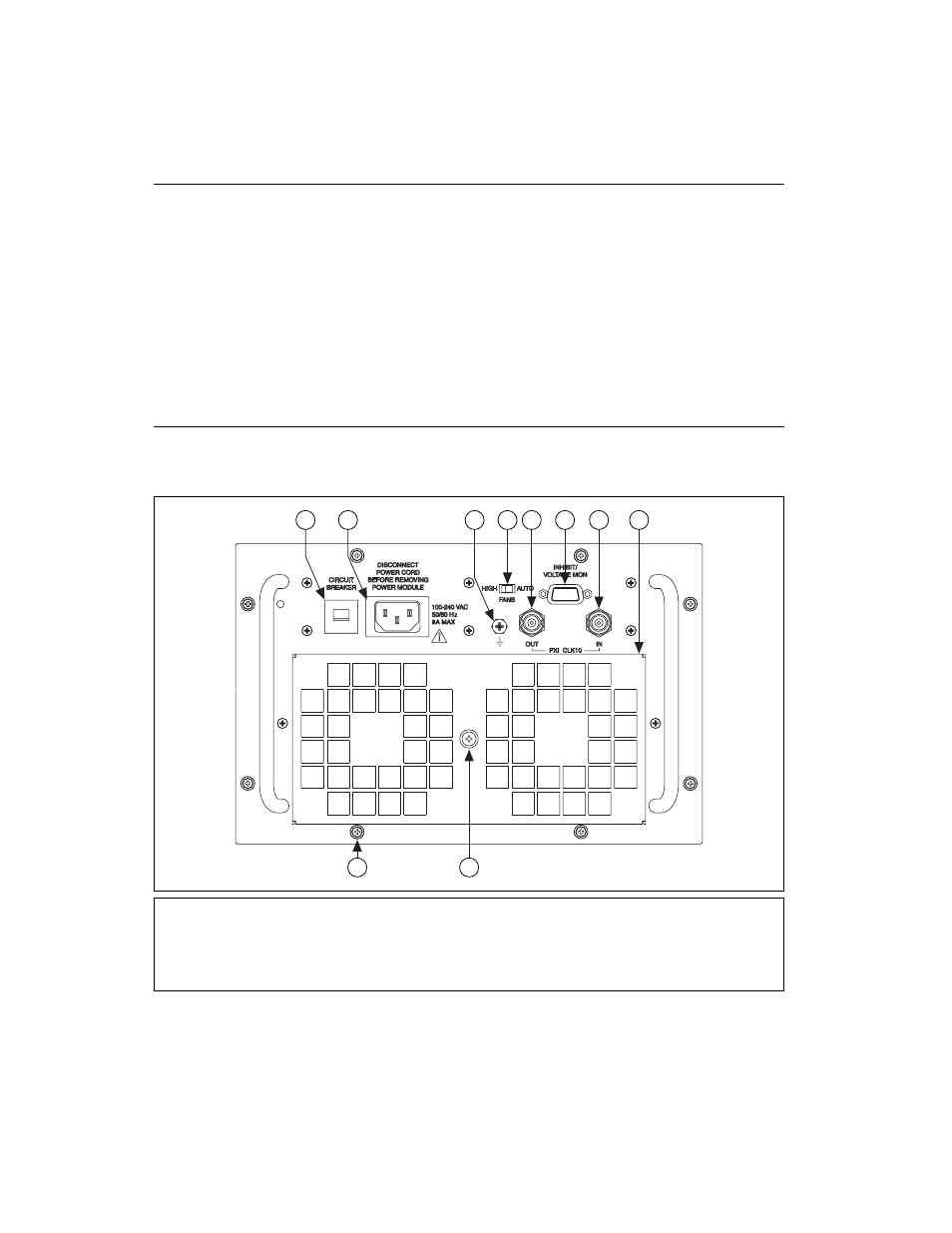

Figure 1. PXI-1042 Power Supply Shuttle Rear Panel
1
Circuit Breaker
2
Universal AC Inlet
3
Chassis Grounding Screw
4
Fan Speed Selector Switch
5
PXI_CLK10 OUT BNC
6
Remote Inhibit and Voltage Monitoring Connector
7
PXI_CLK10 IN BNC
8
Filter Cover
9
Filter Retainer Screw
10 Mounting Screws (8X)
1
2
3
4
5
6
7
8
10
9
