Rear Panel
The 3-pronged power plug, 2 fans, power switching is located at the rear panel of the
3-slot Gigabit Chassis switch as shown in Figure 2-2. The switch will work with AC
power in the range of 100-240V AC, 50-60Hz.

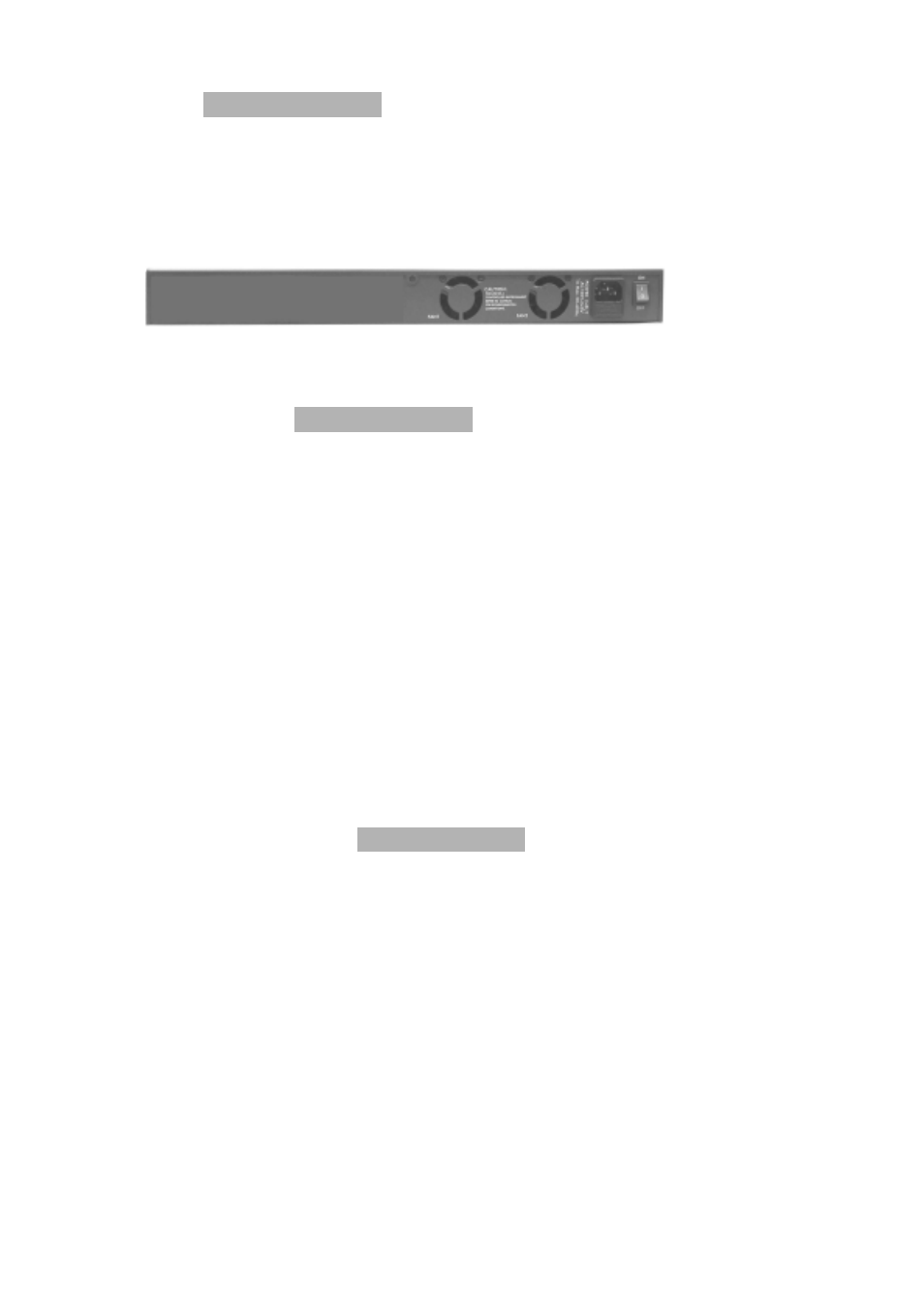

Figure 2-2. The Rear Panel of the 3-slot Gigabit Cassis switch
Desktop Installation
Set the Switch on a sufficiently large flat space with a power outlet nearby. The surface
where you put your Switch should be clean, smooth, level and sturdy. Make sure there
is enough clearance around the Switch to allow attachment of cables, power cord and
allow air circulation.
Attaching Rubber Feet
A. Make sure mounting surface on the bottom of the Switch is grease and dust free.
B. Remove adhesive backing from your Rubber Feet.
C. Apply the Rubber Feet to each corner on the bottom of the Switch. These footpads
can prevent the Switch from shock/vibration.
Rack-mounted Installation
The switch come with a rack-mounted kid and can be mounted in an EIA standard size,
19-inch Rack. The Switch can be placed in a wiring closet with other equipment.
Perform the following steps to rack mount the switch:
