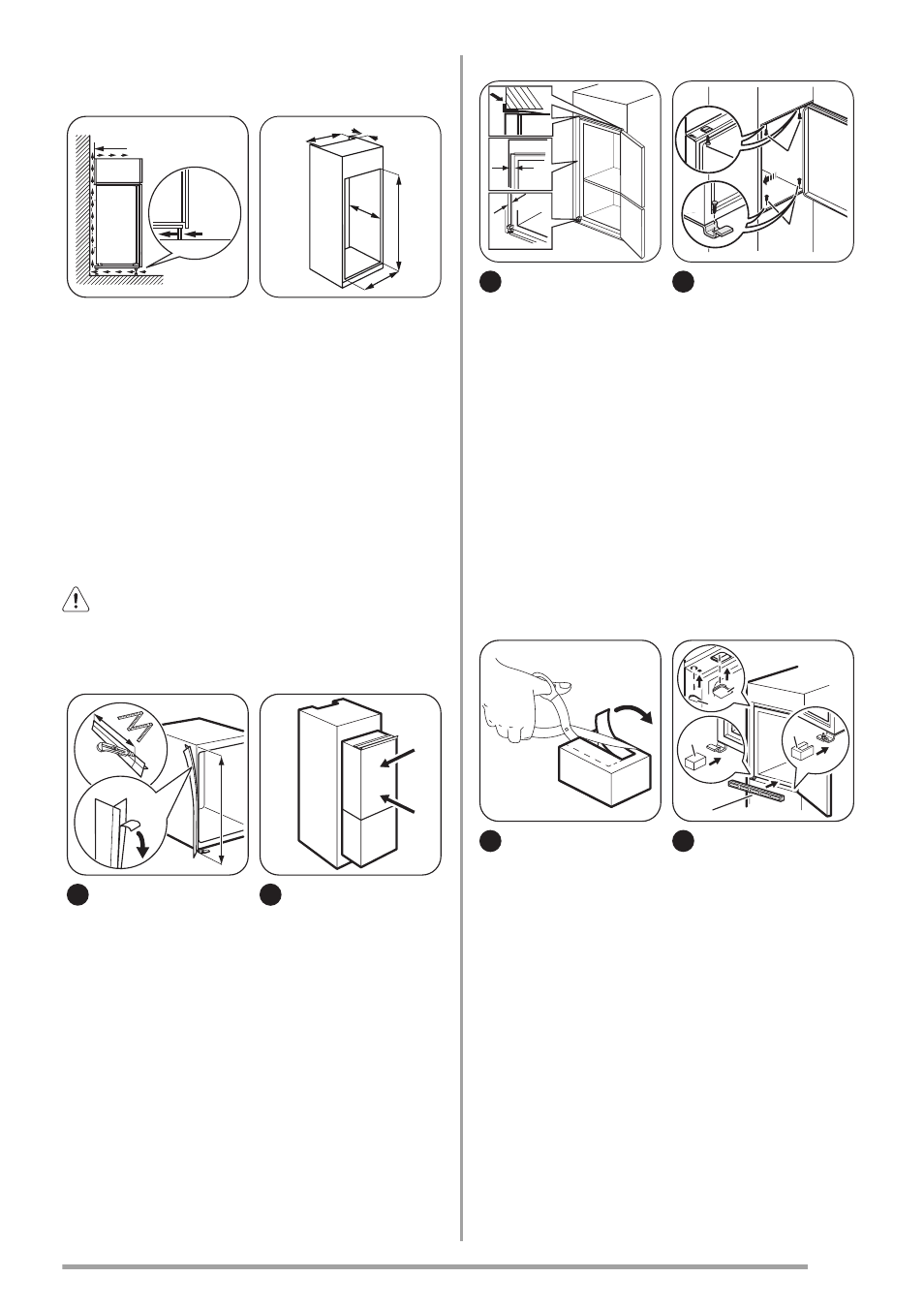

Ventilation requirements
50 mm min.
200 cm 2
min.
200cm 2
The airflow behind the
appliance must be suffi-
cient.
50
1
3
2
540
Make sure that the clear-
ance behind the appli-
ance is:
Depth 50 mm
Width 540 mm
Important! The lower hinge cover (in the accessories
bag) makes sure that the distance between the kitchen
furniture and the appliance is correct.
Caution! Make sure that the mains cable can
move freely.
Do these steps.
x
x
1 If necessary cut the
adhesive sealing strip
and then apply it to the
appliance as shown in
figure.
1
2
2 Install the appliance
in the niche.
Push the appliance in the
direction of the arrows (1)
until the upper gap cover
stops against the kitchen
furniture.
Push the appliance in the
direction of the arrows (2)
against the cupboard on
the opposite side of the
hinge.
44mm
4mm
3 Adjust the appliance
in the niche.
Make sure that the dis-
tance between the appli-
ance and the cupboard
front-edge is 44 mm.
The lower hinge cover (in
the accessories bag)
makes sure that the dis-
tance between the appli-
ance and the kitchen fur-
niture is correct.
Open the door. Put the
lower hinge cover in posi-
tion.
I
I
4 Attach the appliance
to the niche with 4
screws.
5 Remove the correct
part from the hinge cover
(E).
E
E
D
C
B
6 Attach the covers (C,
D) to the lugs and the
hinge holes.
Install the vent grille (B).
Attach the hinge covers
(E) to the hinge.
