58
Specifications
Product Name PlasmaSync™ 50MP2 Plasma Monitor
Product Code PX- 50XM2A
Screen Size 43.5"(H) ן24.5"(V) inches
1106(H) ן622(V) mm
diagonal 50"
Aspect Ratio 16 : 9
Resolution 1365(H)
ן768(V) pixels
Pixel Pitch 0.032"(H)
ן0.032"(V) inches
0.81(H)
ן0.81(V) mm
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 93.8 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals
RGB
Visual 1 (Analog) mini D-sub 15-pin
ן1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)
ן1* 2
Visual 3 (Digital) DVI-I 29-pin
ן1* 3
(Not compatible with analog input)
Video
Visual 1 RCA-pin
ן1
Visual 2 BNC ן1
Visual 3 S
2
-Video: DIN 4-pin ן1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR]) ן1* 1
Visual 2 BNC (Y, PB[CB], PR[CR]) ן1* 1, * 2
Audio Stereo RCA ן3 (Selectable)
External Control D-sub 9-pin ן1 (RS-232C)
Sound output 7W+7W at 6 ohm
Power Supply AC120V 50/60Hz
Current Rating 5.4A (maximum)
Power Consumption 480W (typical)
Dimensions 48.8 (W) ן30.2 (H)ן4.2 (D) inches
1240 (W) ן766 (H)ן107(D) mm
Weight 98 lbs / 44.5 kg
Environmental Considerations
Operating Temperature 0°C to 35°C / 32°F to 95°F
Humidity 20 to 80% (no condensation)
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ OSM control
Remote Control Functions Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions Picture (Contrast / Brightness / Sharpness/
Color / Tint / Picture mode / Color
temperature/ Noise reductions), Sound (Bass
/ Treble/ Balance),Screen (V-Position / H-
Position/ V-Height / H-Width /Auto Picture
/ Fine picture/ Picture adjustment), Function
(OSM/ OSM adjustment/ Power
management/ Gray level/ Cinema mode/
RGB3 Adjustment, Long Life (PLE, Orbiter,
Inverse, White, Screen Wiper)/ Reset)/Option
(Audio input/ BNC select/ RGBselect/ HD
select/ Picture Size), Information (Frequency
/ Language* / Color system)
*English, German, French, Italian, Spanish,
Swedish, Japanese
The features and specifications may be subject to change without
notice.
* 1 HD/DVD/DTV input signals supported on this
system
480P (60 Hz)
480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
* 2 The 5-BNC connectors are used as RGB/PC2 and
HD/DVD2 input. Select one of them under “BNC
SELECT”.
* 3 It doesn’t cope with copy protection.

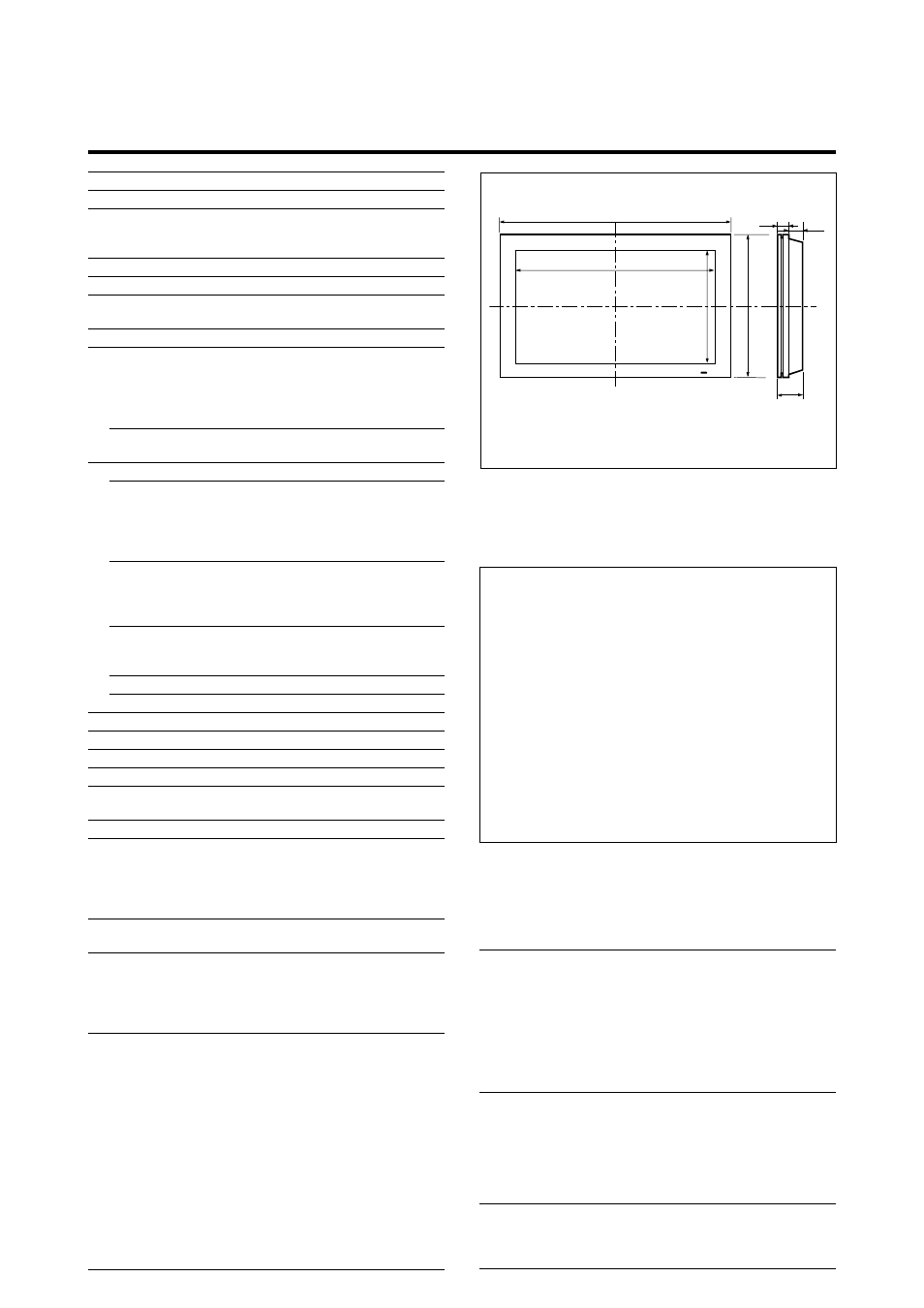

Units are in inch
(mm)
4.2"
(107)
1.89"
(48)
2.31"
(59)
48.8" (1240)
43.5" (1106)
30.2" (766)
24.5" (622)
Other Features 3D motion adaptive Scan Converter
with 2-2 (50Hz), 2-3 (60Hz) pull down
Converter, Digital Zoom function
(100-900% Selectable),
Self Diagnosis, Anti Image Burn,
Color Temperature Select, Control Lock,
Power management, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only),
MULTI SCREEN operations
Accessories Remote control unit with two AAA
batteries, Remote cable, RGB cable
(Mini D-Sub 15-pin to Mini D-Sub 15-
pin connector), Power cord, User’s
Manual, Safety metal fittings, Screws for
safety metal fittings,
Ferrite cores, Bands
Regulations UL Approved (UL 60950/CSA C22.2,
No. 60950)
DOC Canada requirements
Meets FCC class A requirements
