North Star 10 kW - Manual (Page 33)

Connector 3 - SmartCraft pin assignments
12.7.2 Configure the remote power control for a 6000i or 6100i (common power
source)
IMPORTANT: This remote power control option works correctly only when the 6000i or 6100i and the
radar processor share the same power earth and are located 16.5 ft (5 m) or less apart.

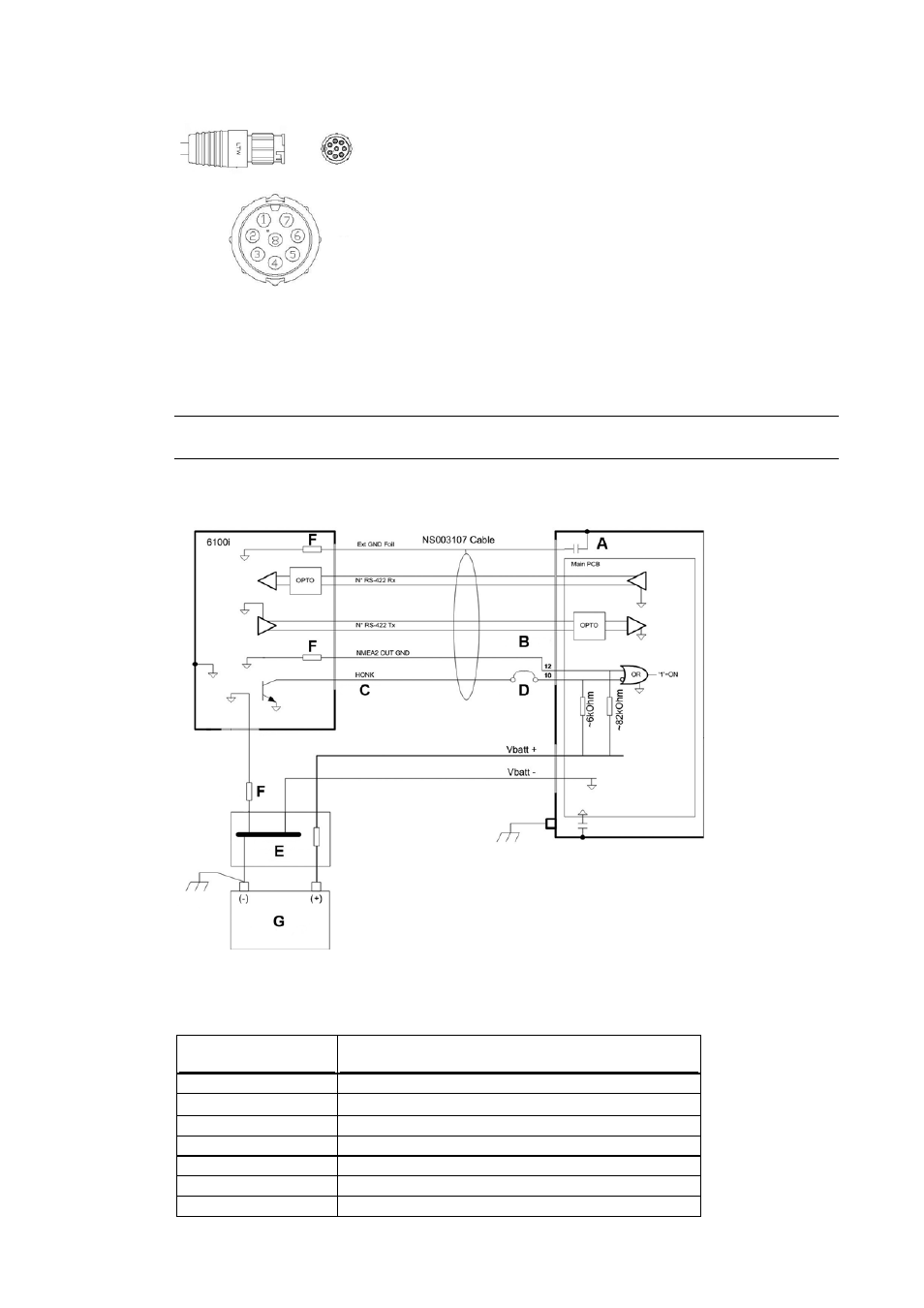

A simplified diagram of the power control circuit for the radar processor and 6000i or 6100i is shown:
where:
Key Component
A Radar processor
B NMEA/Comms port
C NMEA port
D Link in the junction box
E Fuse/Breaker board
F Fuse
G Battery
Northstar 25 kW Radar Installation Manual 33
