User’s manual NAVIGON 7310
Before you begin
- 12 -
►

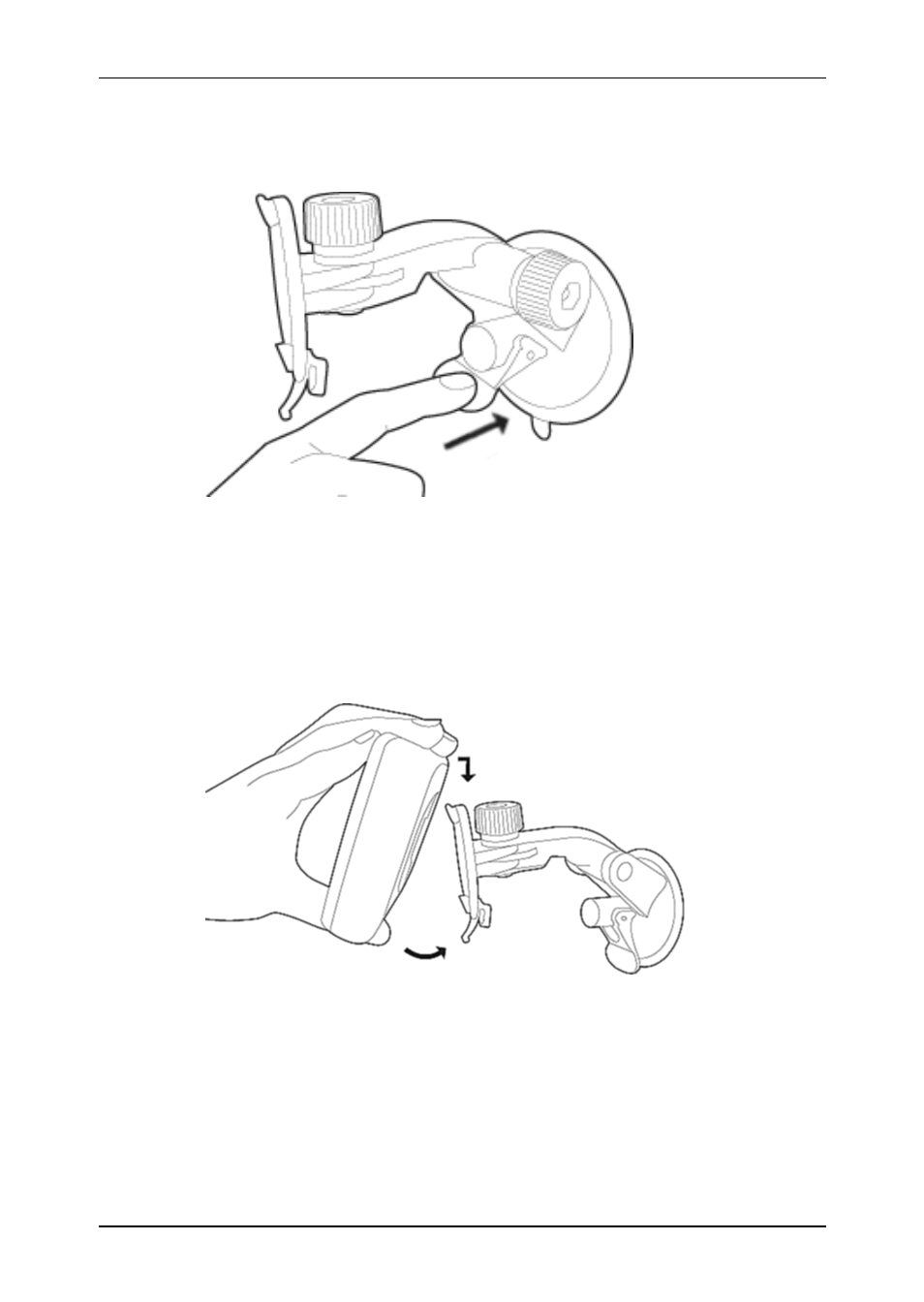

Assemble the cradle as shown in the illustration. No tools are
needed for this.
Securing the cradle
1. Clean the suction cup and that part of the windscreen to which you
want to secure the cradle. Both must be dry and free of dirt and
grease.
2. Open the lever on the suction cup as far as possible.
3. Place the cradle suction cup against the windscreen.
4. Press the lever towards the windscreen.
Inserting the navigation device into the cradle
On the back of the NAVIGON 7310 you will see a circle with two
recesses.
1. Hang the navigation device by the upper recess on the upper lug of
the cradle. (See illustration)
2. Then press it towards the cradle so that it latches in place.
