INSTALLATION NOTES
• It is not necessary to install an ENVIROMUX-DCVD-xxx to monitor the DC circuit which provides power to the ENVIROMUX-
SEMS-16. The ENVIROMUX-SEMS-16 has built-in power monitoring and battery backup and will send an alert in the event
of a power failure.
• In order for the ENVIROMUX-SEMS-16 to send an e-mail alert, the attached network components (routers, mail server, etc.)
must have power. If you are using the ENVIROMUX-SEMS-16 and ENVIROMUX-DCVD-xxx to monitor the DC circuit
providing power to any of these network components, be sure they will not lose power during a fault condition. (See image

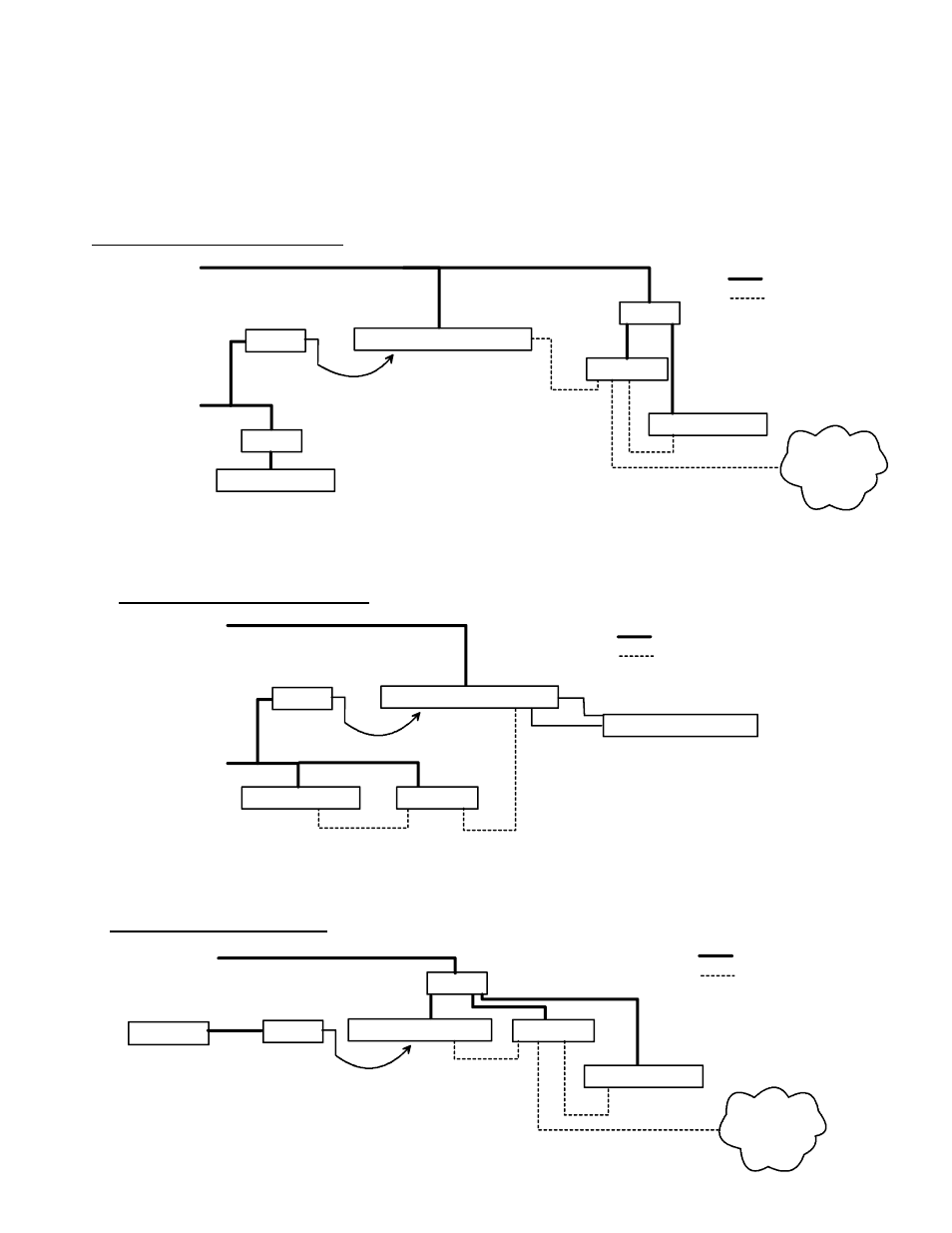

below.)
•
If your network components will lose power during the DC fault condition, use an alternate means to send alerts such as a
GSM Modem (ENVIROMUX-GSM) or Auto Voice Dialer (ENVIROMUX-AVDS). The ENVIROMUX-GSM and ENVIROMUX-
AVDS are powered by the “Aux Pwr” port on the ENVIROMUX-SEMS-16. (See image below.)
•
If you are using the ENVIROMUX-DCVD-xxx to monitor the DC Circuit wIth the ENVIROMUX-MINI, be sure the
ENVIROMUX-MINI and any other necessary network equipment (router, mail server, etc.) will not lose power during the fault
condition. (See image below.)
DC Circuit #1
ENVIROMUX-SEMS-16
UPS
DCVD
DC Circuit #2
UPS
WEB SERVER
ROUTER
MAIL SERVER
INTERNET
2-Wire Cable
Power cable
Ethernet cable
ENVIROMUX-SEMS Installation #1
AC Circuit #1
ENVIROMUX-MINI DCVD ROUTER
2-Wire Cable
Power cable
Ethernet cable
UPS
MAIL SERVER
ENVIROMUX-MINI Installation
INTERNET
BATTERY
DC Circuit #1
ENVIROMUX-SEMS-16 DCVD
DC Circuit #2
MAIL SERVER ROUTER
2-Wire Cable
Power cable
Ethernet cable
GSM Modem
RS232
Aux. Pwr.
ENVIROMUX-SEMS Installation #2
(ENVIROMUX-GSM)
