The ENVIROMUX-DCVD-xxx can also be connected to the “RJ45 SENSORS” sockets on the ENVIROMUX-SEMS-16. When
using a CAT5 patch cable to make connection, you must first determine what wiring standard the cable has been made to. Make
connections based on the chart below.
TERMINAL ON
ENVIROMUX-DCVD-xxx RJ45 Socket
Pin #
Cable Wire Color
(T568A Standard)
Cable Wire color
( T568B Standard)
+ 1 Green Orange
2 Green/White Orange/White

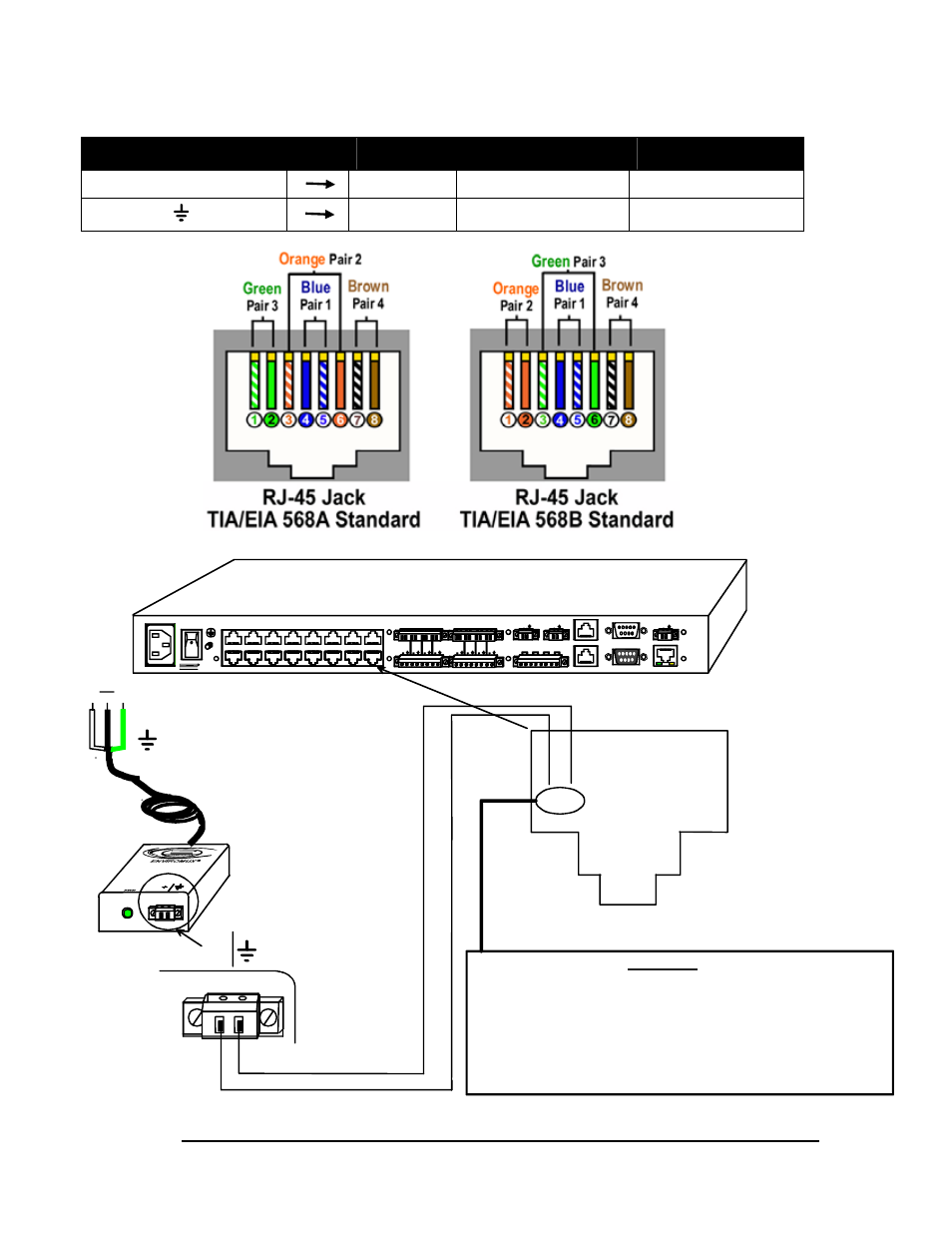

Wire connections for ENVIROMUX-SEMS-16 using RJ45 Sensor sockets
ENVIROMUX-DCVD-24V
+
1 2 3 4 5 6 7 8
View looking into RJ45 Socket
Using a patch cable from NTI (wired to the T568B
Standard), Orange/White is at postion 1, and Orange
is at position 2 in the RJ45 connector.
Using a cable wired to the T568A Standard,
Green/White is at postion 1, and Green
is at position 2 in the RJ45 connector.
White Green
Black
+
( )
( ) ( )
REAR VIEW OF ENVIROMUX-SEMS-16
RJ45 SENSORS DIGITAL IN
+ 12V + 12V + 12V + 12V
OUTPUT RELAYS
1 2 3 4 5 6 7 8
1 2 3 4
ETHERNET
AUX PWR
OUT
IN
CONSOLE
AUX BEACON SIREN
NTI
R
NETWORK TECHNOLOGIES INC Tel:330-562-7070 1275 Danner Dr, Auro ra, OH 44202 www.n etworktechinc.co m
+12V +12V +12V + 12V + 12V + 12V + 12V
