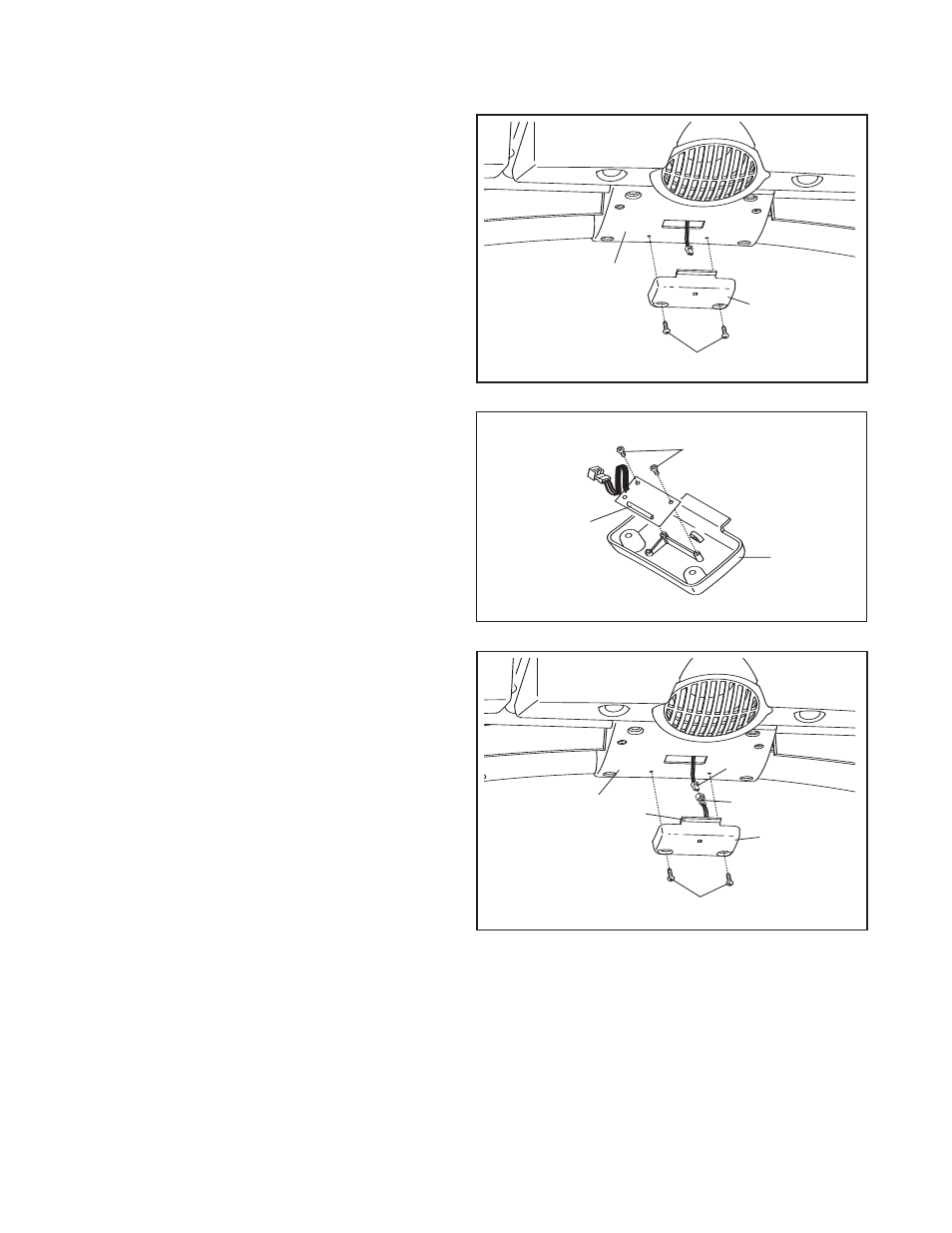

1. Make sure that the power cord is unplugged.
Remove the indicated 3/4" Screws (4) from the
Pulse Receiver Cover (70) on the back of the
Console Assembly (A).
2. Next, hold the receiver so the small cylinder
is oriented as shown. Attach the receiver to the
Pulse Receiver Cover (70) with the two included
Small Screws (B).
3. Connect the Wire (C) on the receiver to the wire
extending from the Console Assembly (A). Make
sure that no wires are pinched. Reattach the
Pulse Receiver Cover (70) to the Console
Assembly with the two 3/4" Screws (4). Discard
the other wires included with the receiver.
If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re-
ceiver included with the chest pulse sensor.
A
1
70
4
A
3
70
Wire
Tab
4
C
70
Cylinder
2
B
