6
W415-0547 / C / 07.25.06
MAINTAIN THESE MINIMUM CLEARANCES
TO COMBUSTIBLES:
A. 4" B. 2"
*
C. 2"
STOVE SHOULD NOT BE INSTALLED DIRECTLY ON CARPETING .
TO CEILING FROM STOVE TOP ..................................................48"
HORIZONTAL VENT
SIDES AND BOTTOM ................................................................1"
TOP ......................................................................................2"
VERTICAL VENT
ALL SIDES .............. ...............................................................1"
*
AT A DISTANCE OF 2" FROM THE WALL , INSTALLATION OR SERVICE
TO THE BLOWER MAY NOT BE PRACTICAL . A MINIMUM OF 5" WILL
BE REQUIRED IN ORDER TO INSTALL THE BLOWER .
If less than 5" clearance is maintained between the back
of the stove and the back wall, it will be necessary to
disconnect the venting and gas pipe to move the stove
out for installation or service of the blower.
Provide adequate accessibility clearance for
servicing and operating the stove.
Never obstruct the front opening of the stove.

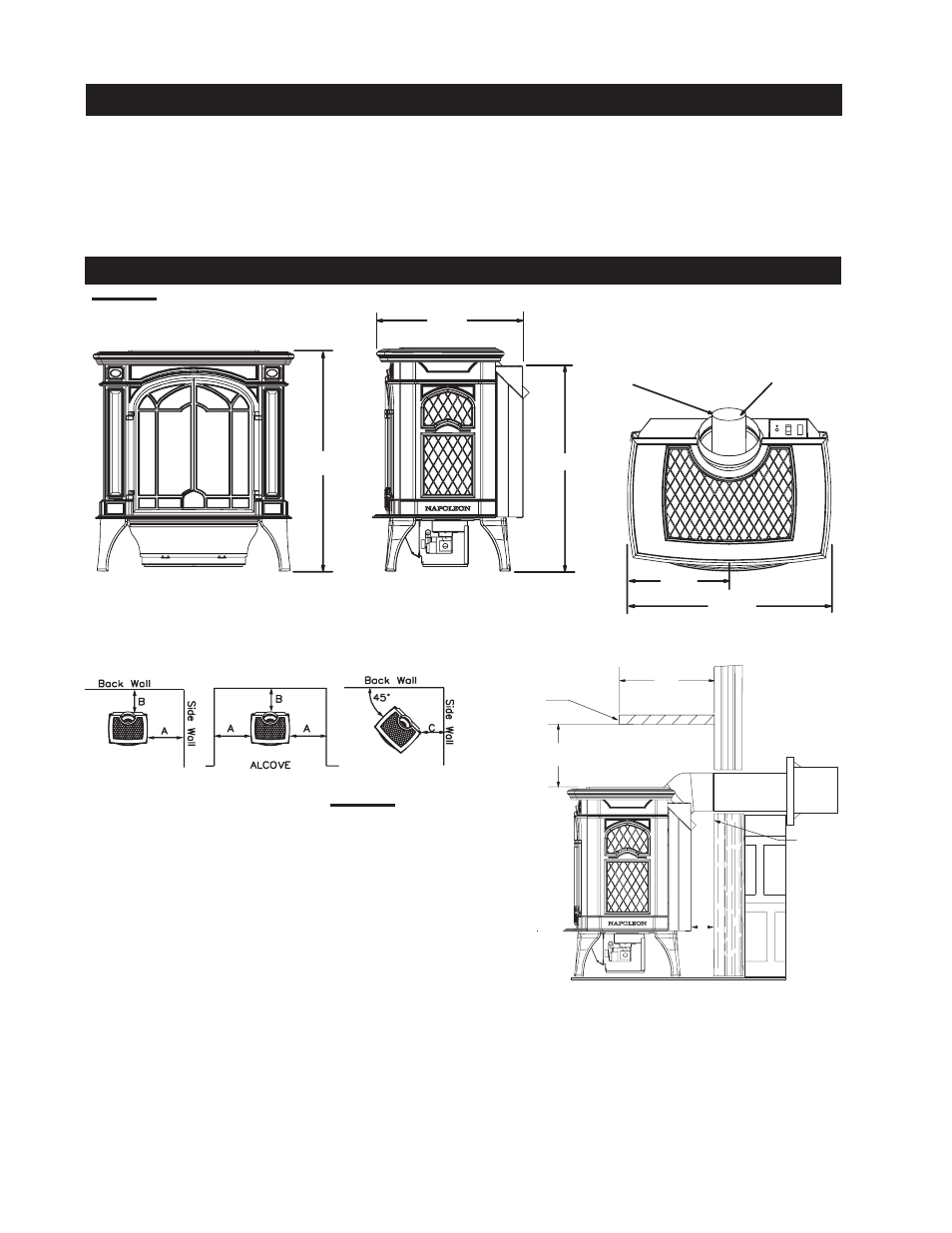

FIGURE 2
LOCATION & CLEARANCES
STOVE DIMENSIONS
FIGURE 1
7" DIA.
23 1 /
2
"
12 3 /
4
"
23 5 /
8
" 25 5 /
8
"
17 1 /
2
"
4" DIA.
As long as clearance to combustibles is kept within the re-
quired distances, the most desirable and benefi cial location
for a Napoleon stove is in the centre of a building, thereby
allowing the most effi cient use of the heat created. The loca-
tion of windows, doors and the traffi c fl ow in the room where
the stove is to be located should be considered. If possible,
you should choose a location where the vent will pass through
the house without cutting a fl oor or roof joist.
8”
MIN.
12”
MAX. MANTEL WIDTH
COMBUSTIBLE
MATERIALS
COMBUSTIBLE
MANTEL OR TRIM
MATERIAL
2”
When the
fi replace is rear
vented, a mantel
or shelf may be
installed above
the GDS25 at a
minimum
distance of 8".
MANTEL OR SHELF CLEARANCES:
