4

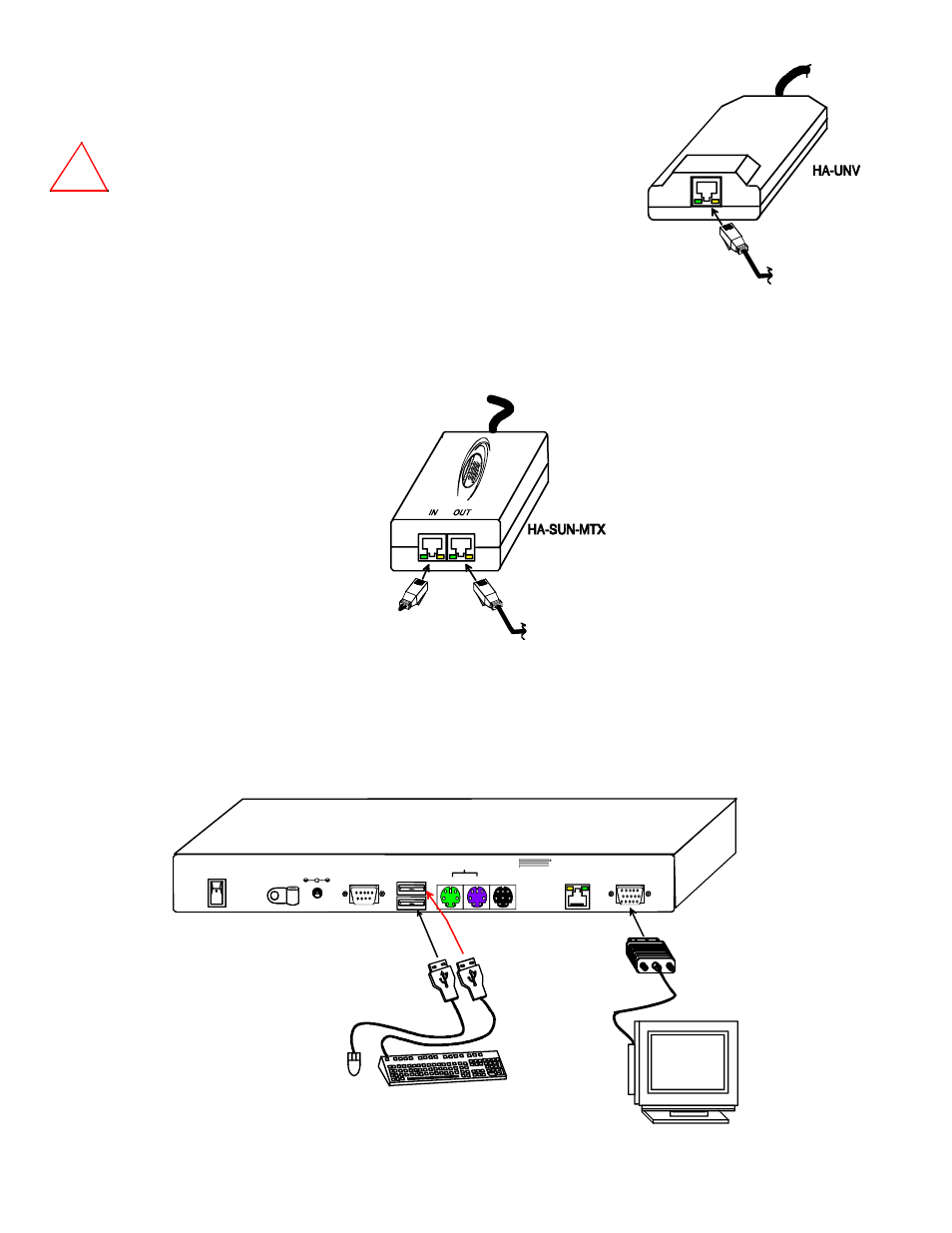

(Rear View)

CAT5 Cable
to Matrix Switch

Cable to CPU


3. Connect a CAT5 cable from the "OUT" port on each Host Adapter to a "CAT5" port on the PRIMUX KVM

Matrix Switch.

4. Connect the Terminating Plug (supplied with Host Adapter) to the "IN" port on each Host Adapter.

WARNING: Never connect the PRIMUX Host Adapter, User Station, or Matrix
Switch to an Ethernet card, Ethernet router, hub or switch or other Ethernet
RJ45 connector of an Ethernet device.
Damage to devices connected to
the Ethernet may result.








NOTE: HA-SUN-MTX Host Adapters require the insertion of a Terminating Plug (included) into the "IN" port on the Host Adapter.
Be sure to insert this plug.




5. Connect the user keyboard and mouse to the proper "DEVICES" port(s) (USB or PS/2) on the PRIMUX-UZR User Station. (USB type

devices are shown in the following image.)

6. Connect the user monitor to the "MONITOR" port on the User Station.


























!

Cat5

M onitor

SUN

Devices

PS/2

Devices

M ouse Kybd

RS232

USB

Devices

5VDC
2A

NET WO RK

T ECHNO LOG IES

INCO RPO RATED

Tel:330-5 62-7 070

Fax:330-562-1999

1275 Da nner Dr

Aurora, OH 44202

w ww .ne tworkte chinc.com

NTI

R

+

Rear View of PRIMUX-UZR User Station

Rear View of PRIMUX-UZR User Station

VGA

Multi-Scan

Monitor

USB

Mouse

USB Keyboard

(Rear View)

CAT5 Cable
to PRIMUX Switch

Cable to CPU

Terminating

Plug (Supplied)
