3


Hardware Setup

1. Disconnect power from each CPU to be connected. (If your CPU fully supports hot-plugging, powering-down will not be necessary).

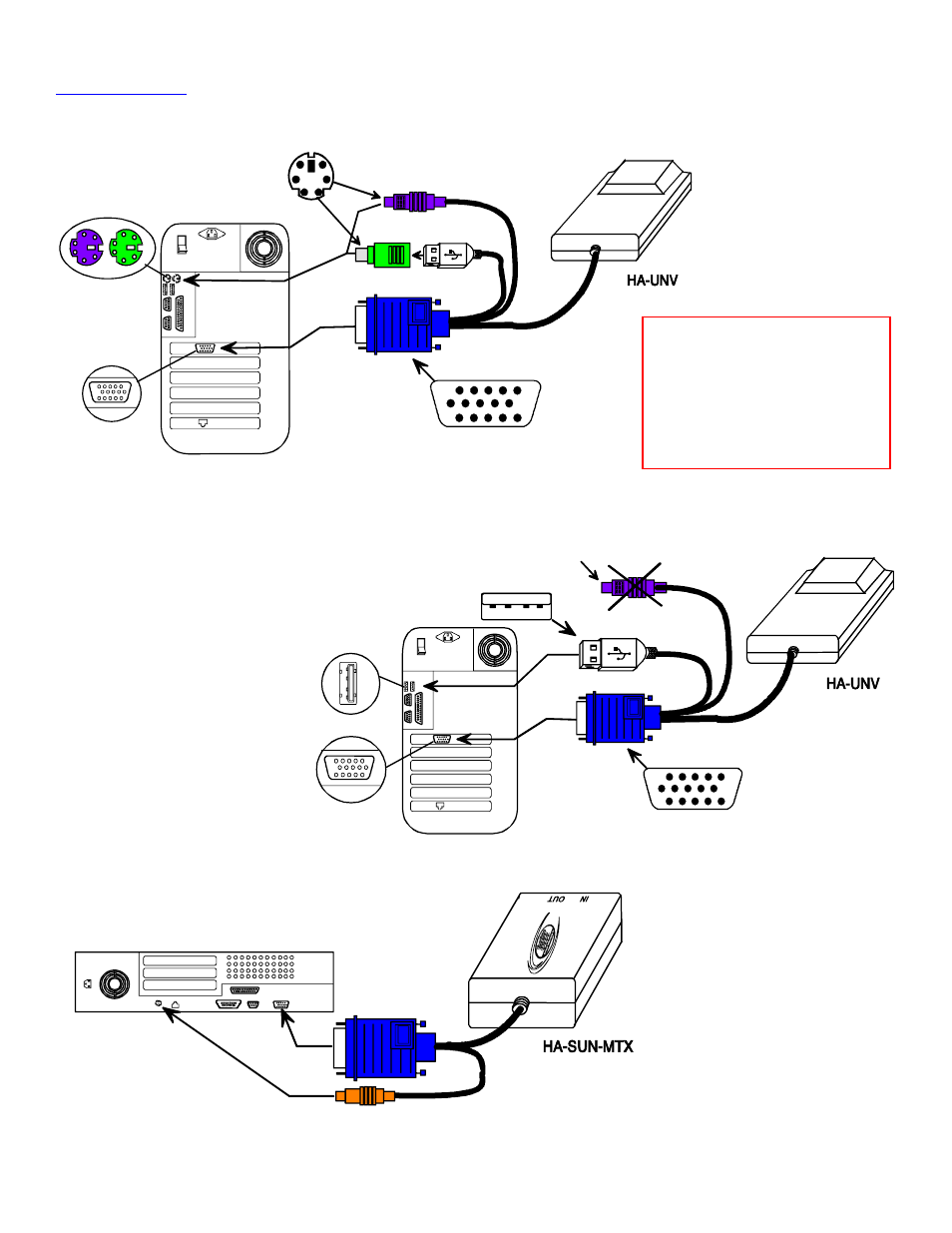

2. Plug the appropriate Host Adapter into the devices and video ports on the back of each CPU.































































Rear View of Legacy SUN CPU

(Front View)

devices

video

Note: When hotplugging the
mouse and keyboard cables into
a PS/2 CPU, be sure to connect
the mouse cable first, then the
keyboard cable. Failure to
connect in this order may cause
the mouse to not be recognized
by the CPU.

(Front View)

Rear View of PS/2 CPU

15HD male
video connector

15HD female

video connector

6 pin miniDIN
female connectors

6 miniDIN

male connectors

PS/2 keyboard (purple)

USB-PS/2 Adapter

(mouse)

(Front View)

Rear View of USB CPU

15HD male
video connector

15HD female

video connector

USB Type A male

USB Type A

device port

PS/2 Keyboard Connector cannot be used
when the USB connector is plugged directly
into the USB CPU.
