REMOVING THE SPEAKER
After removing the grille, use two small screwdrivers (or needle-nose pliers) to release the snaps
that hold the speaker (and baffle) to the frame. Insert the screwdrivers into the holes in the snaps
and exert force straight down (towards the woofer) until the snaps release, as shown in
Figure 21.
Once the snaps release, the speaker can be tilted away from the frame to be removed.
NOTE: DO NOT ATTEMPT TO USE THE FRAME FOR LEVERAGE, AS THIS MAY DAMAGE THE SURFACE OF
THE FRAME.
SPECIFICATIONS
Recommended Amplifier Power Nominal Impedance
10 to 150 watts per channel 4 ohms
Frequency Response Sensitivity
65 Hz to 21 kHz, +/- 3 dB 89 dB with 2.83 V pink noise input,
measured at 1 meter on axis
Frame Dimensions Hole Cut-Out Dimensions
8-1/4" x 14-1/2" 7-1/8" x 13-1/4"
Depth Behind Wall
3-1/2" (based on 1/2" drywall)
Wiring Requirements
We recommend using 16- to 18-gauge speaker wire for runs up to 80 feet and
14-gauge speaker wire for runs up to 200 feet. The connectors will accommodate
12- to 22-gauge wire.
23

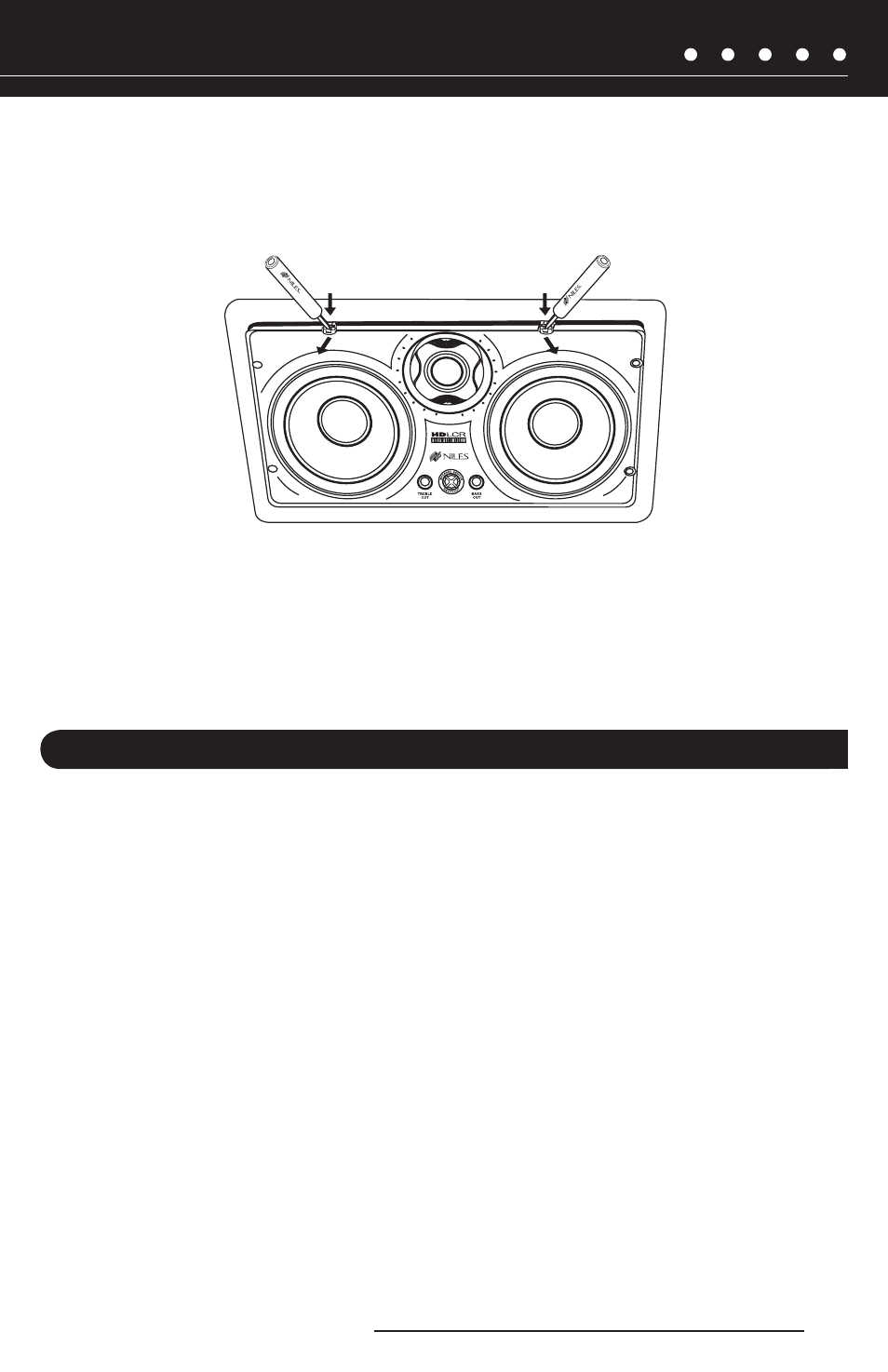

Figure 21. Removing the HDLCR speaker baffle from its frame.
