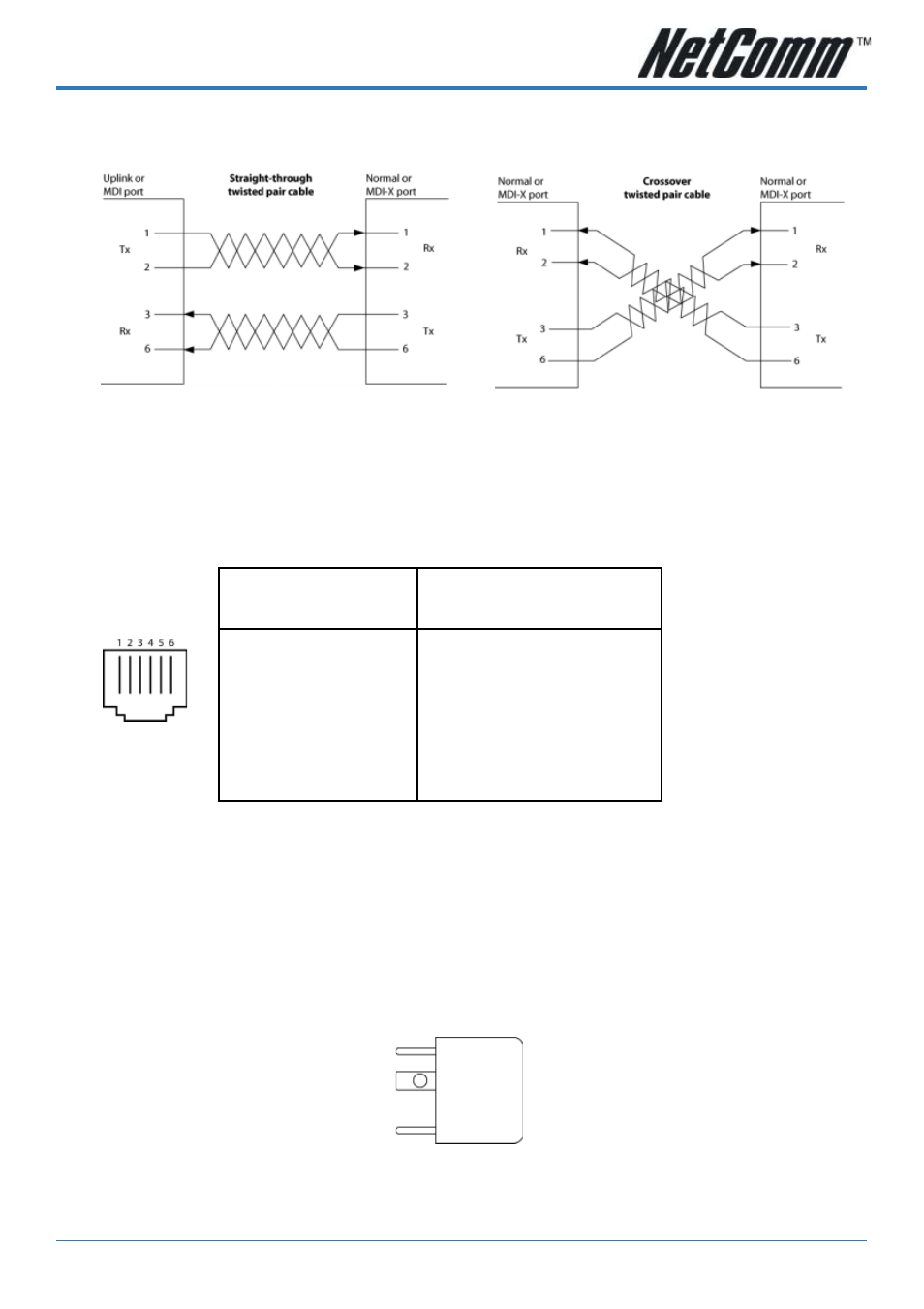

Straight and crossover cable configuration
Figure 3
Figure 4
RJ11 connector and cable
An RJ-11 connector is the small, modular plug used for most analog telephones. It has six pin
slots in the head, but usually only two or four of them are used.
Figure 5
605 to RJ-11 adapter
The 605 to RJ-11 adaptor is provided to comply with the older 610 Telstra wall socket. The 605
to RJ-11 adapter may be used to convert the supplied RJ-11 cable, if the older connection is
required.
RJ-11 Connector
Pin Assignment
Normal Assignment
1
Not Connected
2
Not connected
3
Line
4
Line
5
Not Connected
6
Not Connected
