9

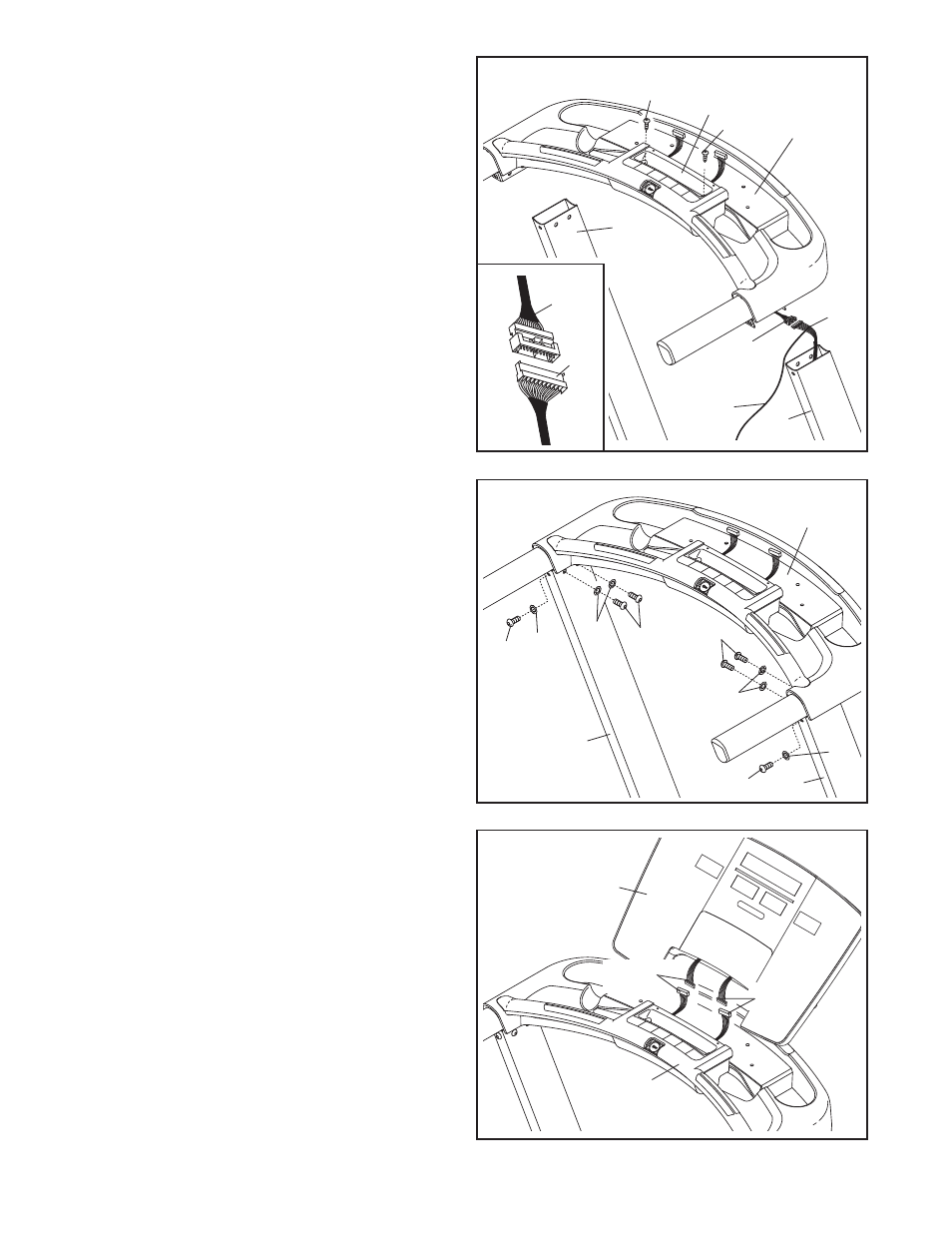

7. Attach the Tray (90) to the handrail assembly
with two #8 x 1/2" Screws (1).
With the help of a second person, hold the
handrail assembly near the Right Upright (78)
and the Left Upright (74). Connect the Upright
Wire (38) to the console assembly wire.
See the
inset drawing. The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again.
IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Remove the long wire tie from the Upright Wire
(38).
1
78
74
1
Console
Wire
Wire Tie
7
8. Set the handrail assembly on the Uprights (74,
78). Be careful not to pinch the wires.
Attach the handrail assembly to the Uprights
(74, 78) with six 5/16" x 1" Bolts (7) and six
5/16" Star Washers (10) as shown.
See assembly steps 4 and 6. Firmly tighten
the 3/8" x 4" Bolts (6).
7
10
74
Handrail
Assembly
8
9. Hold the console assembly near the handrail as-
sembly. Connect the two wires from the console
assembly to the two wires from the handrail as-
sembly.
See the inset drawing in step 7. The
connectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again.
IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON.
Handrail
Assembly
Console
Assembly
9
38
Console
Wire
Handrail
Assembly
38
78 7
7
7
10
10
10
Wires
Wires
90
