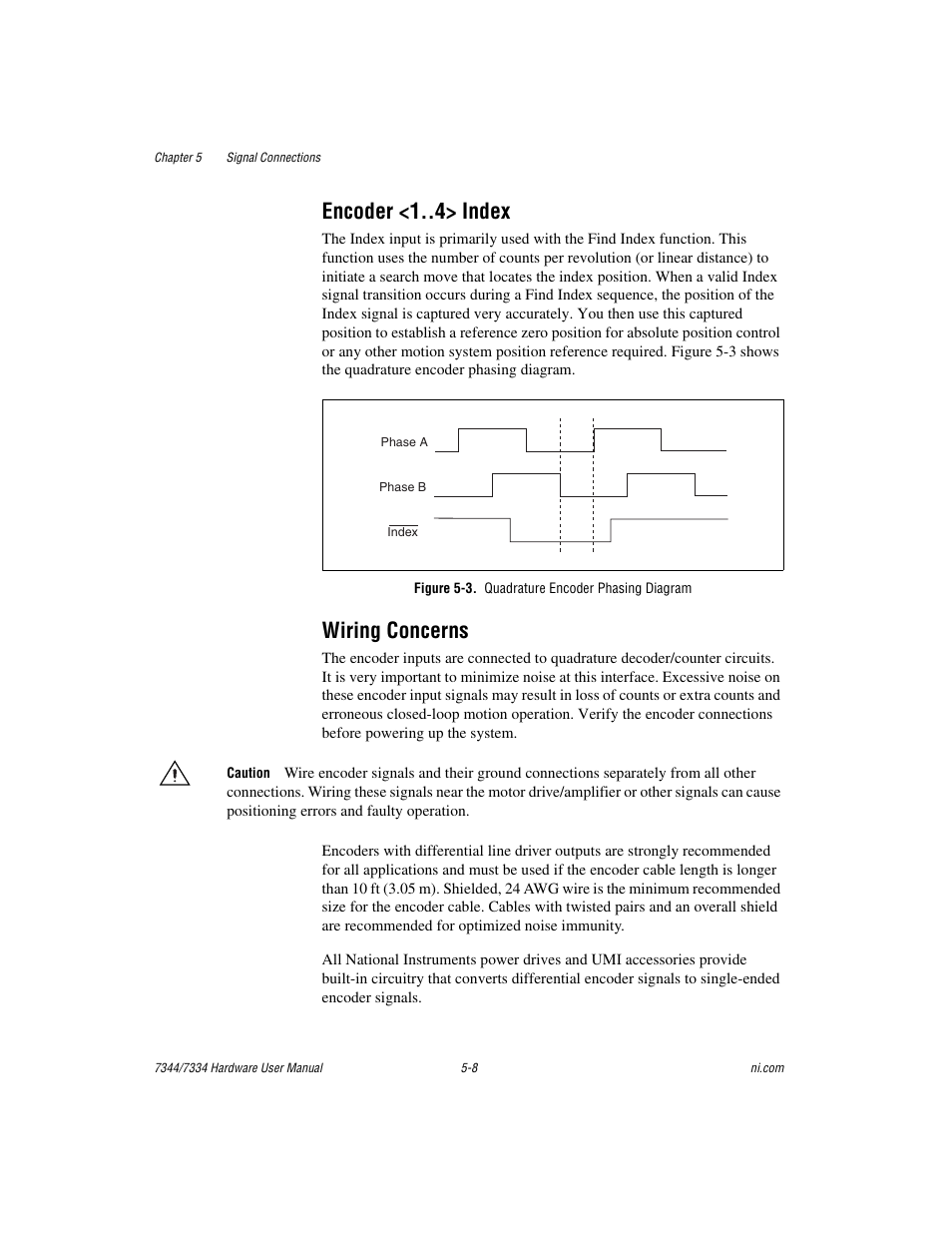

Encoder <1 > index, Wiring concerns, Figure 5-3. quadrature encoder phasing diagram – National Instruments 7334 User Manual

Page 33: Encoder <1 > index -8 wiring concerns -8, Figure 5-3, Quadrature encoder phasing diagram -8

Encoder <1 > index, Wiring concerns, Figure 5-3. quadrature encoder phasing diagram | Encoder <1 > index -8 wiring concerns -8, Figure 5-3, Quadrature encoder phasing diagram -8 | National Instruments 7334 User Manual | Page 33 / 66 Encoder <1 > index, Wiring concerns, Figure 5-3. quadrature encoder phasing diagram | Encoder <1 > index -8 wiring concerns -8, Figure 5-3, Quadrature encoder phasing diagram -8 | National Instruments 7334 User Manual | Page 33 / 66
