NI PMA-1115 User Guide and Specifications
6.
Orient the chassis and PMA-1115 as shown in Figure 5. Install the
remaining M4
× 8 pan-head screws.

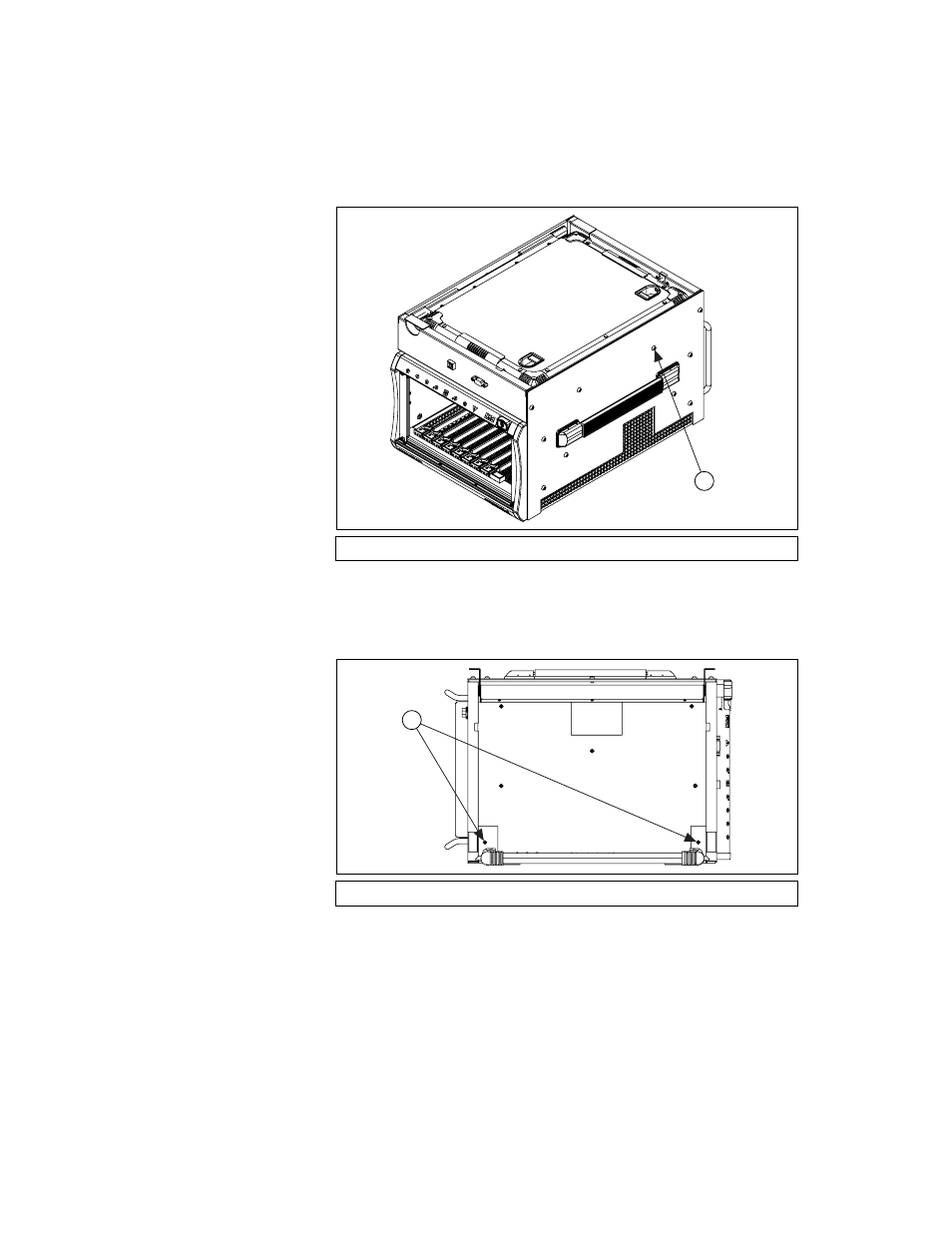

Figure 5. Installing the PMA-1115
7.
Open the keyboard and LCD, as shown in Figure 6. Install the supplied
6-32
× 3/8 flat-head screws in the lower corners of the PMA-1115.
Figure 6. Installing the Lower Mounting Screws
1
M4
× 8 pan-head screws
1
6-32
× 3/8 flat-head screws
1
(4x)
1
