NordicTrack AudioRider NTEX3196.1 User Manual
Page 6

6

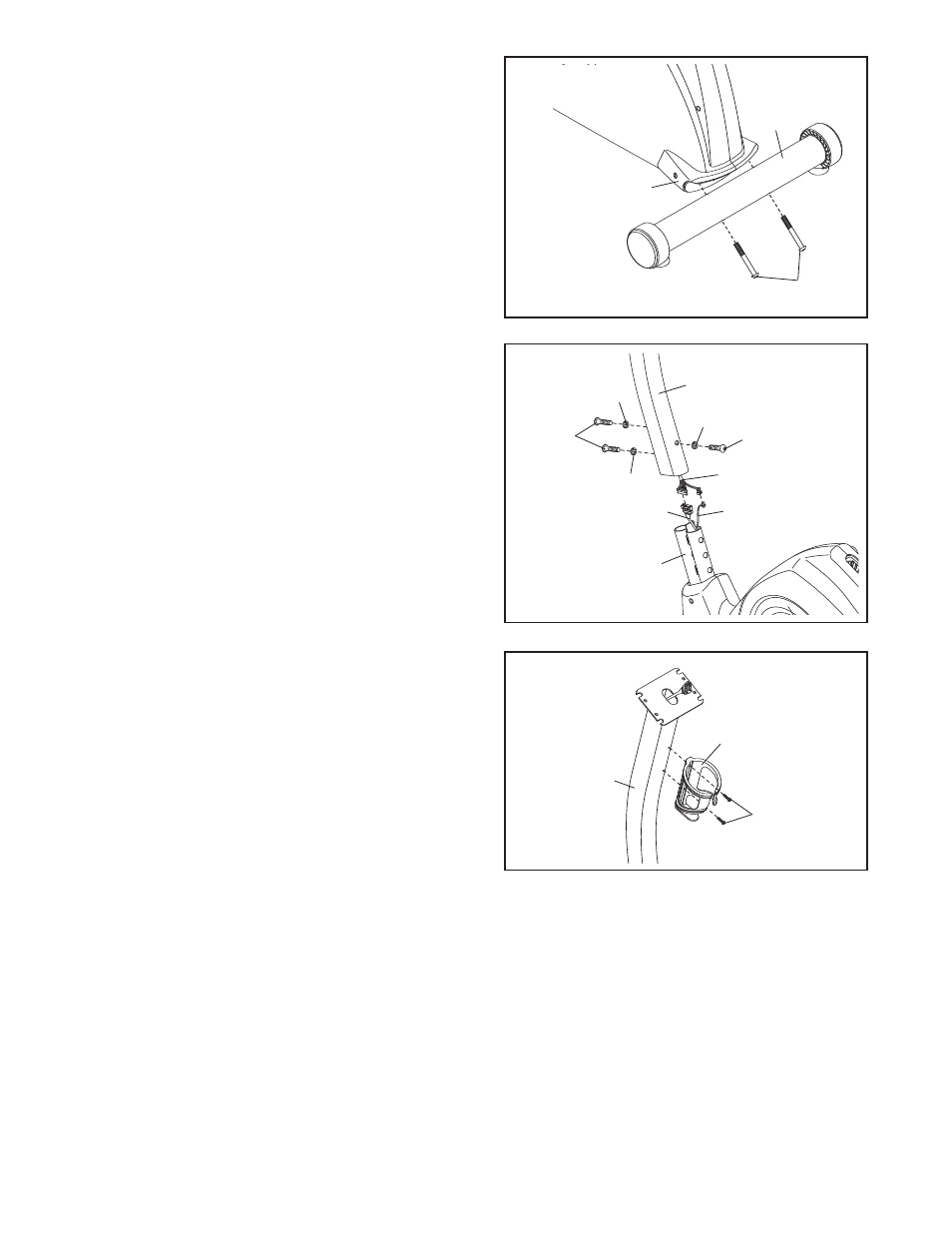

2. Attach the Rear Stabilizer (3) to the Frame (1) with
two M10 x 85mm Button Screws (56).
3. While another person holds the Handlebar Post (6)
near the Frame (1), connect the Upper Wire
Harness (51) to the Lower Wire Harness (50) and
the Power Jack Wire (65). Next, pull the excess
Upper Wire Harness out of the top of the Handlebar
Post, and slide the Handlebar Post onto the Frame.
Be careful not to pinch the Wire Harnesses.
Attach the Handlebar Post (6) to the Frame (1) with
three M10 x 50mm Button Screws (48) and three
M10 Split Washers (55); tighten the two Button
Screws in the front of the Handlebar Post first,
and then tighten the third Button Screw.
1
56
3
3
55
55
55
48
48
1
51
65
50
6
2
4
6
18
47
4. Attach the Water Bottle Holder (18) to the
Handlebar Post (6) with two M4 x 19mm
Screws (47).
