Chapter 5 Automotive Diagnostic Command Set API for LabVIEW
© National Instruments Corporation 5-111 Automotive Diagnostic Command Set User Manual
UDS SendKey.vi
Purpose
Executes the SecurityAccess service to send a key to the ECU.

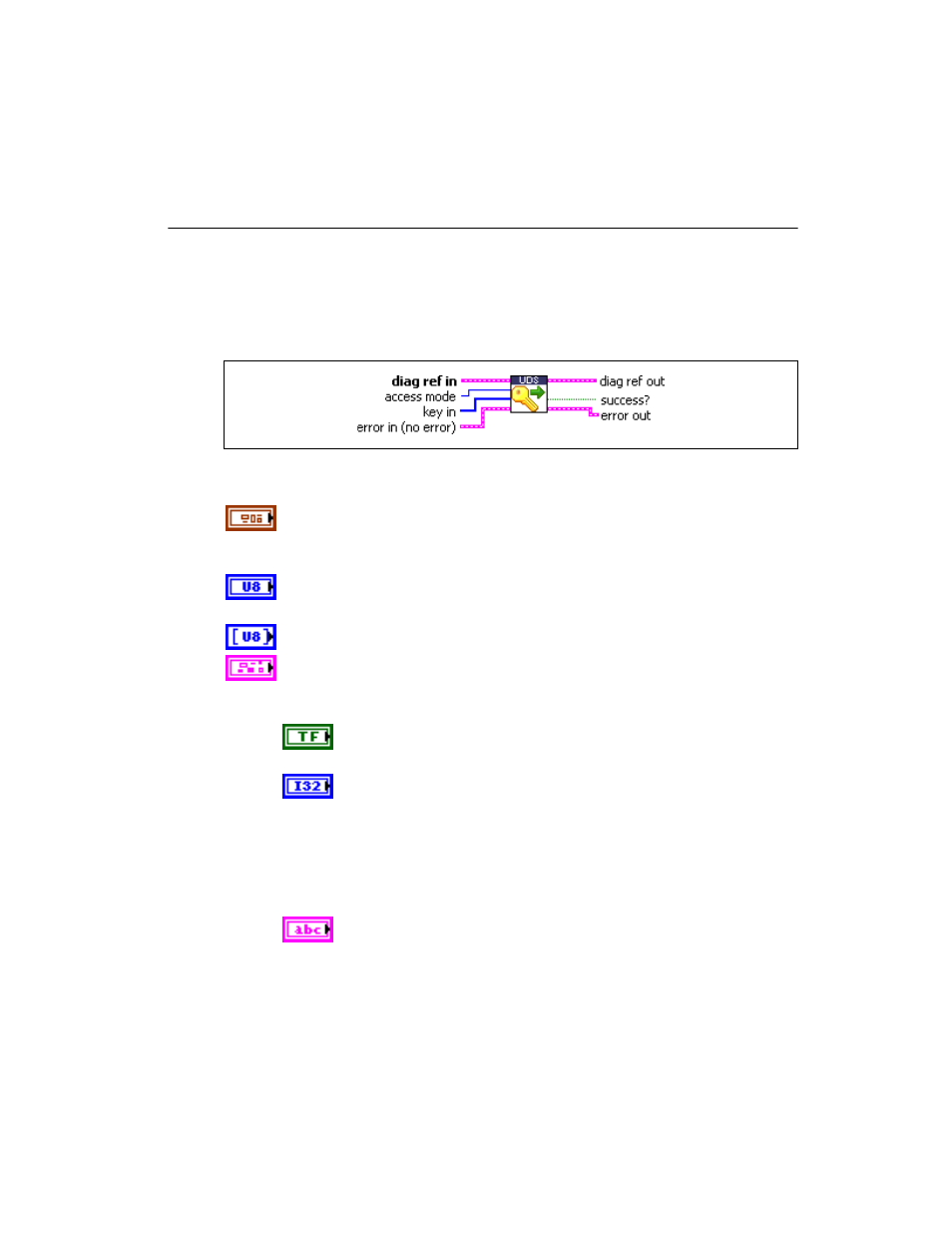

Format
Input
diag ref in specifies the diagnostic session handle, obtained from Open
Diagnostic.vi and wired through subsequent diagnostic VIs. Normally, it is
not necessary to manually manipulate the elements of this cluster.
access mode indicates the security level to be granted. The values are
application specific. This is an even number, usually 2.
key in defines the key data to be sent to the ECU.
error in is a cluster that describes error conditions occurring before the VI
executes. If an error has already occurred, the VI returns the value of the
error in cluster to error out.
status is TRUE if an error occurred. This VI is not executed when
status is TRUE.
code is the error code number identifying an error. A value of 0
means success. A negative value means error: the VI did not
execute the intended operation. A positive value means warning:
the VI executed intended operation, but an informational warning
is returned. For a description of the code, wire the error cluster to
a LabVIEW error-handling VI, such as the Simple Error
Handler.
source identifies the VI where the error occurred.
