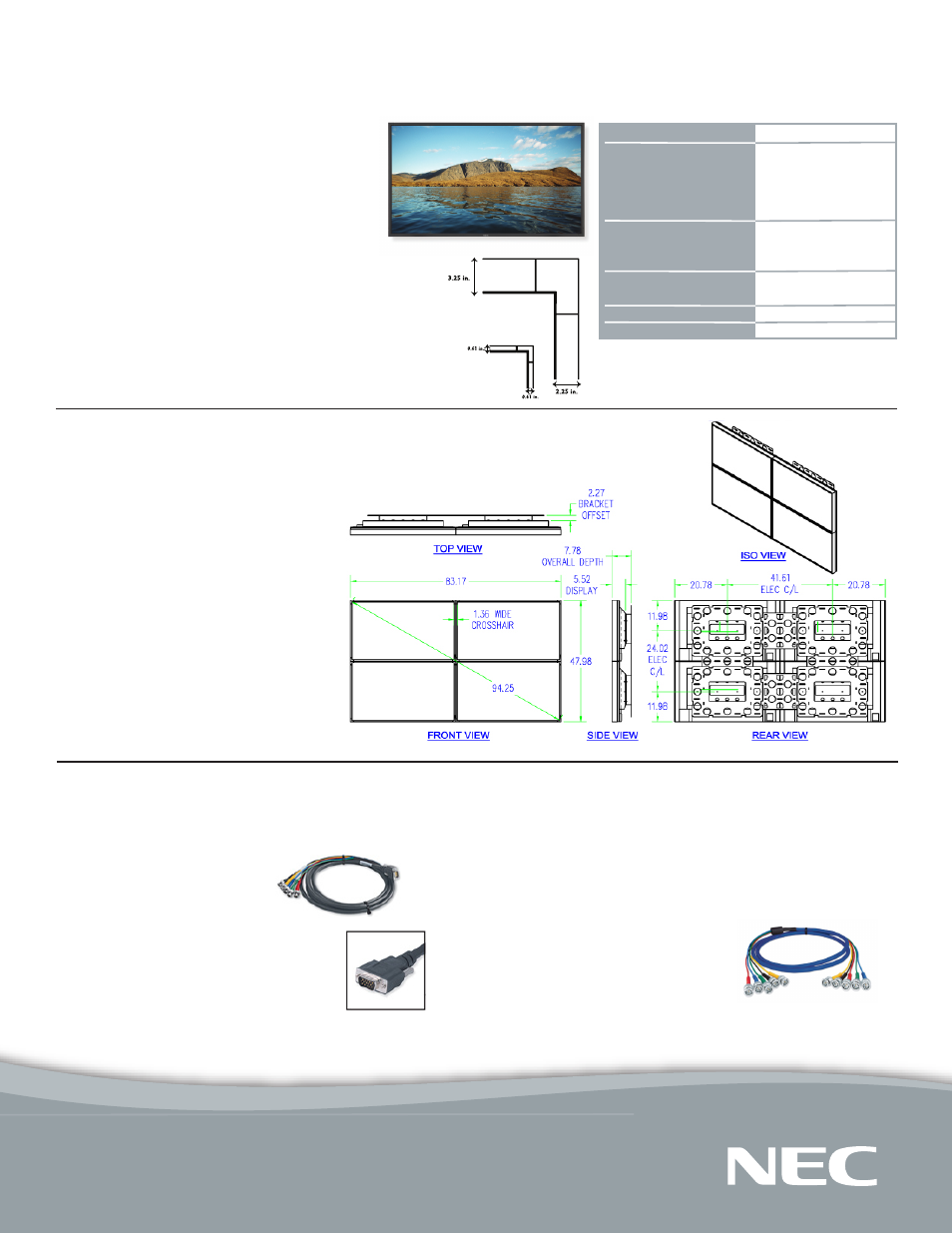

NEC 2x2 LCD TileMatrix Video Wall Solution (LCD4620-TMX4)
Digital Factory
PerfectAlign 2x2
Video Wall System
Designed to support NEC’s ultra-thin-bezel
large-screen LCD displays, PerfectAlign
allows installers to quickly assemble any
video wall configuration imaginable. Easy
to install and very simple to maintain, this
mounting system ensures that every dis-
play is “perfectly aligned” the first time.
46” NEC MultiSync LCD4620-2-IT (4)
Your digital signage applications will never look
the same. The 46” NEC MultiSync LCD4620
gives your messages and images the “wow fac-
tor” they need to reach audiences with maximum
impact. In addition to the exclusive Digital
Signage Technology Suite, which boasts 20+
advanced features, this display touts an ultra-thin
bezel for tiled-wall configurations, a built-in ex-
pansion slot that future-proofs it for emerging technologies
and HD resolution that turns heads and draws crowds.
In addition, Onsite Overnight Service (OnsiteOn-46) ensures
that a comparable new or refurbished LCD unit will be
replaced by a technician within one business day of a
customer’s call.
LCD4620
Bezel Width
Industry Norm
Bezel Width
LCD4620-2-IT
46”
700 cd/m 2
1800:1
178° Vert., 178° Hor.
(89U/89D/89L/89R) @ CR>10
256 RGB Level, more than 16 million
16:9
DVI-D
Analog D-sub
Analog BNC
RS232, DDC/CI
Daisychain BNC - RGB3
RS-232 for multiple monitor control
1366 x 768
79.6 lbs. / 36.1 kg
Model
Display
Viewable Size Image
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Display Colors
Screen Aspect Ratio
Input
RGB1
RGB2
RGB3
External Control
Output
RGB
Control
Native Resolution
Net Weight (without stand)
Extron Cables
SYM BNCM Series
15-pin HD Male to BNC Male Mini High
Resolution Cables
• High-performance cable designed for
transmission of computer video
• Utilizes Extron MHR-5 Cable, part
# 22-020-03
• Smaller diameter, more flexible and
easier to pull than regular coax cable,
improving ease of installation
• NEC CM-rated, non-plenum cable
• Terminated with five high-quality 75-ohm
BNC male connectors at one end
MHR-5P BNC Series
BNC Male to Male Five Conductor MHR - Mini High
Resolution Cables - Plenum
• High-performance coaxial cable for high-
resolution video signal distribution
• Lighter, smaller in diameter and more convenient
to install than standard coaxial cable
• Provides five 26 AWG, 75-ohm coaxial
conductors in a single jacket
• Double-shielded to reduce crosstalk,
maintaining the integrity of the video signal
• NEC CMP rated, plenum cable
• Terminated with high-quality 75-ohm
BNC connectors
