ALL DUCT CONNECTION COLLARS ARE 5" DIAMETER
FRESH AIR
FROM
OUTSIDE
EXHAUST
AIR FROM
BUILDING
FRESH AIR
TO BUILDING
EXHAUST AIR
TO OUTSIDE
TOP VIEW
SERVICE CLEARANCE FROM
BOTTOM OF UNIT IS MINIMUM 3'0"
FRESH AIR
FROM OUTSIDE
EXHAUST AIR
FROM BUILDING
EXHAUST AIR
TO OUTSIDE
FRESH AIR
TO BUILDING
HANGING
STRAPS
DRAIN
CONNECTION
9”
19”
18”
PLUG-IN CONNECTOR
FOR CONNECTING TO
REMOTE ELECTRICAL
BOX
Engineering Data Model RNC120F

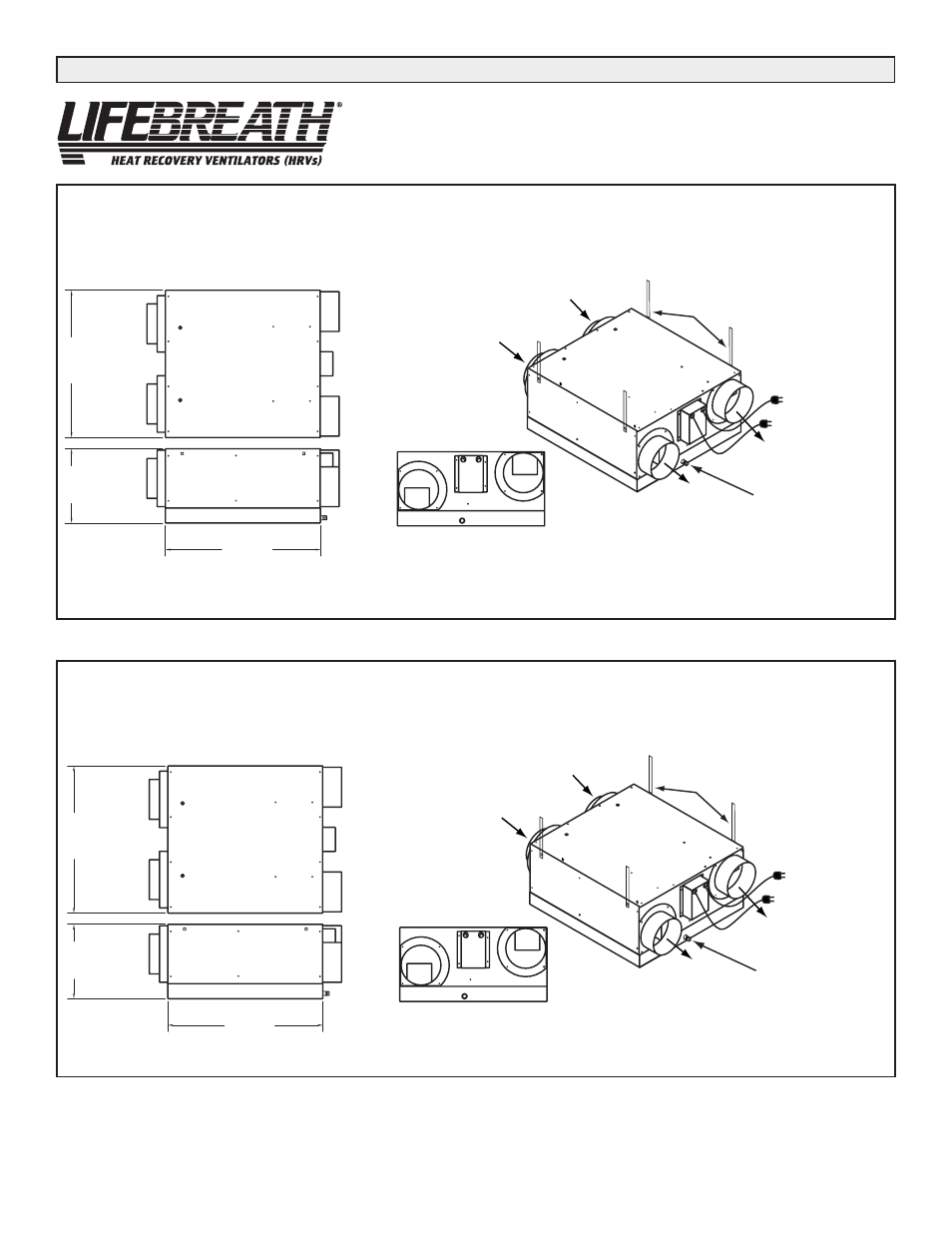

Option 1 - Standard Duct Configuration Dimensions inches
ALL DUCT CONNECTION COLLARS ARE 5" DIAMETER
FRESH AIR
FROM
OUTSIDE
EXHAUST
AIR FROM
BUILDING
FRESH AIR
TO BUILDING
EXHAUST AIR
TO OUTSIDE
TOP VIEW
SERVICE CLEARANCE FROM
BOTTOM OF UNIT IS MINIMUM 3'0"
FRESH AIR
FROM OUTSIDE
EXHAUST AIR
FROM BUILDING
EXHAUST AIR
TO OUTSIDE
FRESH AIR
TO BUILDING
HANGING
STRAPS
DRAIN
CONNECTION
9”
19”
18”
PLUG-IN CONNECTOR
FOR CONNECTING TO
REMOTE ELECTRICAL
BOX
Option 2 - Reverse Duct Configuration Dimensions inches
