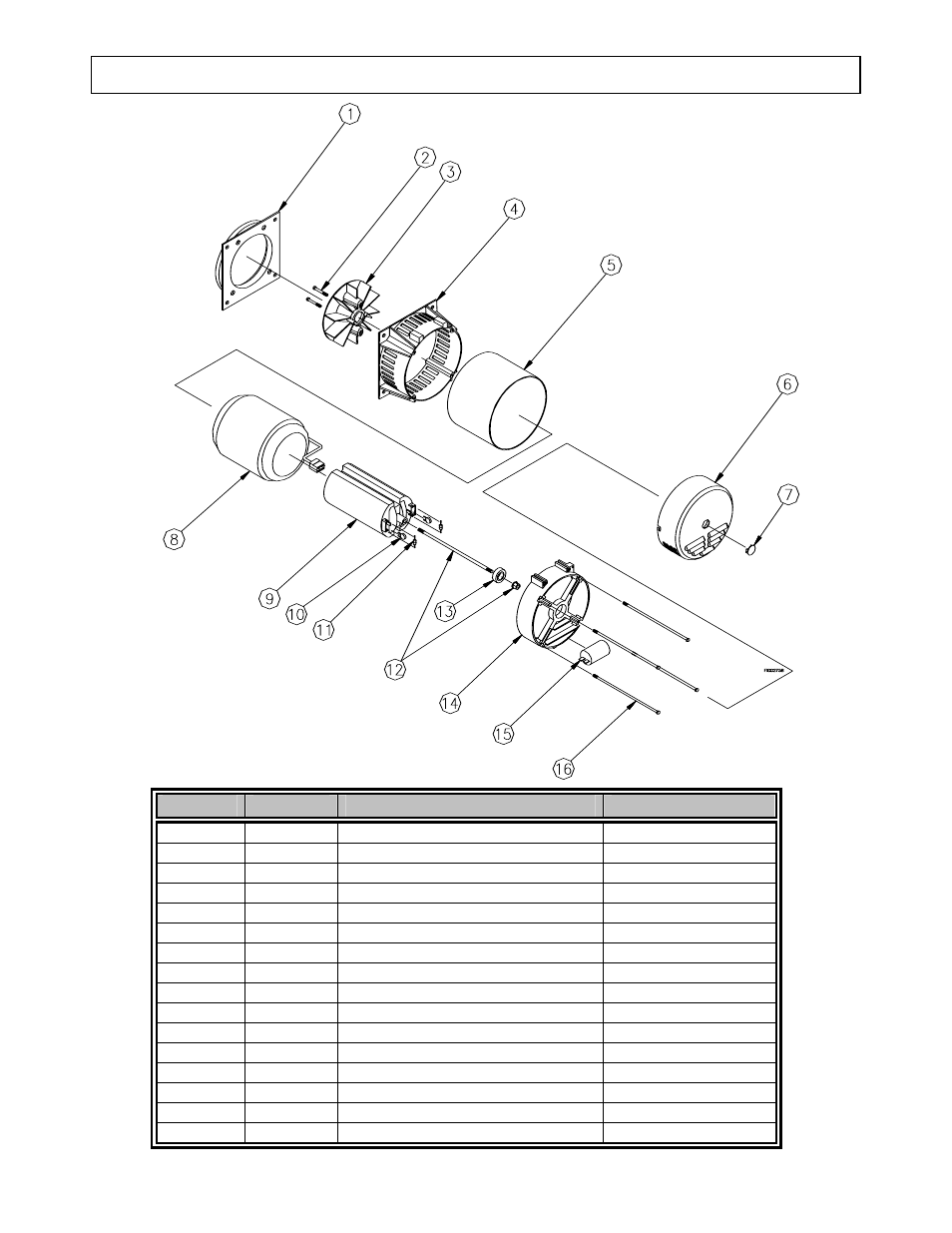

Generator Head Exploded View Rev – N

41

Item #

Part #

Description

Qty

1 779919

Mount

Plate

(J609B)

1

2

779556

Fan Bolts

2

3 779557

Fan

1

4

779920

Drive End Bracket

1

5

779786

Enclosing Band

1

6

777304

End Cover

1

7

38271

End Cover Plug

1

8 779787

Stator

1

9 779788

Rotor

1

10 307481

Varistor

2

11 779789

Diode

2

12

779790

Securing Stud + Nut

1

13 38276

Bearing

1

14

38278

Non Drive End Bracket

1

15 779791

Capacitor

1

16

779792

Bracket Securing Stud

4
