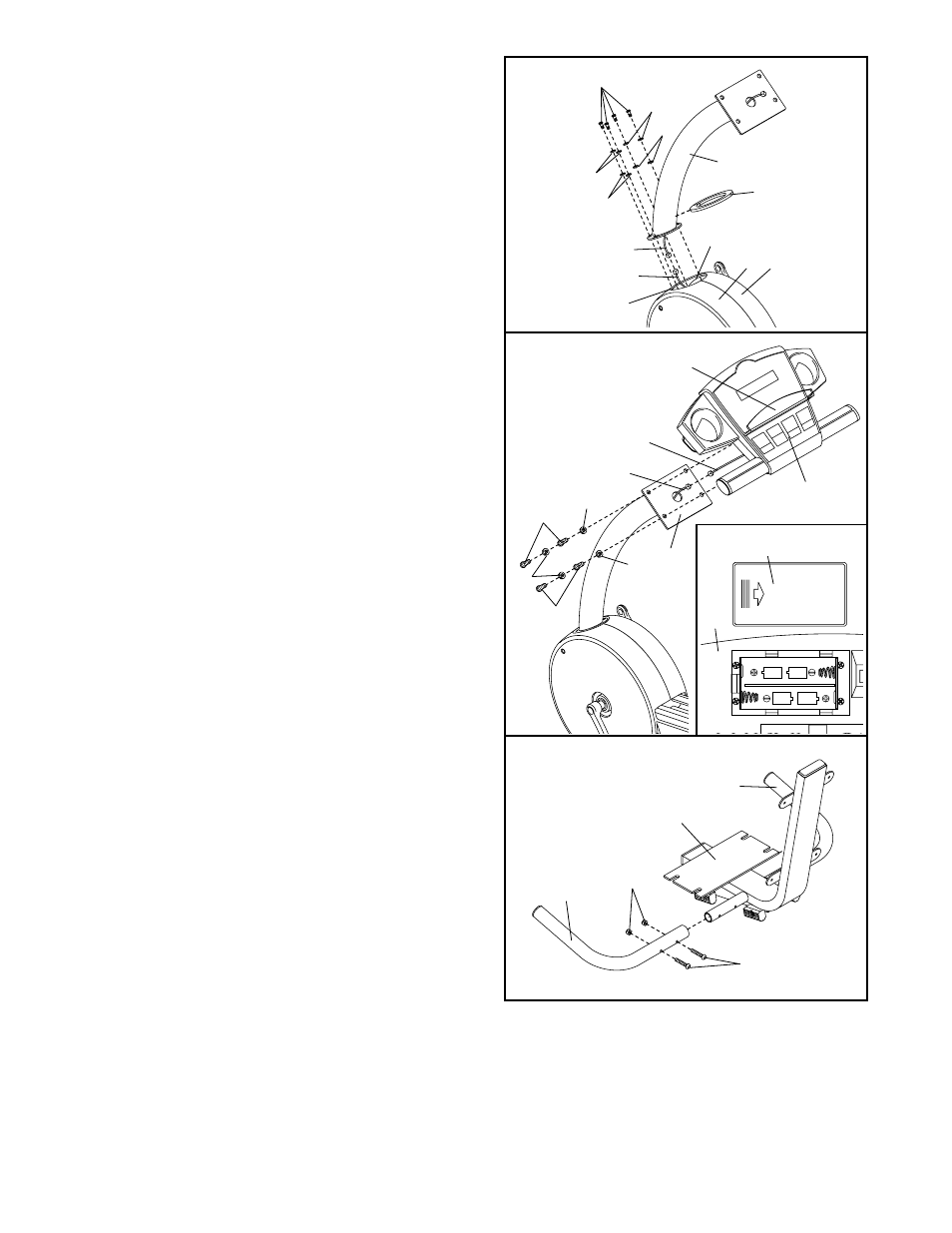

2. Hold the Upright (2) near the front of the Frame (1)
as shown. Connect the Extension Wire (66) to the
Wire Harness (22). Attach the Upright to the Frame
with four M6 x 12.7mm Button Screws (62), four M6
Split Washers (57), and four M6 Flat Washers (67).
Slide the Collar (48) onto the Upright (2). Align the
slit in the Collar with the seam between the Side
Shields (4, 5). Snap the Collar into the Side Shields.
3. The Console (3) requires four “D” batteries (not
included). Alkaline batteries are recommended. To
install batteries, turn the Console facedown and
remove the battery cover, as shown in the inset
drawing. Insert four batteries into the Console. Make
sure that the negative ends of the batteries
(marked “—”) are facing the springs in the
Console. Then, reattach the battery cover.
Hold the Console (3) near the Upright (2). Connect
the Extension Wire (66) to the console wire. Attach
the Console to the Upright with four Console
Washers (45) and four Console Screws (63).
Snap the bookrack onto the Console (3) in the indicat-
ed location.
2
22
1
4 5
3
66
3
Console
Wire
Bookrack
63
45
45
45
63
2
57
67
2
48
Seam
62
57
66
67
4. Attach the Handlebars (11) to the Seat Carriage (6)
with four M6 x 35mm Bolts (70) and four M6 Nylon
Locknuts (71).
4
6
11
71
11
70
