3) The Serial Interface
The Signal Level
The signal level for the RS-232C is
±
12v.
The Data type
Parity bit : No parity.
Data length : 8 bits.
Stop bit
: 1 bit.
The Transmission speed
9600, 4800, 2400, or 1200 baud can be selected by using Dip Switches 1 and 2 on
the back of the player: The Factory default setting is 4800 BAUD.
NOTE: A BAUD rate of 4800 or 1200 can also be set by sending a Level III
command to Set Register C. See page 3-42 for details.
CLD-V5000 Level III • Chapter Two
2-4
TP 121 v. 1.0 • 1/96
CLD-V5000 Level III User’s Manual
0
1

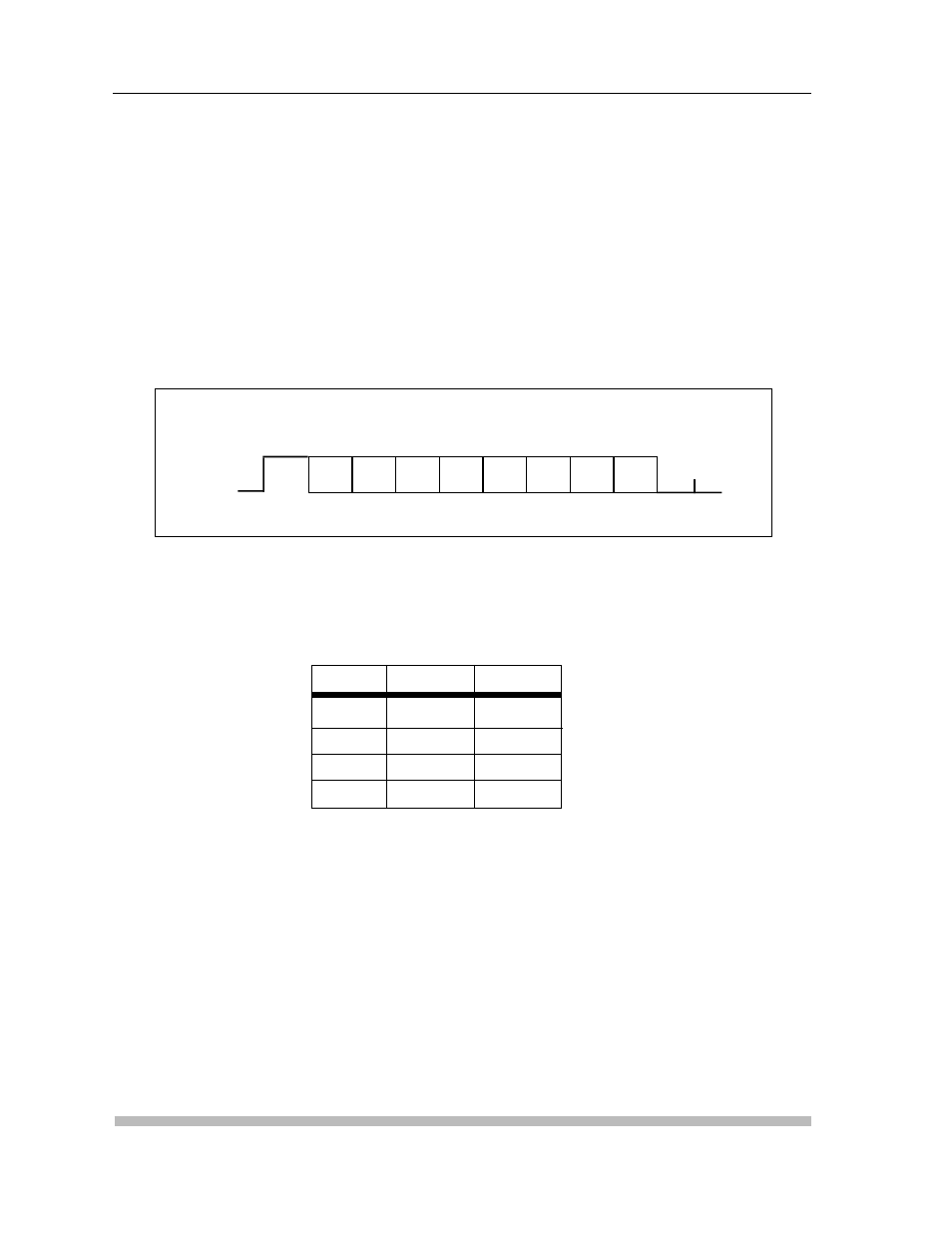

START STOP
D0 D1 D2 D3 D4 D5 D6 D7
1 START + 8 DATA + 1 STOP
Figure 2-E
BAUD SW1 SW2
9600 UP UP
4800 DOWN UP
2400 UP DOWN
1200 DOWN DOWN
