10

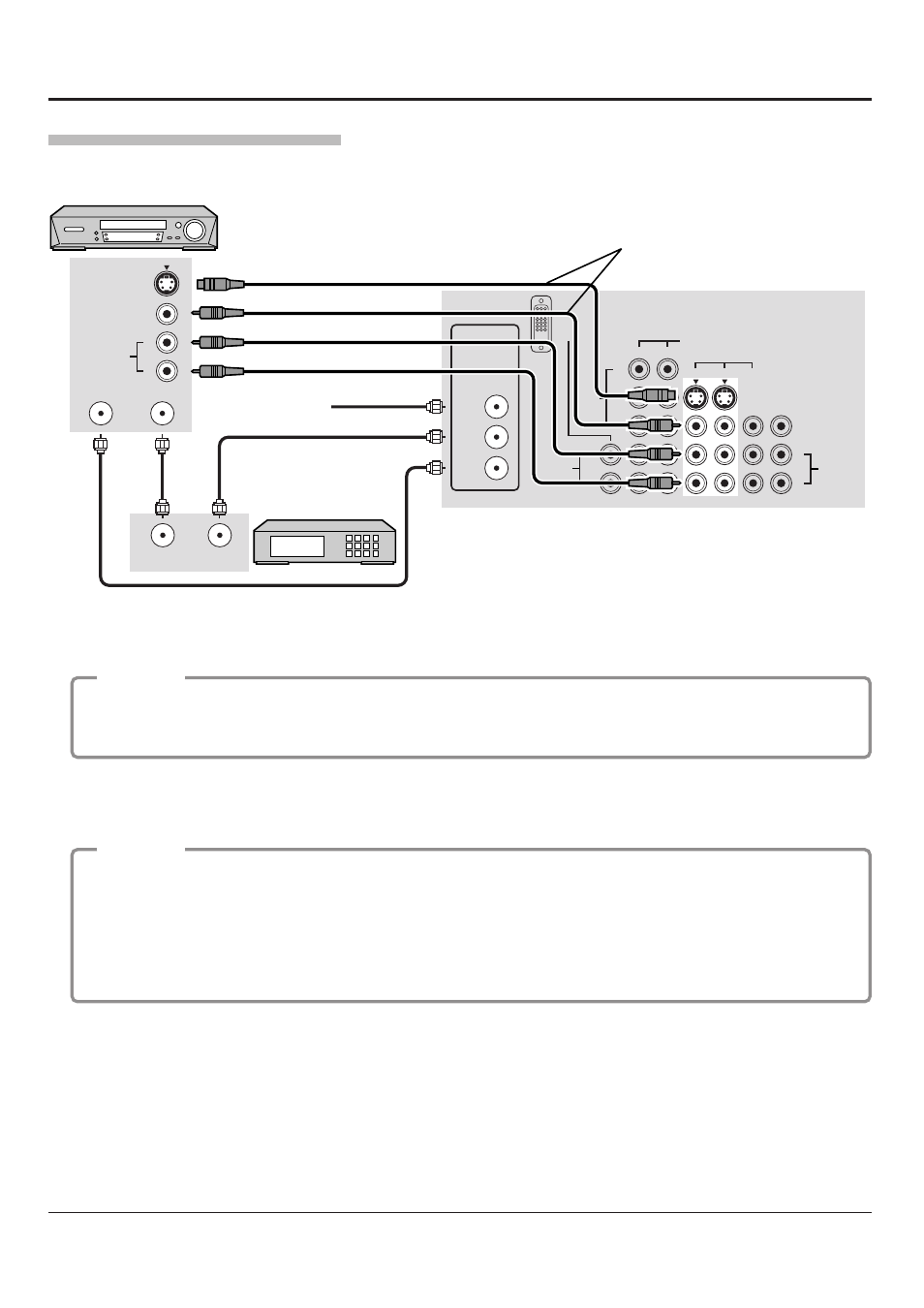

Cable Connection

Follow this diagram when connecting your television to both a VCR and a cable box.

Notes:
(1) Similar connections are available at the INPUT 1, 2, 3, 4 input terminals.
Input 4 is located on the front of the unit.
Select the desired VIDEO input position by pressing the TV/VIDEO button. (See page 17)
(2) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the video

input terminal are connected at the same time.

Note: To use special features such as Favorite Channels and Channel Captions, ANT1 must be selected in the SET UP

menu (see page 20).

Note: The remote control must be programmed with supplied codes to operate the VCR and cable box

(see page 49 - 51).

Note: To view a different channel while recording:

• Select ANT1 in the SET UP menu.
• Press the TV/VIDEO button on the remote control to TV mode.
• Tune the television to a program (except another premium cable channel).

Procedure

1. Select ANT2 in the SET UP menu.
2. Tune the television to Channel 3 or Channel 4.
3. Using the cable box, tune to the premium cable channel you would like to view.

Viewing a premium (scrambled) cable channel

Procedure

1. Select ANT2 in the SET UP menu.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected

to your VCR.

3. Turn the VCR ON.
4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.
5. Using your cable box, tune to the premium cable channel you would like to record.
6. Begin recording.

Recording a premium (scrambled) cable channel

VCR and Cable Box Connection

S-VIDEO

VIDEO

ANT INPUT

ANT OUTPUT

ANT INPUT

ANT OUTPUT

DIGITAL

IN

S-VIDEO

COMPONENT VIDEO INPUT

INPUT

P

B

P

R

Y

VIDEO

AUDIO

R

L

TO AUDIO

AMP

R

L

1

2

1

2

3

VIDEO

PROG

OUT

ANT1

ANT2

SPLIT

OUT

AUDIO

R

L

Use either the S-Video or the Video connection.

Incoming Cable

VCR

CABLE BOX

CONNECTIONS ON BACK OF TV

CABLES NOT SUPPLIED
