6
9
75
22
21
6
5
6
18
6
9
33
Console
Wires
Console
Ground
Wire 21

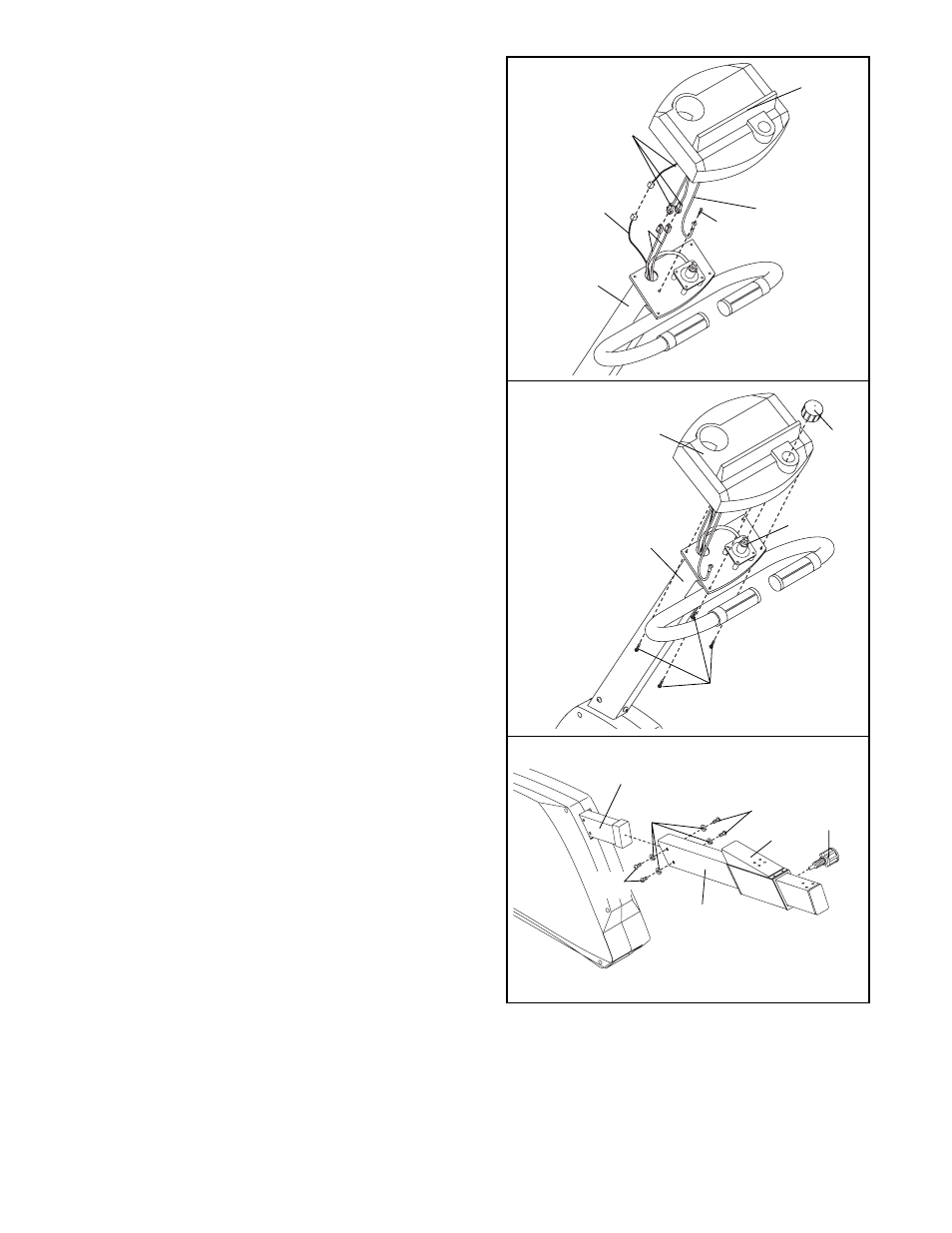

6. Attach the Console (9) to the Handlebar Post (6)
with four M4 x 16mm Screws (21). Make sure that
no wires are pinched between the Console and
the Handlebar Post.
Press the Resistance Knob (75) onto the Resistance
Control (22).
Refer to step 3. Tighten the two M10 x 25mm Button
Screws (71) used in step 3.
5. Hold the Console (9) near the Upright (6) as shown.
Identify the green console ground wire and attach it
to the Upright with an M4 x 16mm Screw (21).
Next, connect the Reed Switch Wire (18) and the
two Pulse Wires (33) to the corresponding wires on
the Console (9).
7. Slide the Carriage Bar (7) onto the indicated tube on
the Frame (1). Attach the Carriage Bar to the Frame
with four M10 x 25mm Button Screws (71) and four
M10 Split Washers (17).
Slide the Seat Carriage (11) onto the Carriage Bar
(7) as shown. Thread the Seat Knob (74) clockwise
into the Seat Carriage until it is tight.
7
11
74
17
71
71
1
7
