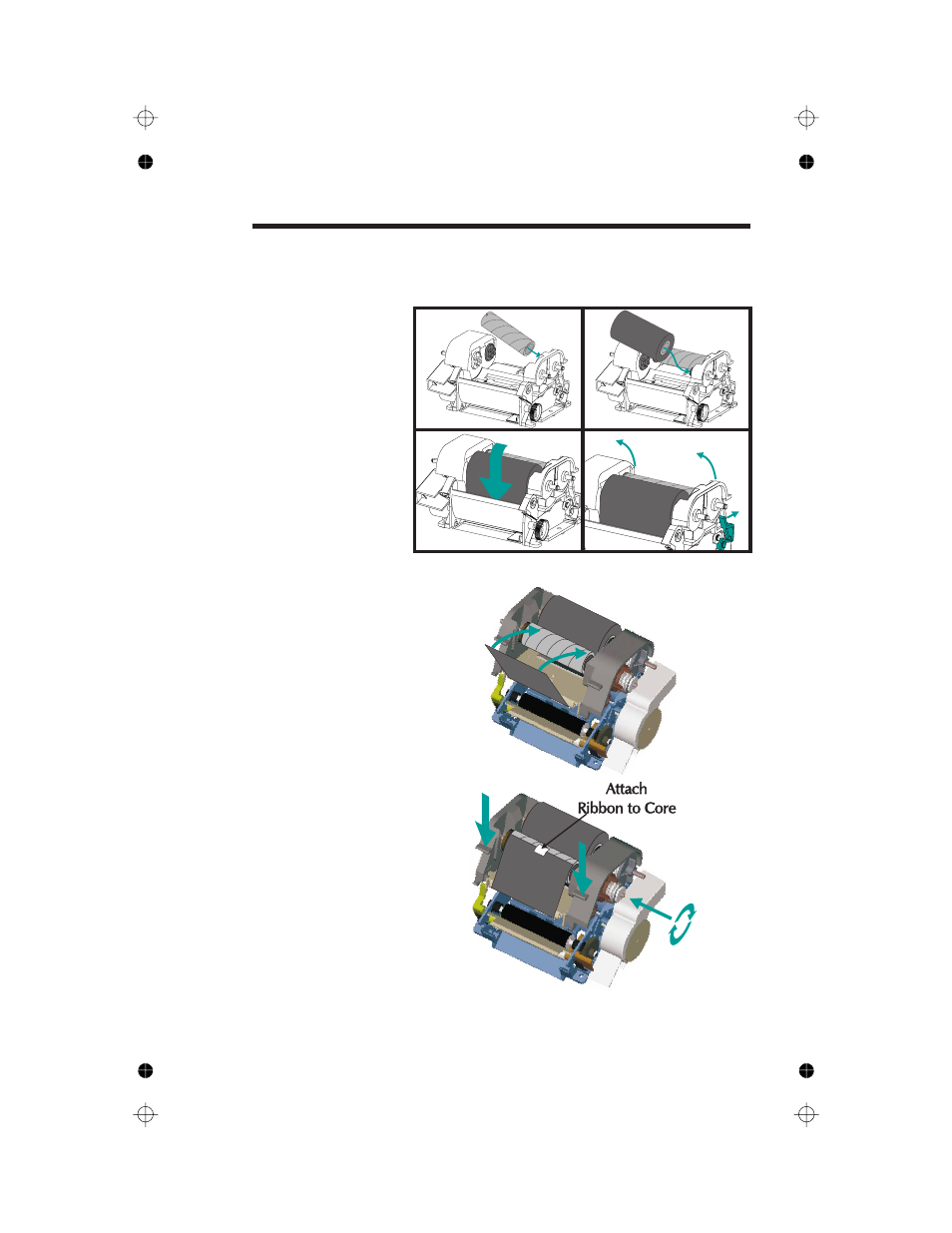

Thermal Transfer Ribbon Loading

Open Print Head

PTR2E-MAN Rev.A

15

Installation and Operation

Load Ribbon Core

Load Transfer Ribbon

Start Ribbon

Open Print Head

(Rear View)

Pull Ribbon Around

Print Head

Close
