CONNECTION
Note
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
• The quality of picture may become poor if this unit is connected to an RF modulator.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
rear of your RF modulator
(not supplied)
IN
IN
OUT
VIDEO
IN
AUDIO IN
(L1)
S-VIDEO
S-VIDEO AUDIO OUT
OUT
L
R
VIDEO
OUT
Y
ANTENNA
R
L
COAXIAL
AUDIO IN
TO TV
ANT. IN
L
R
CHANNEL
4
3
VIDEO IN
ANT. IN
Set channel 3 or 4
rear of this unit
AUDIO OUT
L
R
VIDEO
OUT
IN
OUT
ANTENNA
Set channel 3 or 4
RF coaxial cable
RF coaxial cable
VHF / UHF
antenna
RF coaxial
cable
cable TV
company
or
RCA video
cable
RCA audio cable
If your TV only has an Antenna input
(no A / V inputs), you will need a
RF modulator (NOT INCLUDED) to
connect this player.
RF modulator
AUDIO IN
R
L
VIDEO IN
CHANNEL
4
3
TO TV
TV
ANT. IN
ANT. IN

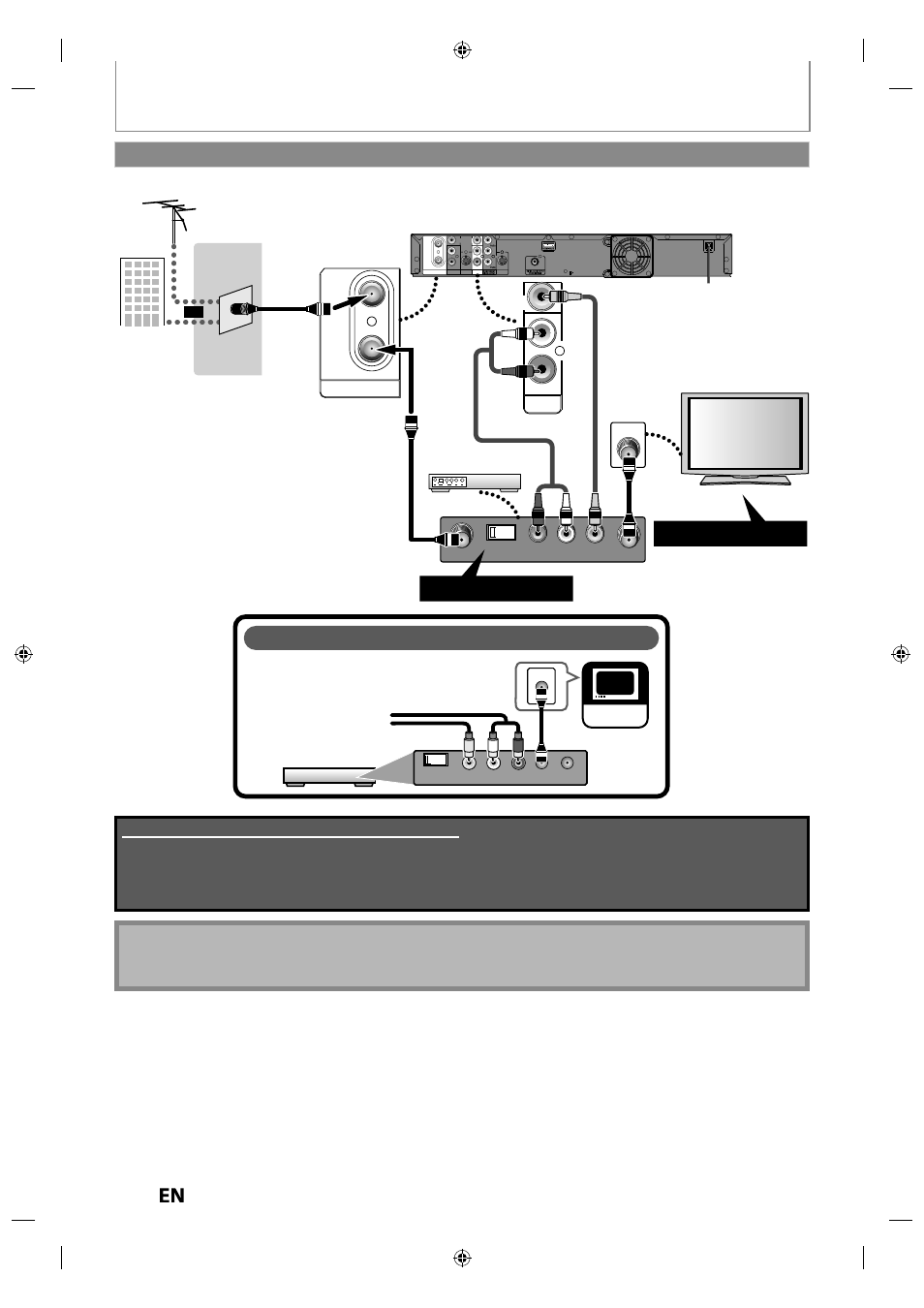

No Antenna (RF) Output!
Connecting to a TV without Audio / Video jacks
