Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
IN
OUT
ANTENNA
rear of this unit
VHF / UHF
antenna
cable TV
company
or
RF coaxial
cable
RF coaxial
cable
ANT. IN
This connection is for
TV pass through only
IN
IN
OUT
VIDEO IN
AUDIO IN (L1) S-VIDEO S-VIDEO AUDIO OUT
OUT
L
R
VIDEO OUT Y
ANTENNA
R
L
COAXIAL
AUDIO OUT
L
R
Y
COMPONENT
VIDEO OUTPUT
RCA audio cable
(Green)
(Blue)
(Red)
Y
P B
/C B
P R
/C R
COMPONENT
VIDEO IN
(Green)
(Blue)
(Red)
AUDIO IN
L
R
RCA component
video cable
VIDEO
OUT
CONNECTION

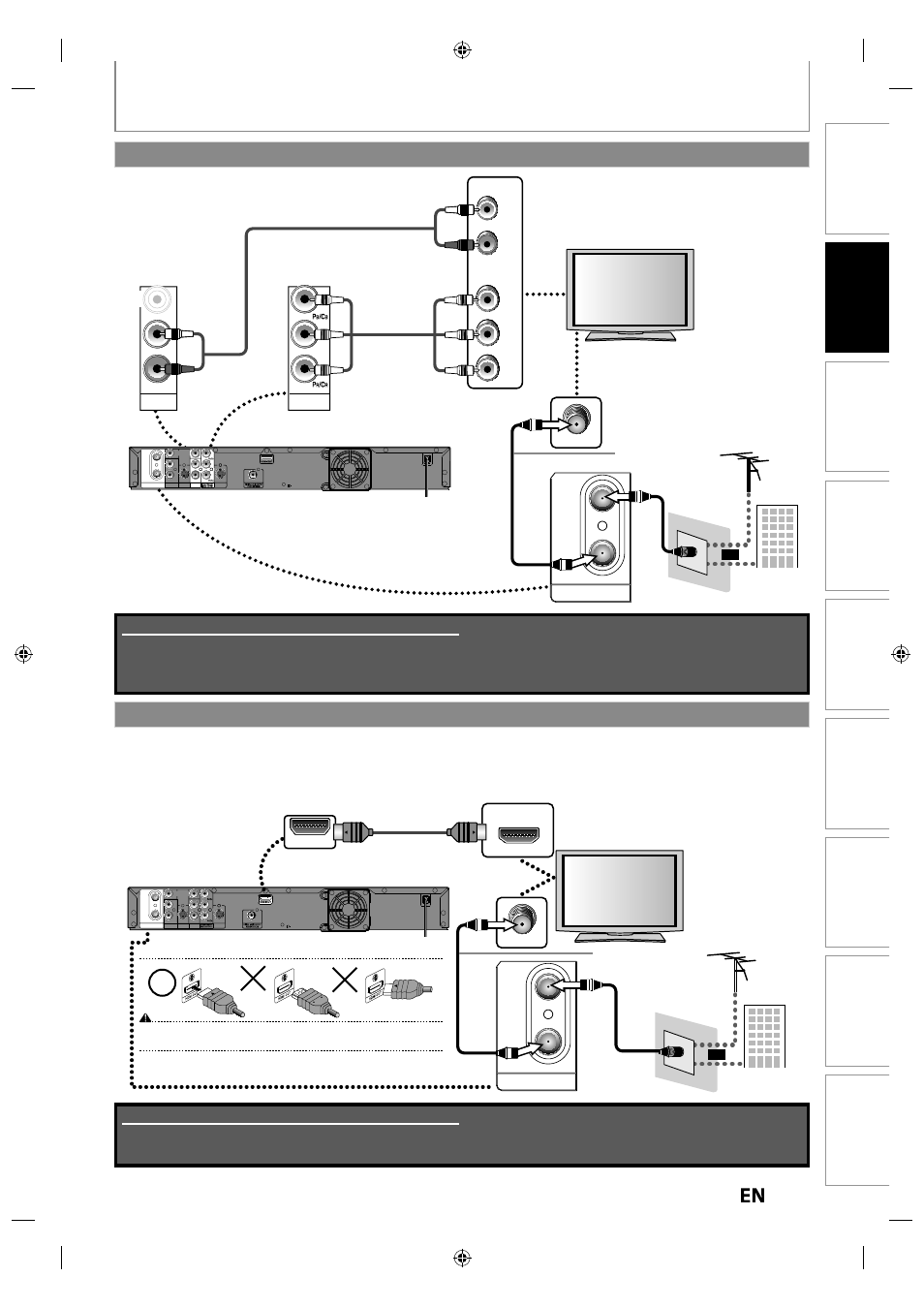

Connecting to a TV Using Component Video Out jacks
• HDMI outputs the video / audio signals without converting to analog signals.
• No audio connection is required.
• High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for better compatibility.
• Use an HDMI cable with the HDMI logo (a certified HDMI cable) for this connection.
IN
OUT
ANTENNA
HDMI OUT
HDMI IN
rear of this unit
VHF / UHF
antenna
cable TV
company
or
ANT. IN
This connection is for
TV pass through only
RF coaxial
cable
RF coaxial
cable
Do not tilt the connector when inserting it into the HDMI jack, and make sure the
shapes of the jack and the connector are matched.
IN
IN
OUT
VIDEO IN
AUDIO IN (L1) S-VIDEO S-VIDEO AUDIO OUT
OUT
L
R
VIDEO OUT Y
ANTENNA
R
L
COAXIAL
HDMI cable
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
Please purchase the rest of the necessary cables at your local store.
Connecting to a TV with an HDMI Compatible Port
