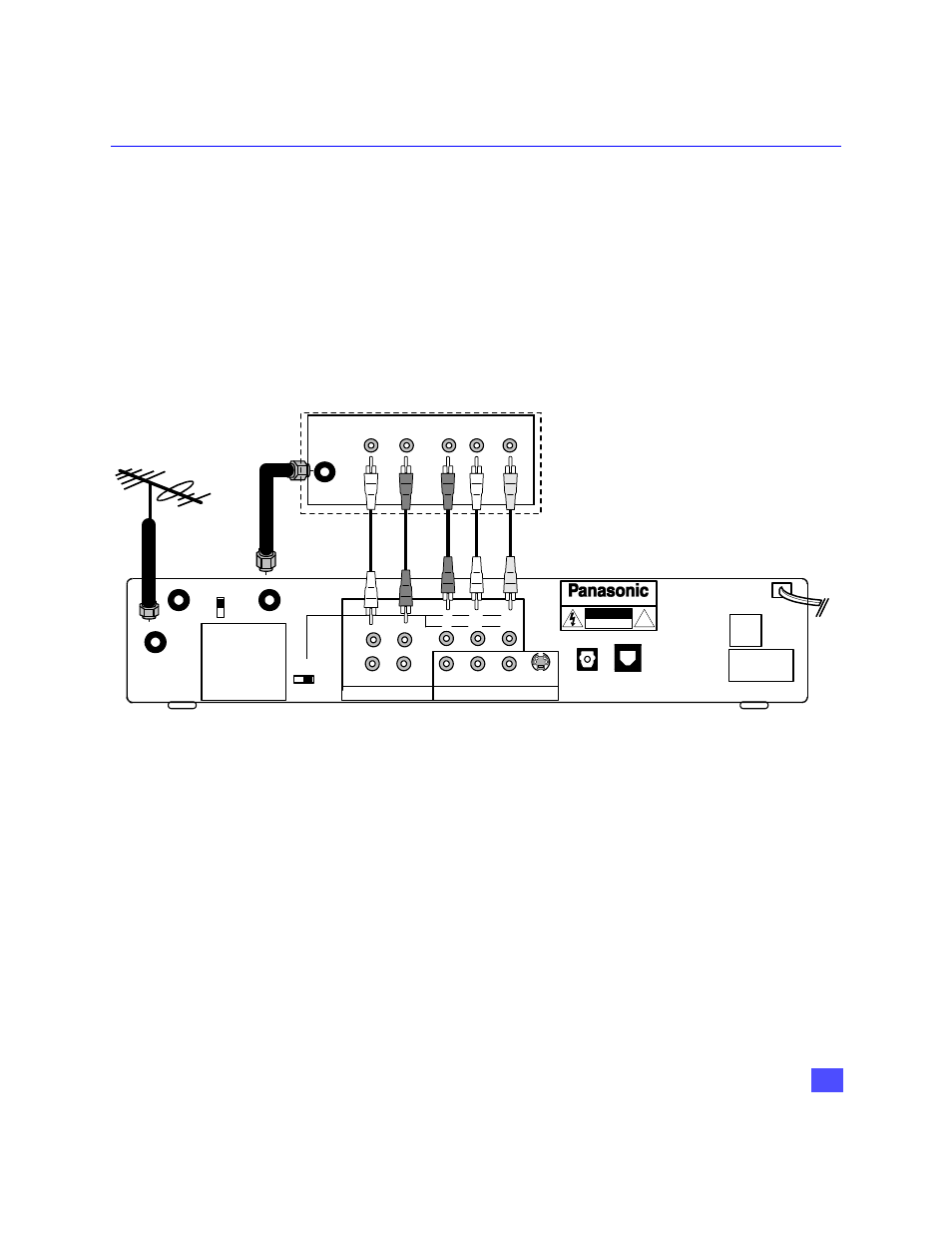

Step 3. Digital TV Reception with DTV-Compatible TV / Monitor (no satellite or
cable service)
Follow this diagram if you have a DTV-compatible TV, no satellite or cable service.
Digital and Standard terrestrial channels can be viewed by connecting the HDTV
Digital Receiver.
Procedure
• Connect the antenna cable to the ANT IN jack of the HDTV Digital Receiver.
• Connect the RF OUT signal to a DTV-compatible TV ANT IN (antenna) jack using standard
RF cables with coaxial connectors.
• Connect the component video and audio cables as shown above.
• Leave the RGB/YP
B
P
R
switch in the YP
B
P
R
position.
• Select the video out mode according to the capability of your DTV-Compatible TV.
