4.5 Mounting the camera in the housing:
Replace the lid and make sure the lever is perpendicular to the side wall of the housing. Lock the
lid by press down the lever and turn until the lever is parallel to the side wall of the housing.
After replacing and locking the lid, make a final visual inspection of the main O-ring for
contamination.
Note: If the O-ring is in good contact, a thin black line, about 0.5 to 1mm in width should be
visible, where the O-ring is in contact with the lid. Follow this line all the way round the
edge of the seal, as a final check that the seal is good

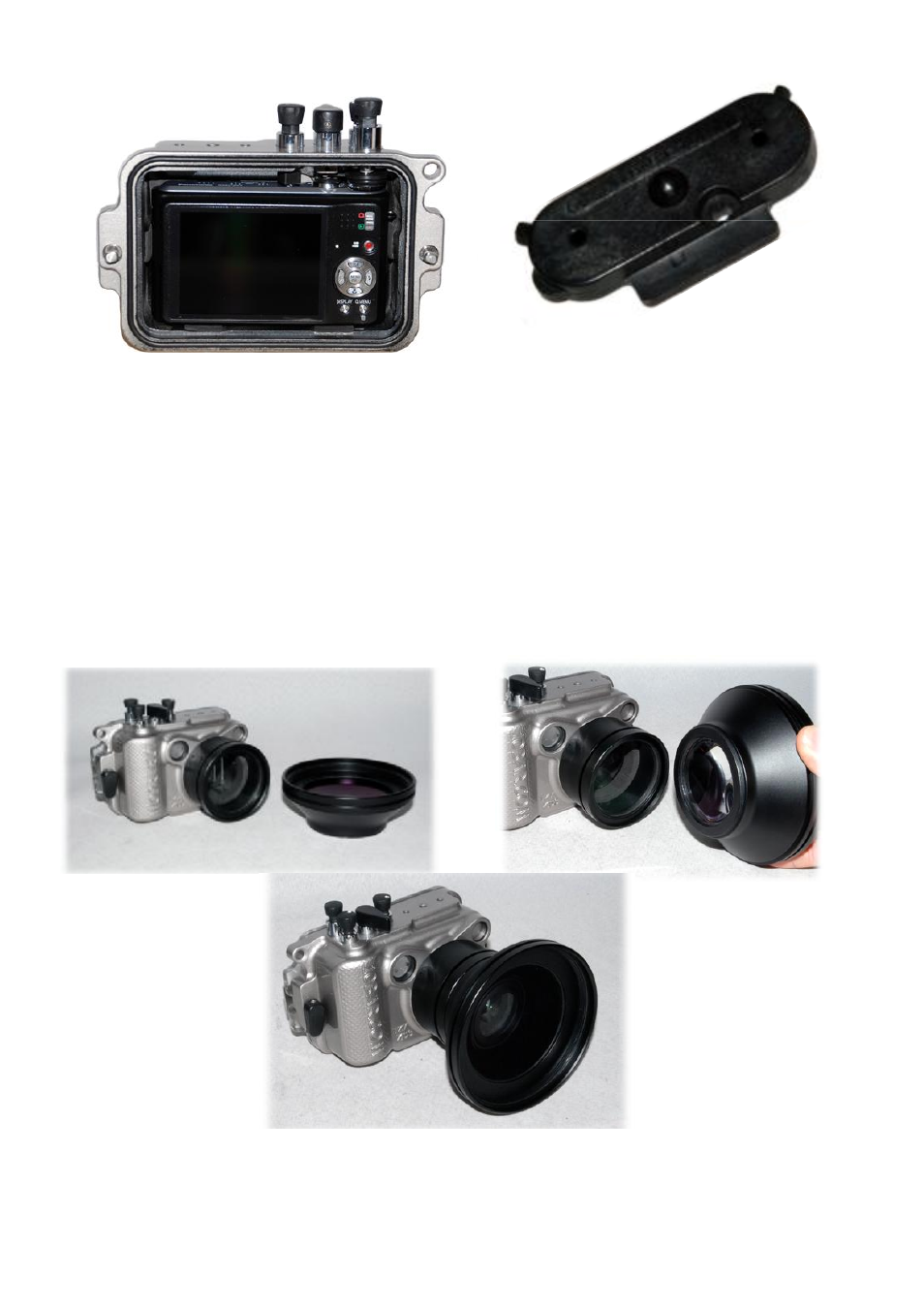

4.6 Mounting the camera lens and ports
The housing is now ready for the dive.
Important !!!
Check the o-ring seal on the lid and should see an even and continuous
pressed o-ring path of about 0.5 – 1 mm thick
