To Adjust the Stability Foot:
The stability foot is located centrally underneath the weight stack
frame and should rest evenly on the floor. If the foot is not resting
firmly on the floor, perform the following procedure.
Note: Adjustments to the stability foot must be completed before the
shroud is attached.
1. Loosen the stability foot bolts using a 1” open-end or box wrench
and a ⁹ ₁₆” socket wrench.
2. Pull the stability foot downward so that it rests firmly on the floor.
3. Tighten the stability foot bolts using tools from step one.
Important: Once all foot adjustments are complete, gently rock the
machine. If there is any movement, readjust the stability foot.

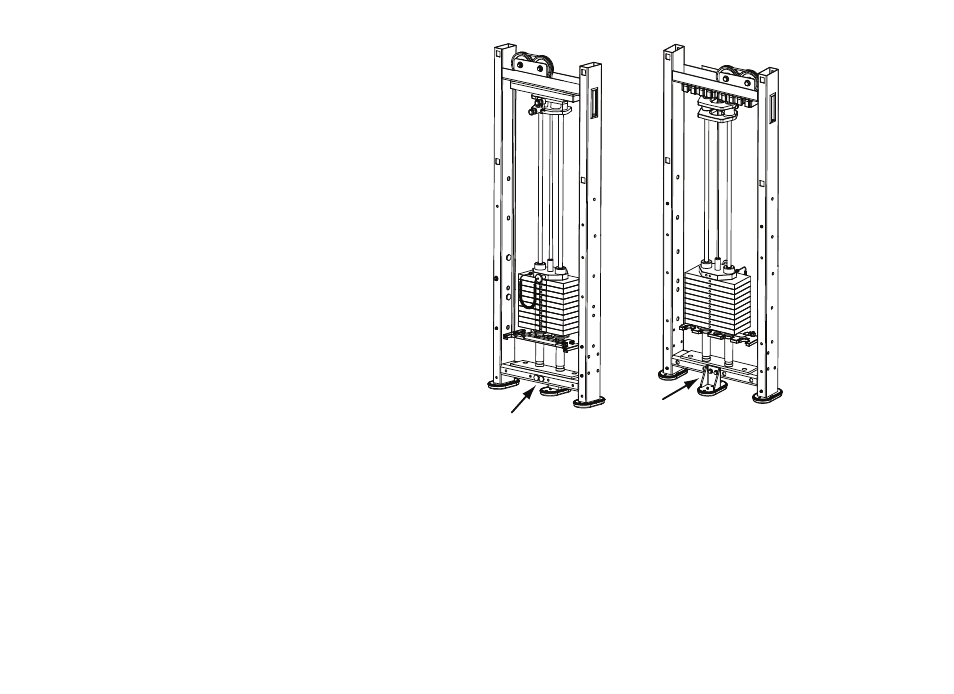

Figure 5: Location of stability foot and mountings
