a VCR IN LINE 1 (VIDEO/AUDIO (Left/Right))
Connect the audio/video output of an external source
(Audio system, TV/Monitor, VCR, Camcorder).
b DVD/VCR OUT (VIDEO/AUDIO (Left/Right))
Connect to a TV with video and audio inputs.
c COMPONENT/PROGRESSIVE SCAN VIDEO
OUT (Y Pb Pr) (DVD EXCLUSIVE OUT)
Connect to a TV with Y Pb Pr inputs.
d AUDIO OUT (Left/Right)
(DVD EXCLUSIVE OUT)
Connect to a TV or other equipment with audio inputs.
e AC Power Cord
Plug into the power source.
f COAXIAL (DIGITAL AUDIO OUT jack)
(DVD EXCLUSIVE OUT)
Connect to digital (coaxial) audio equipment.
g S-VIDEO OUT (DVD EXCLUSIVE OUT)
Connect to a S-Video Input on TV.
a b c d e
f

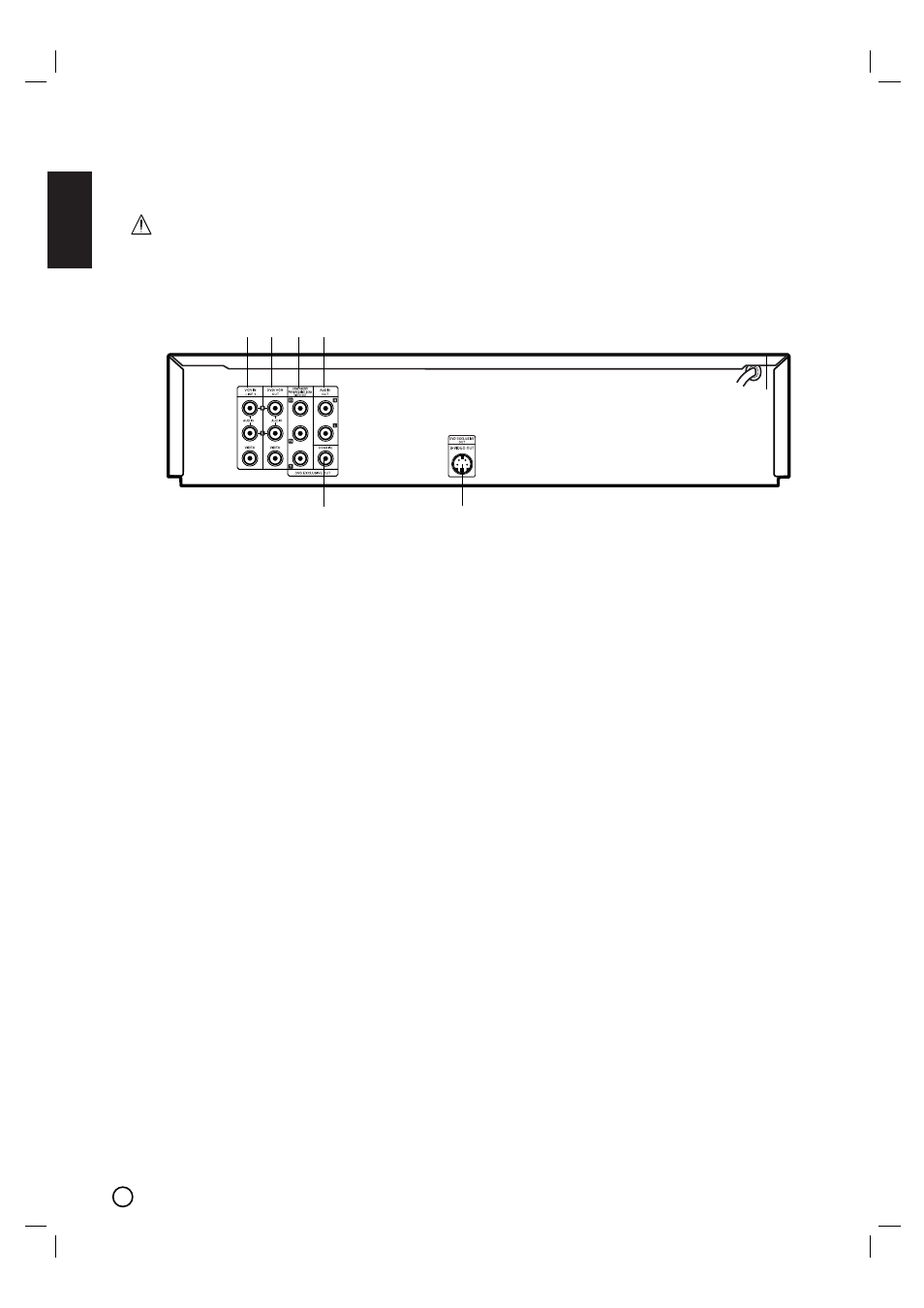

Rear Panel
Caution
Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
g
