Model 1001RCM13448C Strap Settings
Figure 5 shows the strap location for the Model 1001RCM13448C (M/34)
rear card. This strap determines whether Signal Ground and Frame
Ground will be connected.

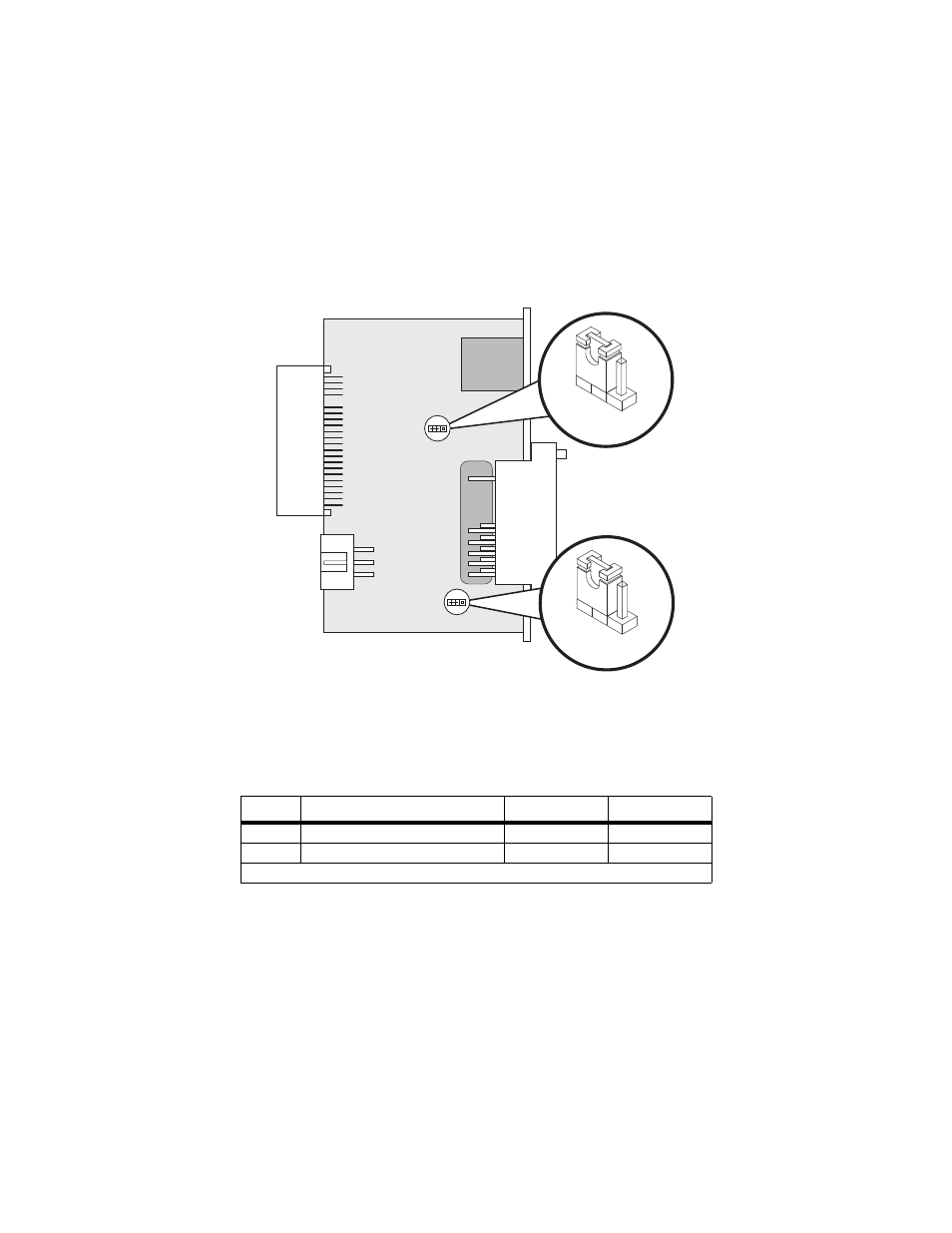

Figure 5. 1001RCM13448C strap locations.
Table 1 provides an overview of interface strap functions for the rear
interface cards. Following the table overview are detailed descriptions of
each strap’s function.
Table 1: Interface Card Strap Summary
Strap Function Position 1&2 Position 2&3
JB3 DTE Shield (Pin A) & FRGND Connected* Open
JB4 FRGND & SGND (Pin B) Connected* Open
* Indicates default setting
1
3
JB3
1
2
3
JB4
