Page 16: Installation

15
Installation

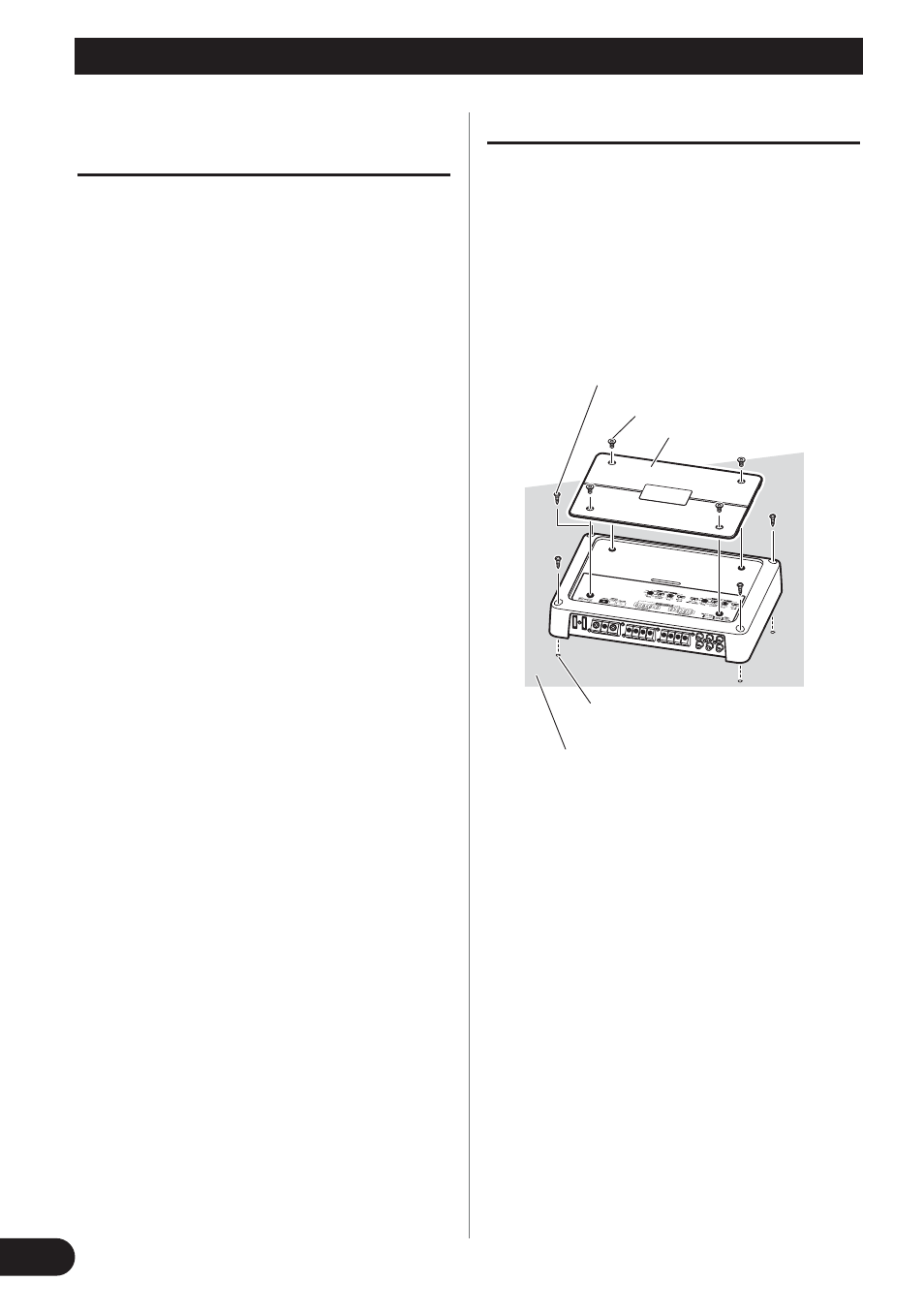

Example of installation on the
floor mat or on the chassis
1. Place the amplifier where it is to be
installed. Insert the supplied tap-
ping screws (4 mm
× 30 mm) into
the screw holes. Push on the screws
with a screwdriver so they make
marks where the installation holes
are to be located.
2. Drill 2.5 mm (1/8 inch) diameter
holes at the point marked, and
install the amplifier, either on the
carpet or directly to the chassis.
Replacing the top cover
1. Align the unit and top cover, and
insert the screw.
• The cover can be installed in the desired
direction to match to the amplifier.
2. Tighten the screw with a 4 mm
hexagonal wrench.
Tapping-screws (4 mm
× 30 mm)
Floor mat or chassis
Drill a 2.5 mm diameter hole
Screw
Top Cover
