11
12 CQ-VD6505W
English
Electrical Connections
(continued)
CHANGER IN
BATTERY 5 A
ACC
F U S E 1 5 A F U S E 1 5 A F U S E 1 5 A
8 m m M A X
> P B T < J A M - S A a

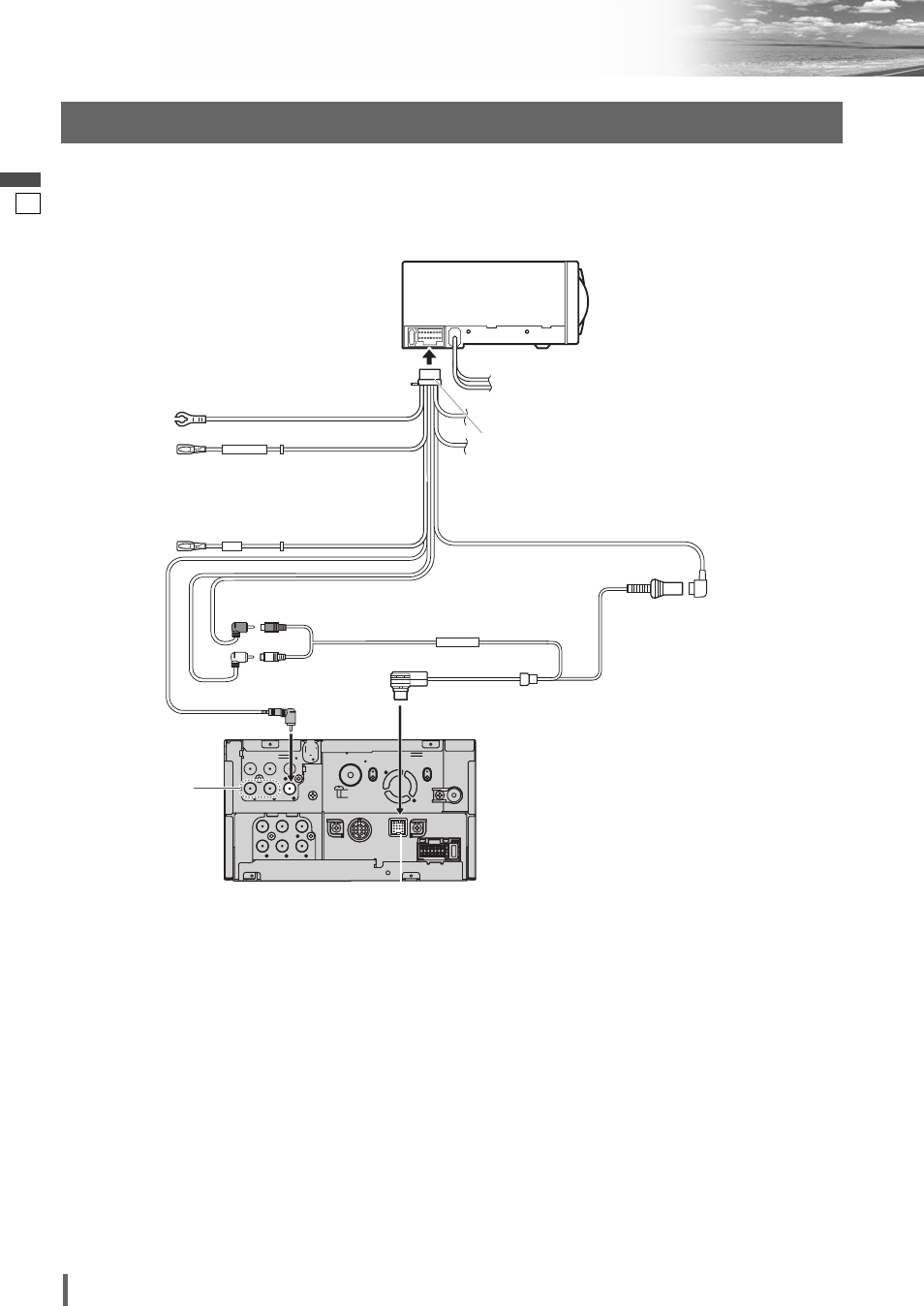

Connection with DVD Changer (CX-DH801W)
CQ-VD6505W
(Rear)
RCA Cord
(Video)
(Yellow)
(L) (White)
(R) (Red)
DIN Connector
DIN Cord (Black)
DVD Changer
CX-DH801W (option)
Battery Lead
(Yellow) To the car battery, continuous +12 V DC
Power Lead (Red) (not used)
(not used)
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
Note:
¡ Refer to the operating instructions for the connected devices, in addition.
Power Connector
(Supplied with CX-DH801W)
Conversion Cable for DVD/CD Changer
(CA-CC30N, option)
System-up
connector
