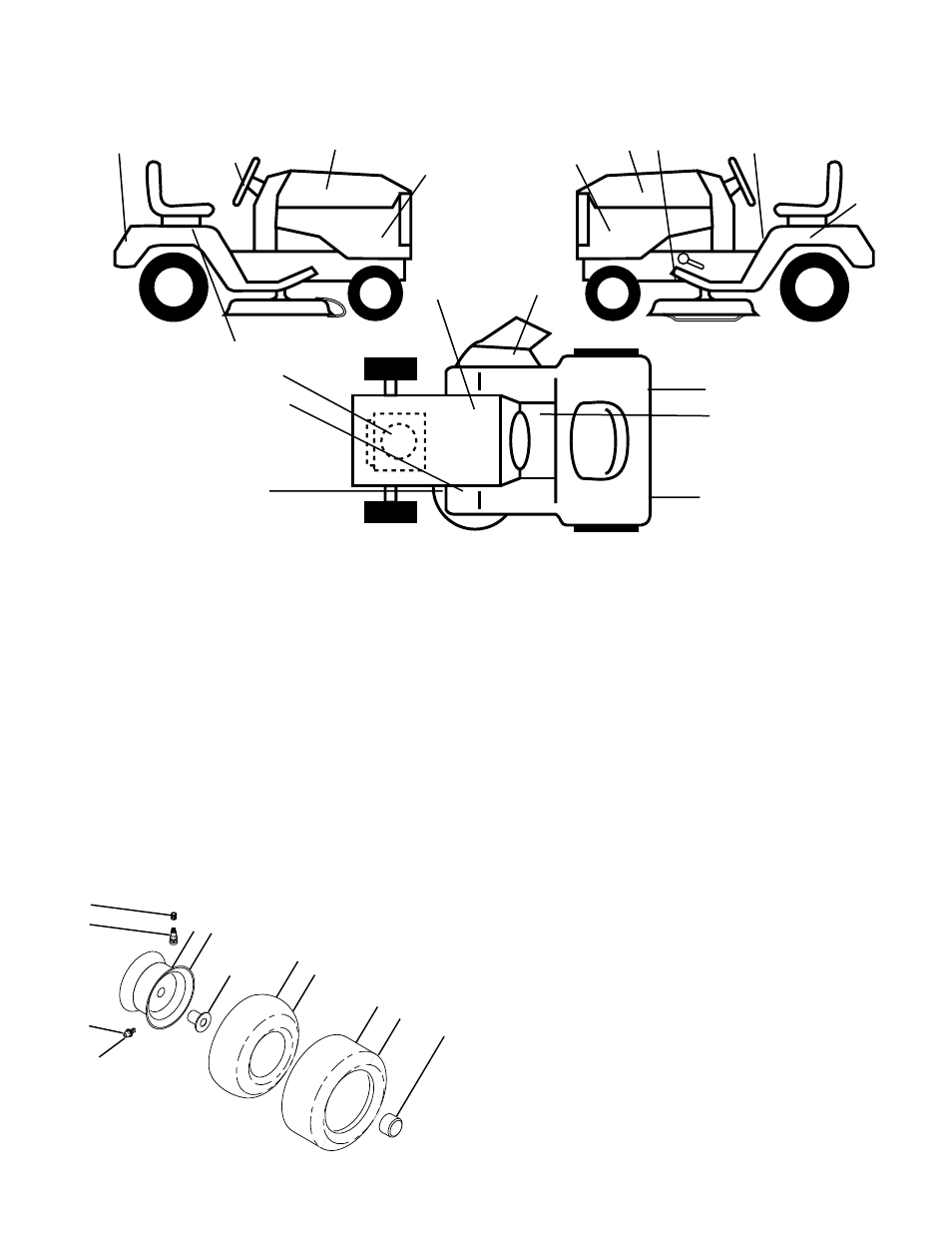

REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046A
DECALS
23
3
9
14
5
4 12
23
5
10
19
16
1
11
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 176674 Decal, Dash
2 170851 Decal, Engine
3 176272 Decal, Hood, RH
4 176273 Decal, Hood, LH
5 176652 Decal, Hood Side PNL
9 172740 Decal, Fender
10 157140 Decal, Danger
11 101892X Decal, Clutch/Brake
14 160397 Decal, V-Belt Schematic
15 172743 Decal, Ins. Whl. Strg.
16 170563 Decal, Housing Mower, Warning
19 145005 Decal, Battery
23 106202X Reflector, Taillight
29 176650 Decal, Fender
30 172272 Decal, Replacement Parts
- - 138311 Decal, Handle Lift (Lift Handle)
- - 133671 Pad Footrest
- - 177271 Manual, Owner's (English)
- - 177272 Manual, Owner's (French)
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
6
12
2
1
3 11
4
10
5
9
8
7
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106228X427 Rim Assembly, Front
4 8134H Tube, Front (Service Item Only)
5 106230X Tire, Front
6 278H Fitting, Grease (Front Wheel nly)
7 9040H Bearing, Flange (Front Wheel Only)
8 104757X Cap, Axle (Front Wheel Only)
9 105588X Tire, Rear
10 7154J Tube, Rear (Service Item Only)
11 106277X427 Rim Assembly, Rear
12 6856M Fitting, Grease
- - 144334 Sealant, Tire (10 oz. Tube)
